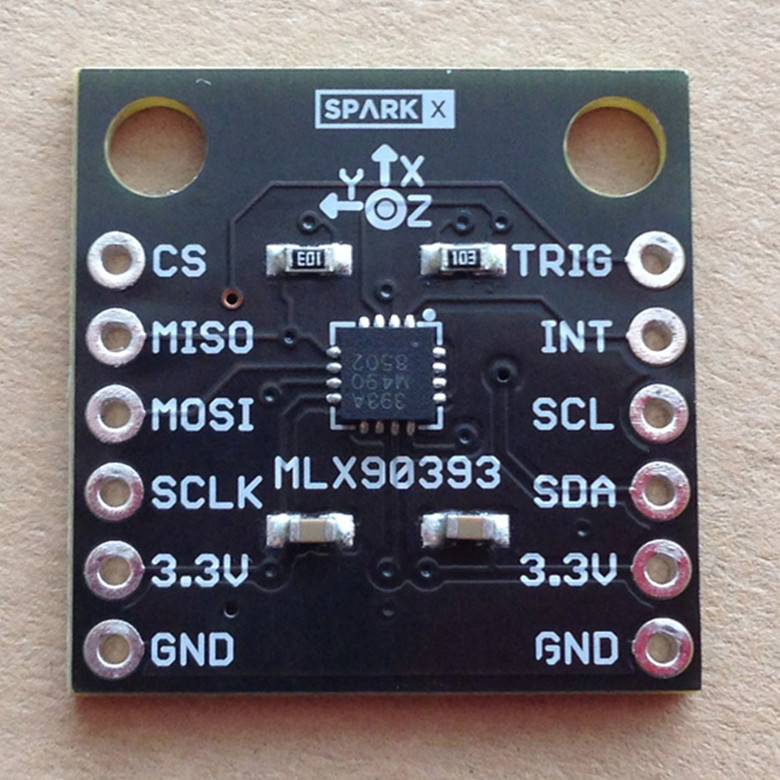

MLX90393 3-axis Magnetometer Digital 3D Hall Sensor Displacement Angle Rotate Module

MLX90393 3-axis Magnetometer Digital 3D Hall Sensor Displacement Angle Rotate Module

CHIP Description:
The MLX90393 can operate in 3 modes.

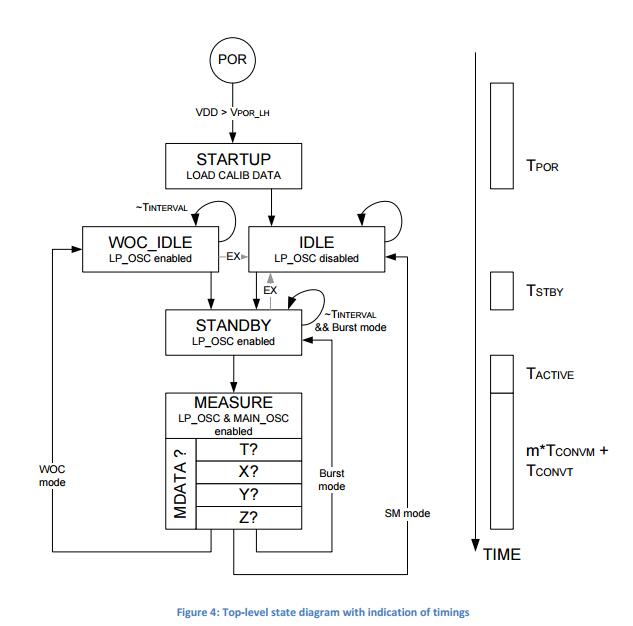

- Burst mode The ASIC will have a programmable data rate at which it will operate. This data rate implies autowakeup and sequencing of the ASIC, flagging that data is ready on a dedicated pin (INT/DRDY). The maximum data rate corresponds to continuous burst mode, and is a function of the chosen measurement axes. For non-continuous burst modes, the time during which the ASIC has a counter running but is not doing an actual conversion is called the Standby mode (STBY).
- Single Measure mode The master will ask for data via the corresponding protocol (I2 C or SPI), waking up the ASIC to make a single conversion, immediately followed by an automatic return to sleep mode (IDLE) until the next polling of the master. This polling can also be done by strobing the TRG pin instead, which has the same effect as sending a protocol command for a single measurement.
- Wake-Up on Change This mode is similar to the burst mode in the sense that the device will be auto-sequencing, with the difference that the measured component(s) is/are compared with a reference and in case the difference is bigger than a user-defined threshold, the DRDY signal is set on the designated pin. The user can select which axes and/or temperature fall under this cyclic check, and which thresholds are allowed.

Parameter:
- Resolution:0.161μt
- The max scale:44000μt

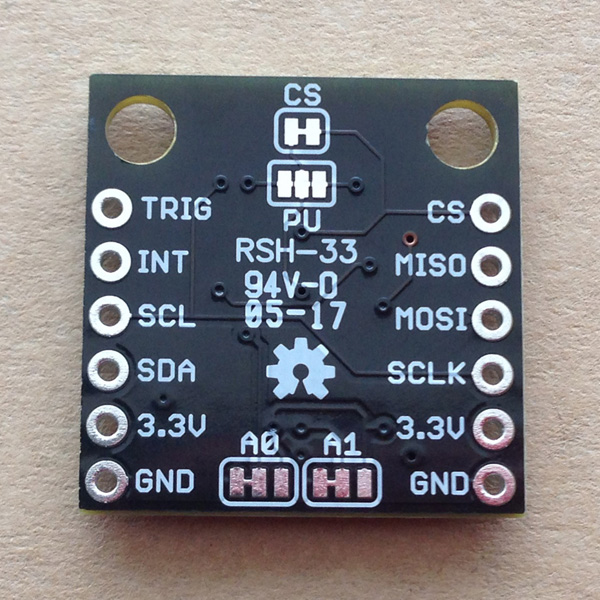

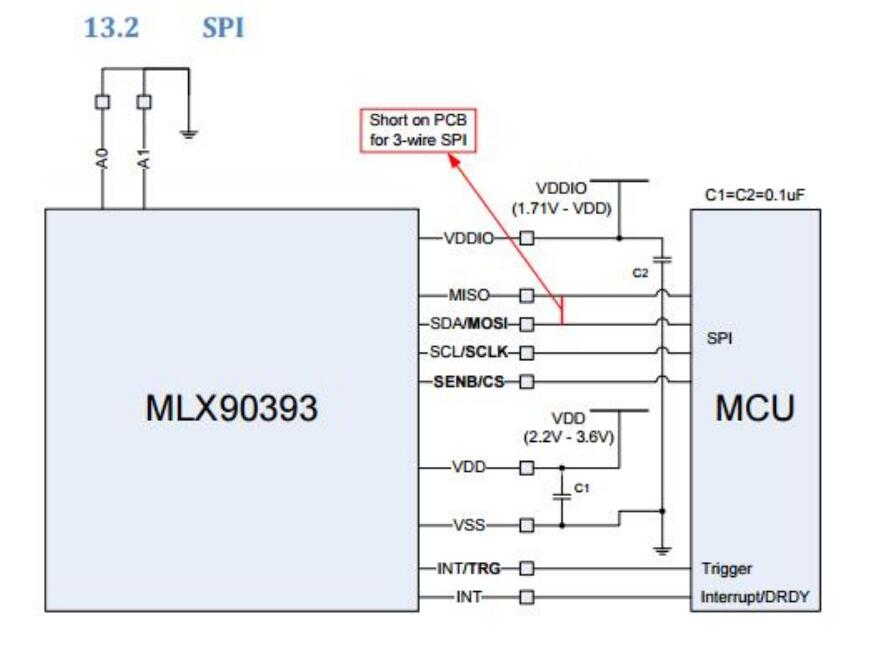

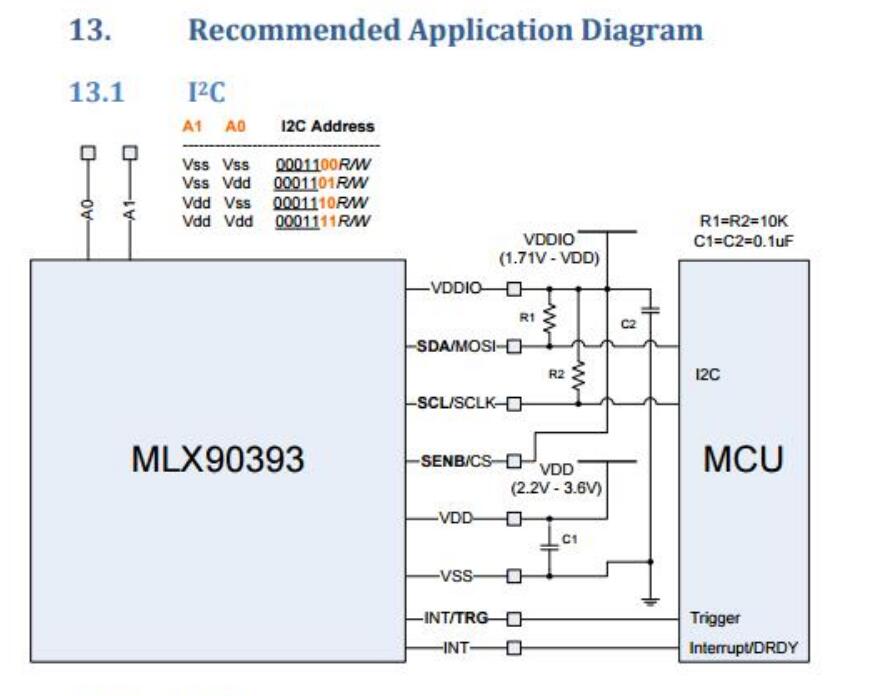

- I2C or SPI interface (optional Jumper cable)
- The users can select I2C address.2 pcs 4-IP sensor I2C bus for 1 hour.

Package List:
- 1 x MLX90393 module
- 1 x Drive program
- 1 x Schematic diagram
- 1 x Chip datasheet
