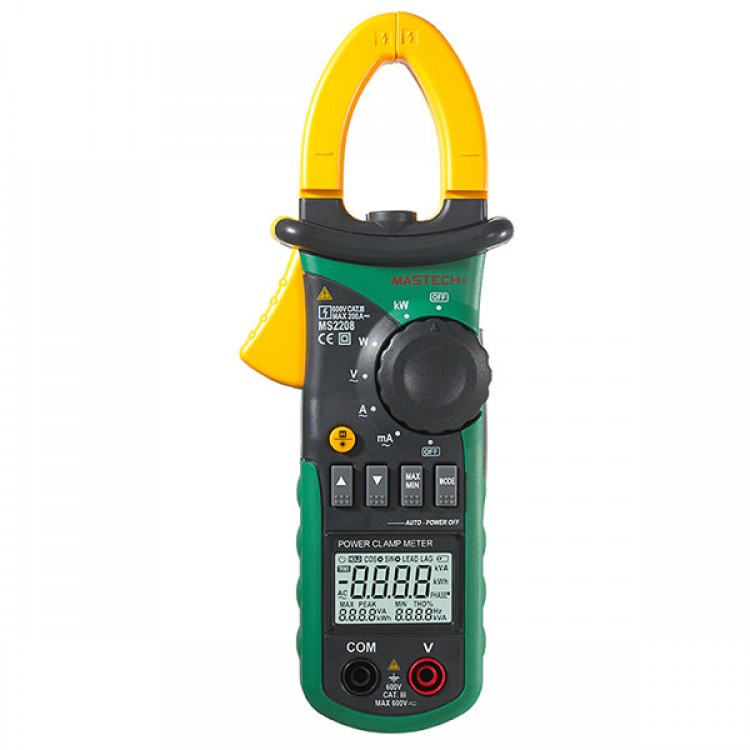

• MS2208 Harmonic Power Factor Clamp Meter Multimeter TRMS KVA KVAr PF

MS2208 Harmonic Power Factor Clamp Meter Multimeter TRMS KVA KVAr PF

Availability: In stock, usually dispatched in 1 business day

  • Price:$214.69
  • Price in reward points: 2147 Reward Points: 21
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $210.40 $206.10 $199.66 $191.07 Contact US
Quantity:

MS2208 Harmonic Power Factor Clamp Meter Multimeter TRMS KVA KVAr PF

Description
MS2208 harmonic power clamp multimeter main features as below:
It can be used for testing power, voltage, current, peak value, phase, frequency, power factor, phase angle, and reaction factor, etc. of single-/three-phase circuit.
Automatic phase sequence testing for 3-phase measurement.
True effective value measurement: accurate measurement even with serious distortion in current waveform.
Adopts Low-consumption & high-speed single-chip microprocessor and sophisticated algorithm, so the test results can be obtained rapidly and precisely, and up to 20 harmonics and distortion value can be measured
Hand-held, clamp-type structure, light weight, convenient for carry-on.
It is with both functions of digital current testing and power testing
It is comprised of three channels including voltage, current, and power as well as a micro single chip system, and it is equipped with a powerful software for measurement and data processing functions.
It can measure, calculate, and display voltage, current, power factor, apparent power, passive power, frequency, harmonic parameters, with stable performance and operation convenience.
It is especially suitable for the measurement and examination of on-site power equipment and power-supplying circuits.
It is with hand-held clamp structure, small volume, and light weight, it can be easily carried by the user, which makes it easy and fast for doing measurement.

MS2208 technical details as below:
Model    MS2208
Safety Standard    IEC/EN61010-1 1000 CAT II, 600V CAT III
Operating Altitude    2000M CAT III 600V, 3000m CAT II 600V
Storing Altitude    12000m
Display    5999 counts,LCD
Range Selection    Fully automatic range selection
Frequency Detection    Automatic(when harmonic is serious, it is better to use Manual setting for testing frequency so as to assure the reading stability
Over-range Display    "OL"
Data Hold    "HOLD" is shown on LCD
Power Consumption    250mW
Temperature Coefficient    0.05x(specified accuracy)per degree
Electromagnetic Compatibility    In an RF field of 3V/M, accuracy=specified accuracy, otherwise accuracy is un specified
Operating Temperature    0 ~ 40 degree
Storage Temperture    -2 ~ 70 degree
MAX. diameter of clamp    dia.26mm
Dimension    208mm x 78mm x 35mm
Power Supply    AAA,1.5Vx3 (Not Included)
Net Weight    350g(with battery)
Technical Parameters    Range        Resolution    Accuracy
AC Voltage RMS    10V~600V        0.1V        (1.0%+5)
AC Current RMS    2mA~3999mA    0.01mA        (2.0%+5)
4A~200A        0.01A        (2.0%+5)
Single-phase Active Power    0.01W~120KW    0.01W        (3.0%+5)
Power Factor    0.3~1 Capacitive    0.001        (3.0%+3)
0.3~1 Inductive    0.001        (1.2%+1)
Passive Power    0.01W~120KW    0.01V Ar        (3.0%+5)
Frequency    30Hz~1kHz    0.1Hz        (0.5%+1)
Harmonic Test    Harmonic Number    Accuracy of Harmonic Voltage
1        (3.0%+10)
2~6        (3.5%+10)
7~8        (4.5%+10)
9~10        (5.0%+10)
11~15        (7.0%+10)
16~20        (10%+10)

MS2208 package include as below:
MS2208 clamp power meter
Test leads & alligator clips.
User manual
Carrying pouch

Note: we also have MS2203, MS6612, MS6818, MS6812, MS8211D , MS8910, MS5908, MS8236, MS8910, MS8211, MS8233C, MS8260F
