MT50 Remote Meter for Solar Charge Controller Regulator RJ45 Cable

MT50 Remote Meter for Solar Charge Controller Regulator RJ45 Cable

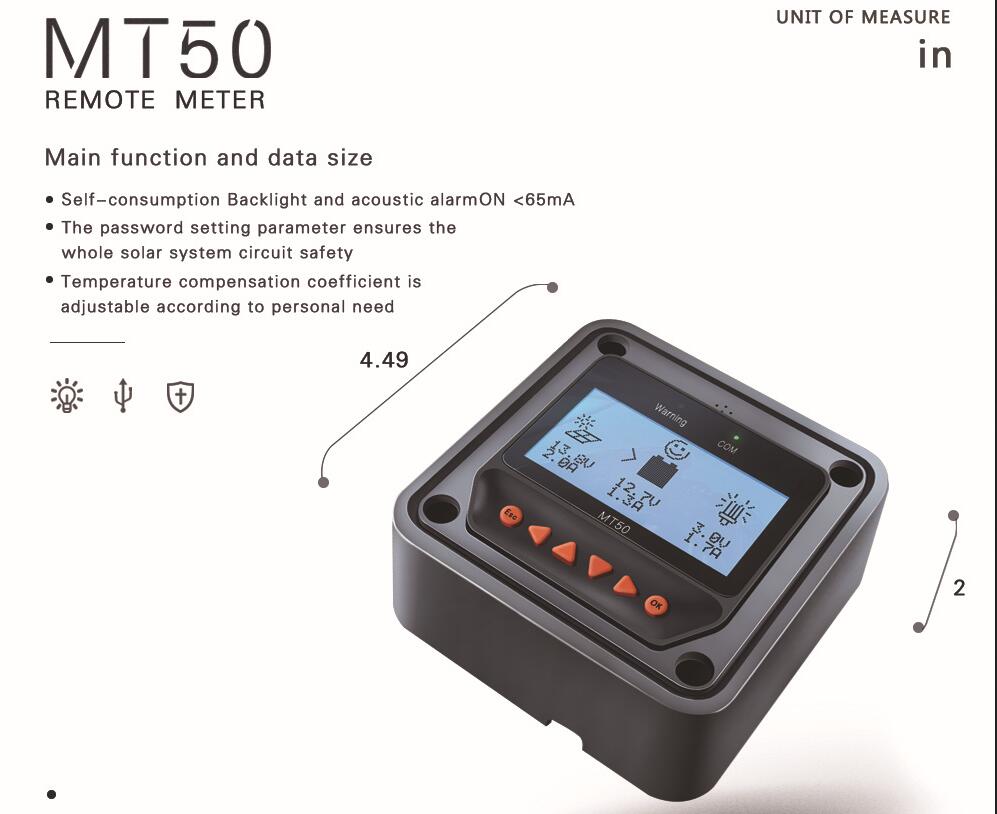

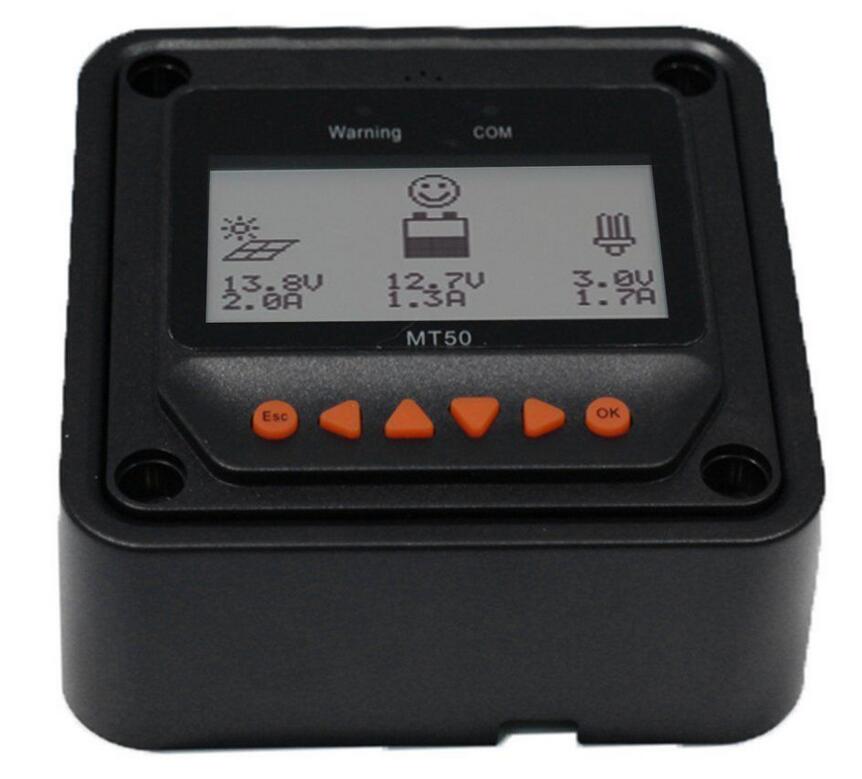

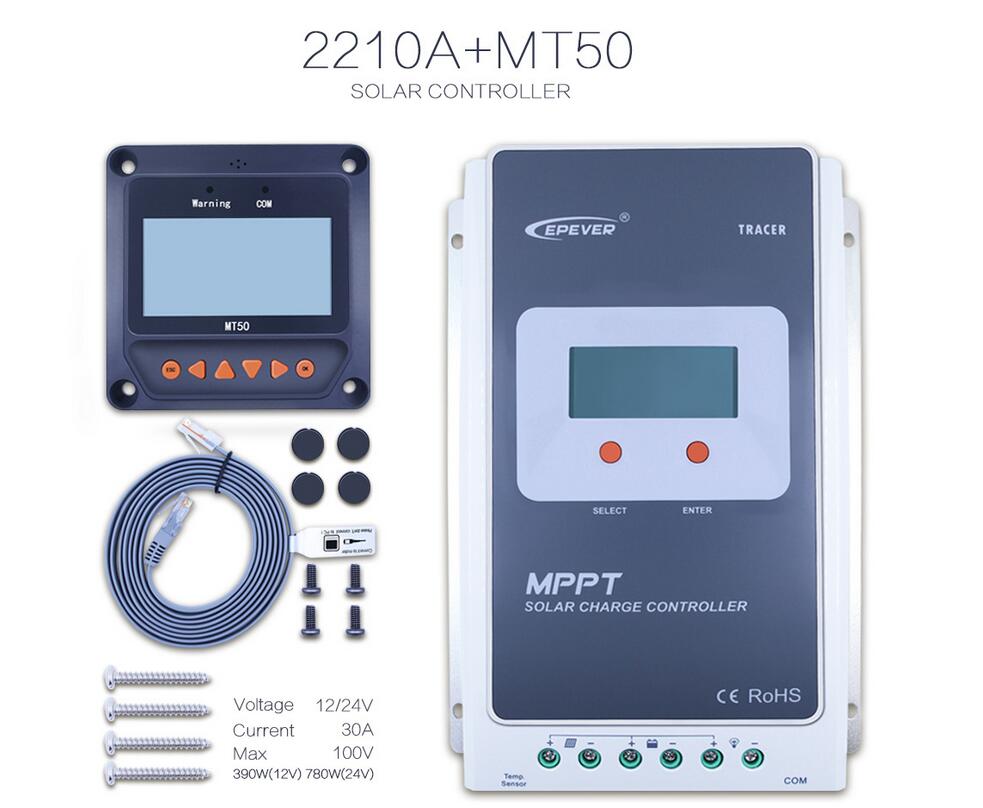

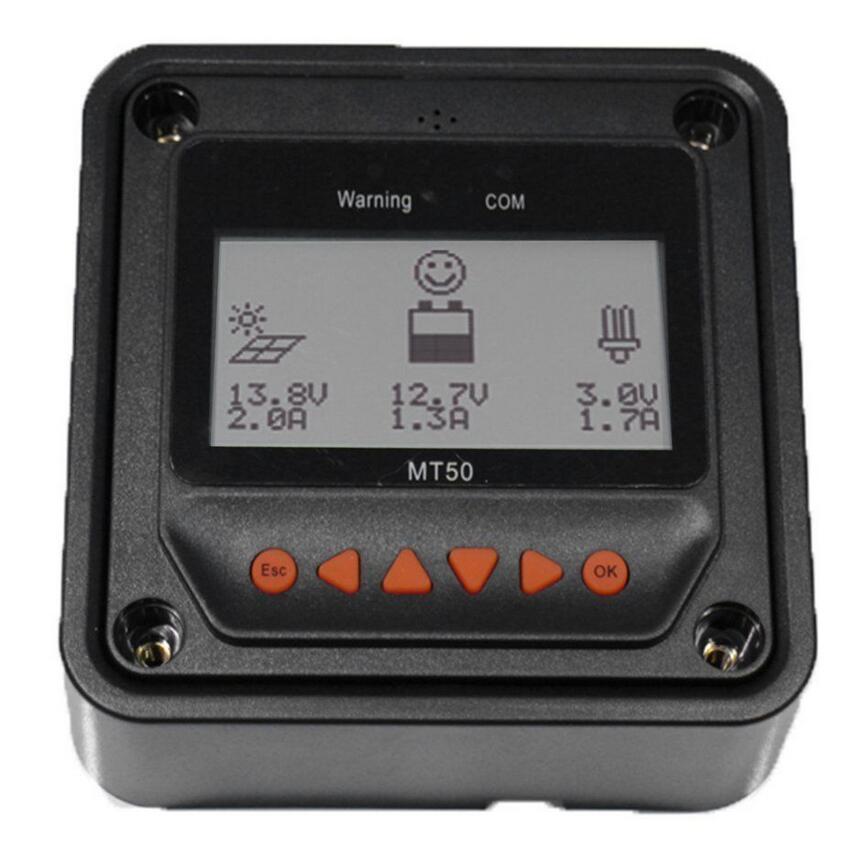

Description:MT-50 is a new-generation remote meter for Viewstar controllers that features an LCD display and convenient navigational keys; it can support not only the latest communication protocols, but also the standard voltage technology for solar controllers. The meter will allow for real-time monitoring of the operational data and the working status of a controller, as well as be able to browse and modify the device, charge control, and load control parameters.

Features:
- Automatic identify  the controller, and display the type, model and relevant parameter data
- Large-screen multifunction LCD  displays all the operational data and system working status  in digital, graphic and textual forms
- With six navigation function keys, the  operation is direct, convenient and rapid
- Real-time energy statistics recording
- Both data and data flowing on the same lead ,no need for  external power
- Real-time monitoring and acoustic alarm of failure information of the controller
- Longer communication distance based on RS485

More powerful function Via MT50:
- Diversified load control modes:manual,light ON/OFF,Light ON+ Timer,Time Control
- Battery type selection: Gel,sealed,flooded and USER type
- Real-time monitor
- Programmable parameters
- Energy display function

Specifications:
- Self-consumption:Backlight and acoustic alarm on<65mA;Backlight on<23mA;Backlight off<15mA

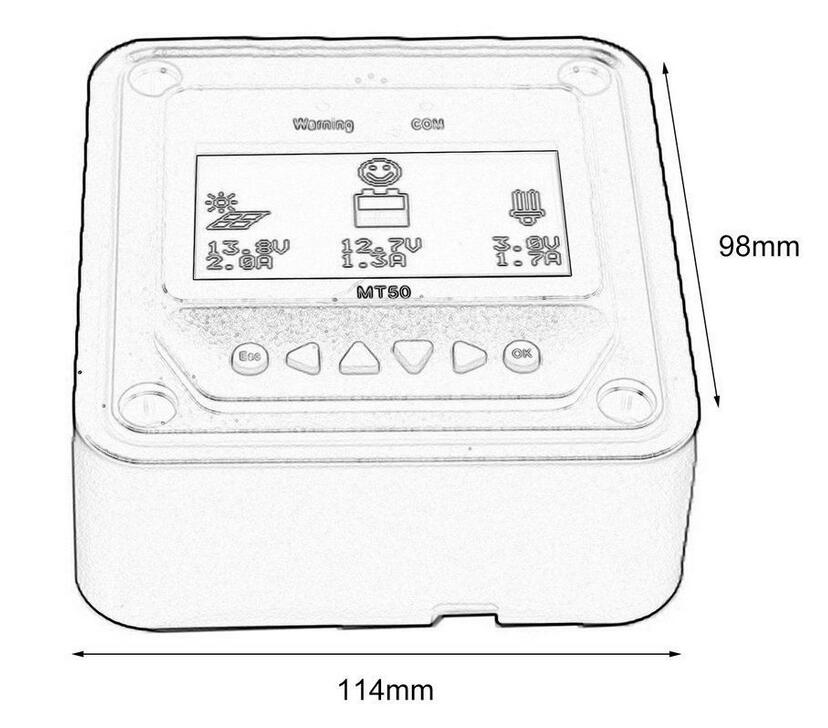

- Faceplate dimensions:98×98 mm/3.86×3.86 in
- Frame dimensions:114×114 mm/4.49×4.49 in
- Connector type:RJ45
- Meter cable:Standard 2m, max .50m
- Meter weight:0.190 Kg
- Ambient Temperature:-20℃~+70℃/-4℉~158℉

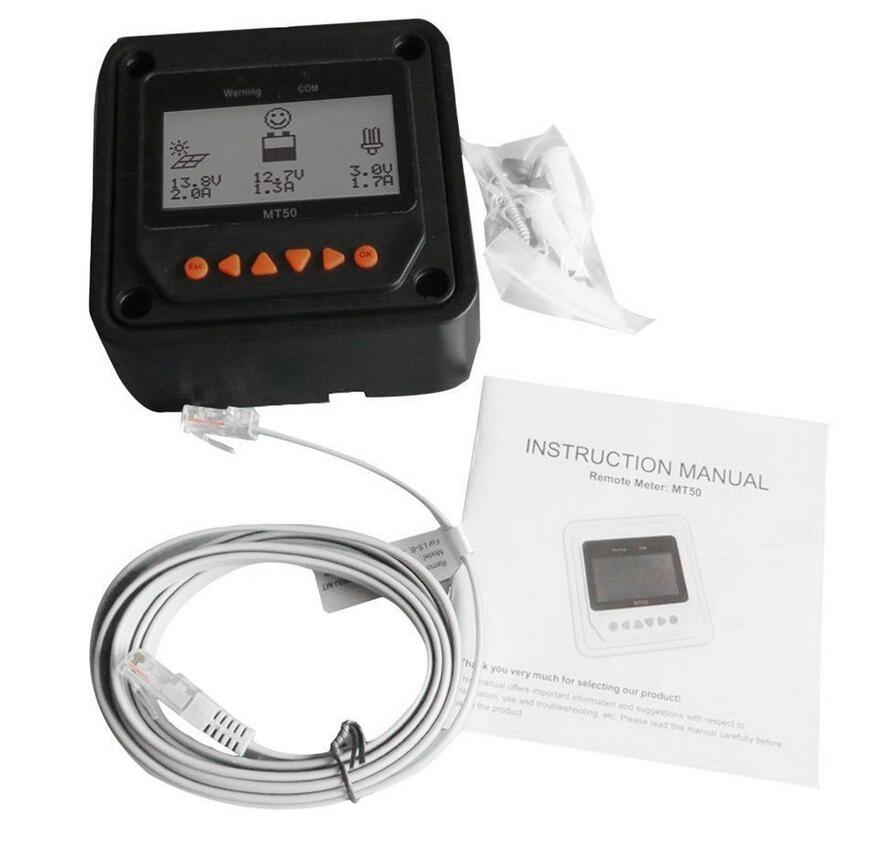

Package List:
- 1 x MT-50 Remote Meter
- 1 x Screws

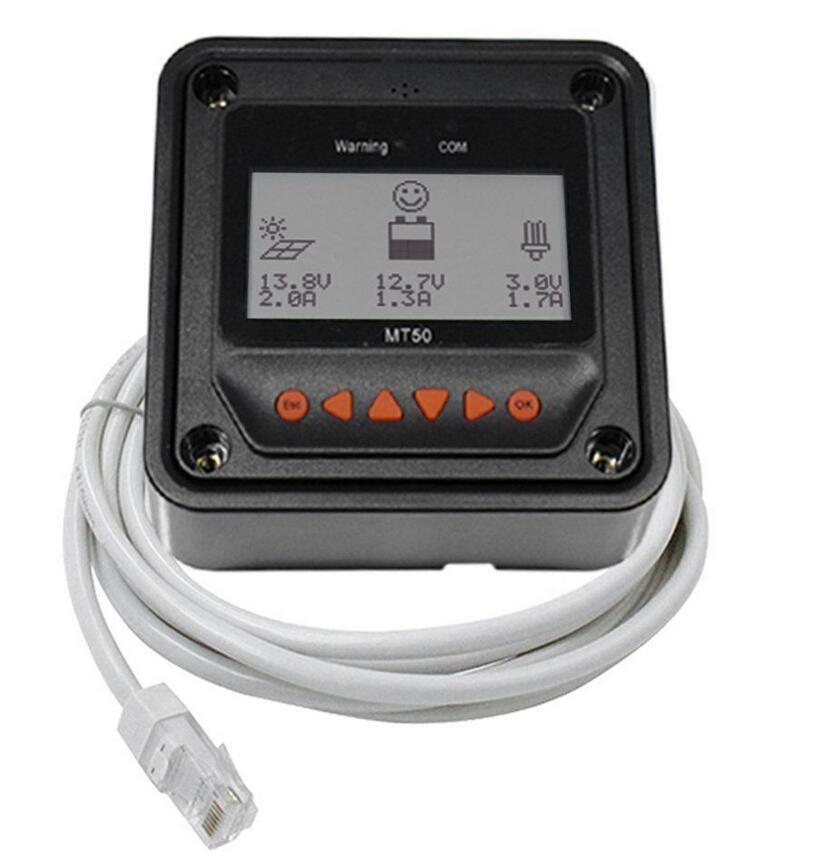

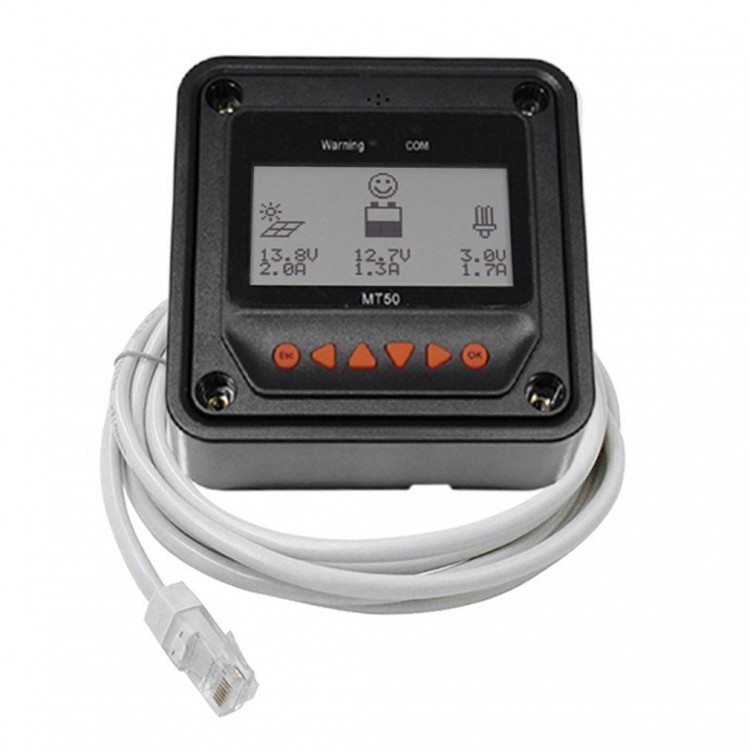

- 1 x Cable
- 1 x User manual
