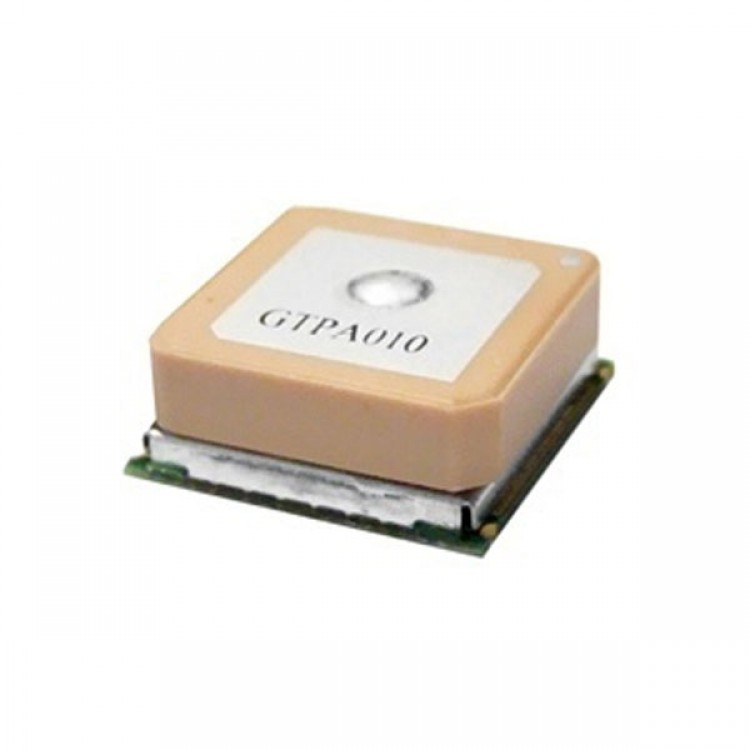

MTK 3329 GPS Module For Quad Multicopter
  • MTK 3329 GPS Module For Quad Multicopter
  • MTK 3329 GPS Module For Quad Multicopter

  • SKU:18589
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 4
  • Price:$39.10
  • Price in reward points: 391
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.32 $37.54 $36.36 $34.80 Contact US

MTK 3329 GPS Module For Quad Multicopter
- High sensitivity: Up to -165dBm tracking, superior urban performance
- USB/UART Interface
- Build-in patch antenna for optimal sensitivity
- DGPS(WAAS, EGNOS, MSAS) support (optional by firmware)
- Maximum update rate : up to 10Hz (optional by firmware)
- RoHS compliant

Pls Note that the new MediaTek has custom and exclusive "DIYDrones" firmware that allows the unit to output an efficient and very compressed binary protocol. You can still change between NMEA and Binary protocol with standard MTK messages, and switch the refresh rate between 1hz to 10hz, or set any standard serial baud rate (by default is set to 38400 bps and custom binary protocol).
- Only contain module,including PCB,can not use directly
- Can Programm MTK 1.6 hardware Recognize APM
-Based on MediaTek Single Chip Architecture.
-Dimension:16mm x 16mm x 6mm
-L1 Frequency, C/A code, 66 channels
-High Sensitivity:Up to -165dBm tracking, superior urban performances
-Position Accuracy:< 3m CEP (50%) without SA (horizontal)
-Cold Start is under 35 seconds (Typical)
-Warm Start is under 34 seconds (Typical)
-Hot Start is under 1 second (Typical)
-Low Power Consumption:48mA @ acquisition, 37mA @ tracking
-Low shut-down current consumption:15uA, typical
-DGPS(WAAS, EGNOS, MSAS) support (optional by firmware)
-USB/UART Interface

-Support AGPS function ( Offline mode : EPO valid up to 14 days )
-Weight: 0.2 oz; 6 g
