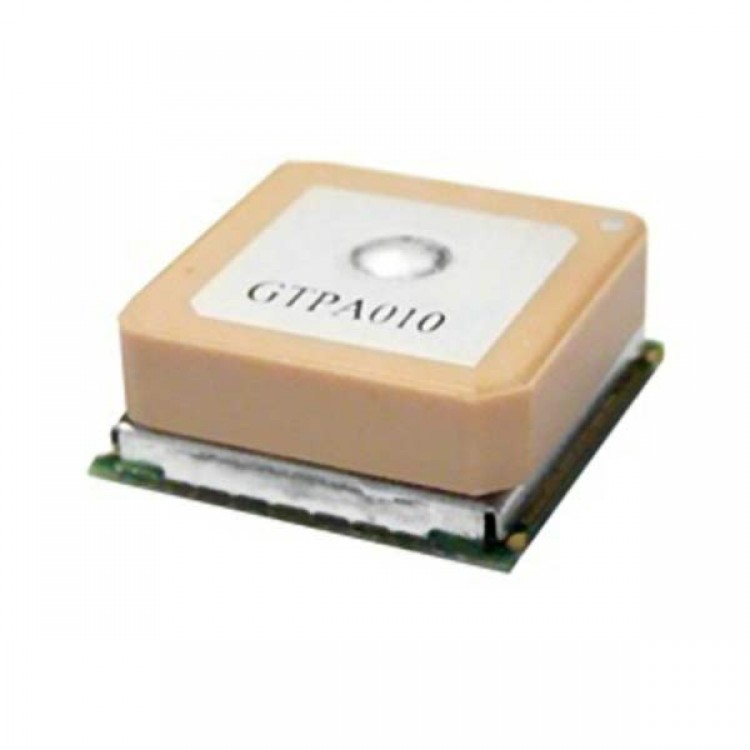

MTK 3329 GPS Module MediaTek Single Chip 165dbm Sensitivity

Availability: In stock, usually dispatched in 1 business day

  • Price:$36.07
  • Price in reward points: 361 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.35 $34.63 $33.55 $32.10 Contact US
Quantity:

MTK 3329 GPS Module MediaTek Single Chip 165dbm Sensitivity
Description:
- High sensitivity: Up to -165dBm tracking, superior urban performance
- USB/UART Interface
- Build-in patch antenna for optimal sensitivity
- DGPS(WAAS, EGNOS, MSAS) support (optional by firmware)
- Maximum update rate : up to 10Hz (optional by firmware)
- RoHS compliant

- Note that the new MediaTek has custom and exclusive "DIYDrones" firmware that allows the unit to output an efficient and very compressed binary protocol. You can still change between NMEA and Binary protocol with standard MTK messages, and switch the refresh rate between 1hz to 10hz, or set any standard serial baud rate (by default is set to 38400 bps and custom binary protocol).

Features:
- Based on MediaTek Single Chip Architecture.
- Dimension:16mm x 16mm x 6mm
- L1 Frequency, C/A code, 66 channels
- High Sensitivity:Up to -165dBm tracking, superior urban performances
- Position Accuracy:< 3m CEP (50%) without SA (horizontal)
- Cold Start is under 35 seconds (Typical)
- Warm Start is under 34 seconds (Typical)
- Hot Start is under 1 second (Typical)
- Low Power Consumption:48mA @ acquisition, 37mA @ tracking
- Low shut-down current consumption:15uA, typical
- DGPS(WAAS, EGNOS, MSAS) support (optional by firmware)
- USB/UART Interface
- Support AGPS function ( Offline mode : EPO valid up to 14 days )
- Weight: 0.2 oz; 6 g
