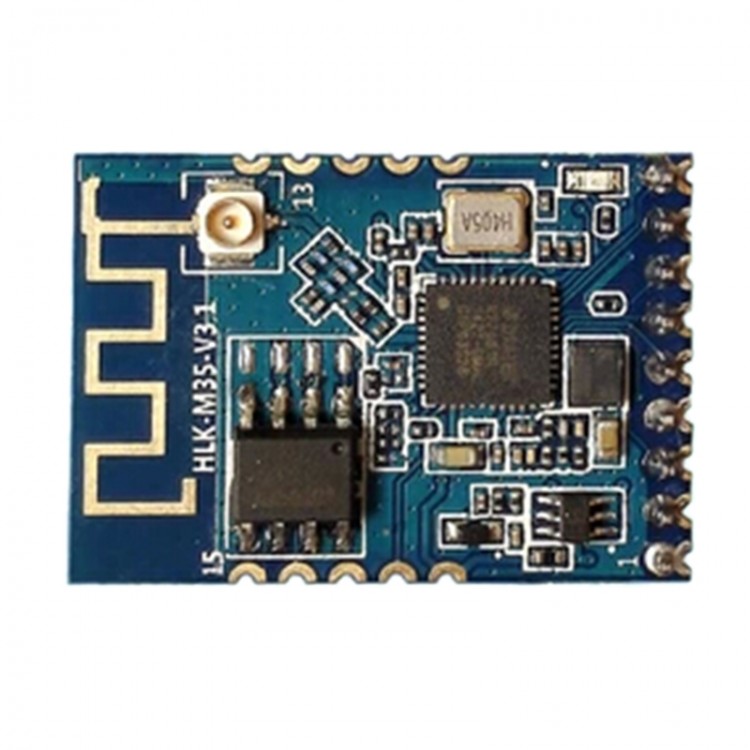

MU-06 MT7681 Embedded Serial Port WIFI Module Smart Home Use HLK-M35
Parameters:
- Wireless standard IEEE 802.11n、IEEE 802.11g、IEEE 802.11b
- Wireless transmission rate:
11n: up to 150Mbps
11g: up to 54Mbps
11b: up to 11Mbps
- Channel number: 1-14
- Frequency range: 2.4-2.4835G
- Transmit power: 14-18dbm
- Interface: Serial port, GPIO
Antenna
- Antenna type: External antenna
- Transmission distance: 100-300 m (environment, transmission distance is different)
Function parameter:
- WIFI working mode: Wireless network card / wireless access point
- Wireless security
Wireless security features
64/128/152 bit WEP encryption
WPA/WPA2, WPA-PSK/WPA2-PSK security mechanism
Serial communication network
- Maximum transmission rate: 115200bps
- TCP connection: Maximum connection number 4
- UDP connection: Maximum connection number 4
Other parameters
- Status indicator: Status indicator
- Environmental standard:
Working temperature: -20-70
Working humidity: 10%-90%RH (not setting)
Storage temperature: -40-80
Storage humidity: 5%-90%RH (not setting)
- Other properties: Band bandwidth optional: 20MHz, 40MHz, automatic
