Multi-function 7inch LCD TV DVB-S Receiver Satellite Signal Finder&Monitor

Availability: In stock, usually dispatched in 1 business day

  • Price:$139.99
  • Price in reward points: 1400 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $137.19 $134.39 $130.19 $124.59 Contact US
Quantity:

Multi-function 7inch LCD TV DVB-S Receiver Satellite Signal Finder&Monitor

Description:

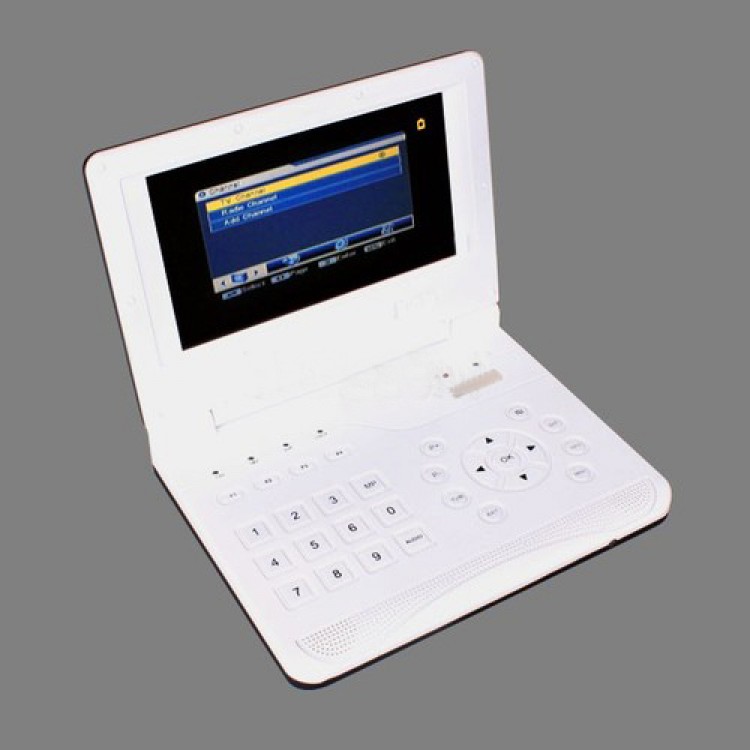

7inch multi-function Portable Satellite Finder With 7” Wide Screen is a tailored special apparatus designed for professionals to install of satellite TV receiving and monitoring system .It is a high-tech electronic product that sets satellite television receiver sets, LCD liquid crystal image display , TFT LCD high-brightness signal quality image parameters display and high-performance lithium polymer battery as a whole, according to actual needs of the installation of satellite engineering. The clamshell-style boot machines are portable and user-friendly ,which are used to install the satellite TV reception system and adjust signal for engineer and technical personnel.



Features:
- 7-inch TFT LCD
- both in Chinese/English/Thailand/Laotian/Vietnam/Russian/Indonesia menu
- remote control
- built-in lithium polymer batteries
- an external power source, working for two hours or more
- AV input & output function, signal quality displayed through the LCD Screen
- the unique satellite finder guidance function and built-in games
- small size, light weight and easy to carry

Specifications:
Main parameters:     TFT 7"(73*51mm)
Battery pack:              DC 7.4V 3000mAh (built-in)

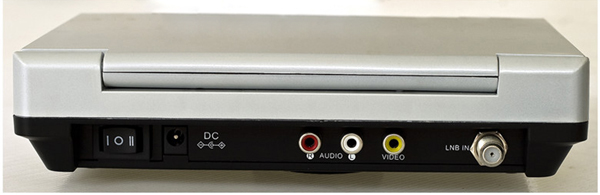

A/V output:                  Video RCA/S-Video; Audio RCA left/right/stero channel
Input voltage:             DC 8.5V
Input impedance:     75 Ω (Type F)
Input frequency:        950-2150 MHZ
Symbol rate:              2-45Mbands MCPC, SCPC compatible
Input signal level:     -65 ~-25dBm
EB/O threshold:        4.1 dB
Demodulation:         QPSK
Video decode:          ISO/IEC 13818-ZMP @ML NTSC/PAL
Audio decode:          ISO/IEC 13818-3Layerl & 2
Size:                           205 * 165 * 45 mm
Weight:                      800 g (with battery)

Package included:
- 1 x 7 inch Digital Satellite Finder (Include Rechargeable Battery)
- 1 x Remote control
- 1 x Power Adapter
- 1 x USER Manual
