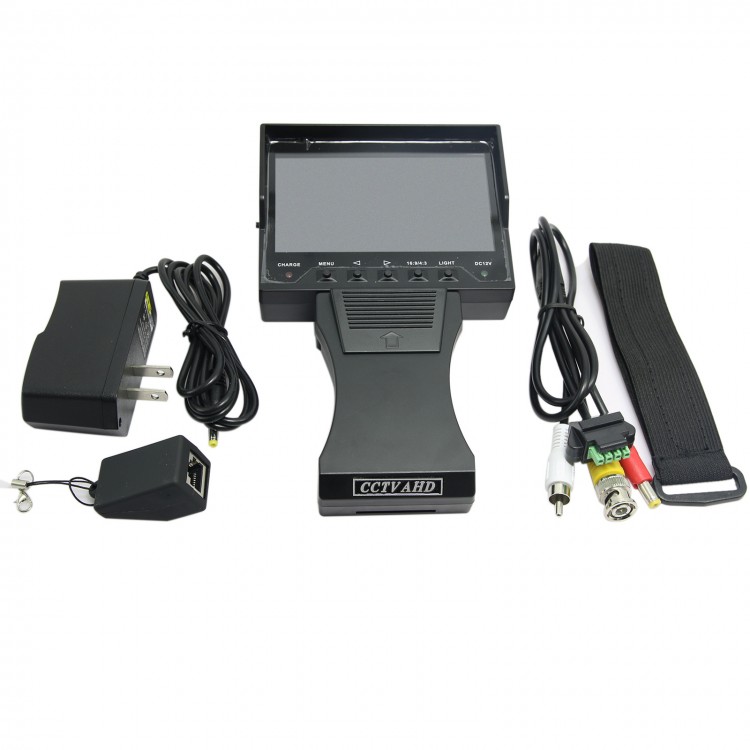

Multifunction 4.3" Audio Video CCTV Security Camera Tester 12V Output ADSL RJ45 Cable Test Monitor

Multifunction 4.3" Audio Video CCTV Security Camera Tester 12V Output ADSL RJ45 Cable Test Monitor

Description:
- Humanized design of appearance: Hand-hold design for professionals. Easy operation without taking off gloves speeds your works. Clasp ring at bottom fits to all chains and use in all environments
- Support DC power for camera: It's convenient for user to check camera condition and correct direction of camera, so to make installation and repairing easier
- The net line test function: Can carry out can see to turn to show that the net line conjunction circumstance and the net lines link the sequence.
- CCTV installation works best detection system is equipped with built-in lithium battery, video input, audio input, seven kinds of standard color bar output terminal and the DC12V power supply, only palm-sized, easy to carry operations

Function:
- Portable product: Portable product is able to use in any place and any time. It is easy to hold and do not need complicated equipment that hinders the inspecting and repairing
- Monitor: 4.3 "high image resolution monitor enable to show clear image that fits any place to use.
- Long work time: Equips with Lithium battery of high capability. Each 6hours recharge durables 5 -8 working hours

Specification:
- Display:4.3"TFT Color LCD
- Number of Pixel:480RGB(H)X272(V)
- Video In:Video In *1 (BNC connector)
- Export:7 kinds of color bar signal output  DC power out *1
- Support CCD camera of power source/Max electric currency 500mA
- System Format:NTSC / PAL
- Language:Support English/Chinese
- Battery Specification:Built-in rechargeable Lithium battery : 3.7V 2600mA/h
- Power Specification:External power :DC 5V 1.0A Adapter
- Dimension/ Weight:178mm (L) x110mm (W) x 40mm(H) / 350g

Application:
Monitor: Camera quality inspecting; image of installation correcting; inspect and repair of monitor system circuit etc.

Package included:
- 1 x IP Camera Tester
- 1 x Adapter
- 1 x Internet connector
- 1 x Box
- 1 x Manual
- Cables
