Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $13.45 | $13.17 | $12.76 | $12.21 | Contact US |

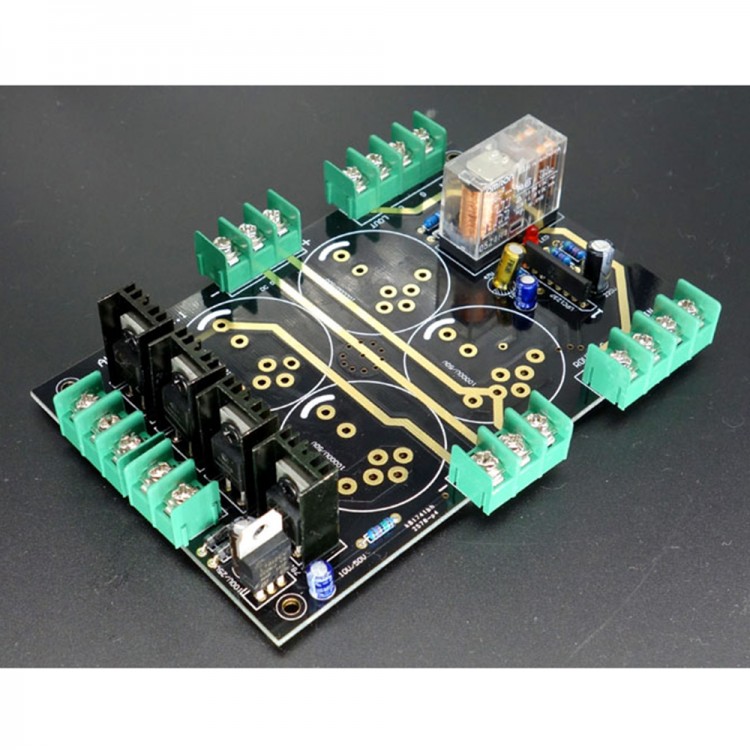

MUR860G Super Fast Rectifier Filter Power Supply Board For DIY Audio Power Amplifier
Specification:
- Rectifier MUR860G x 4
- Vrsm=600v
- IFRMS=25A TVJ=TVJM
- IFAVM=12A TC=100oC; rectangular, d=0.5
- IFRM=150A tp<10us; rep. rating, pulse width limited by TVJM
- Trr=50NS IF=1A; -di/dt=50A/us; VR=30V; TVJ=25oC
- Maximum capacitance installation diameter: 35MM
- PCB size: 131X86
Features:
- High reliability circuit operation
- Low voltage peaks for reduced protection circuits
- Low noise switching
- Low losses
- UPC1237 and Omron relay formed speaker protection circuit
Note: Not include 4 pcs capacitors.
Package included:
- 1 x Board
