MUSE DA10 PCM2704 USB DAC Mini DAC Digital Decoder Headphone Amplifier + Adaptor

Availability: In stock, usually dispatched in 1 business day

  • Price:$40.97
  • Price in reward points: 410 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $40.15 $39.33 $38.10 $36.46 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

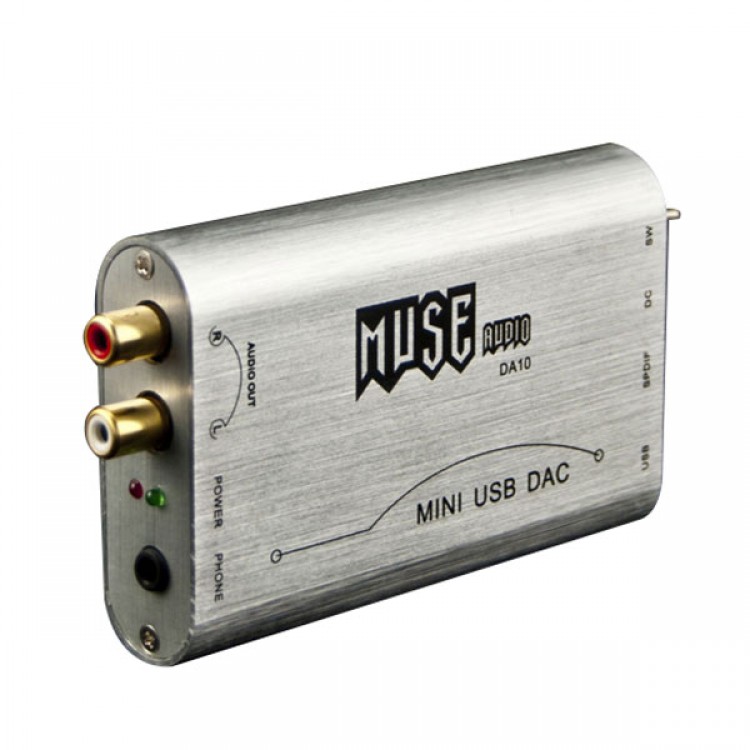

MUSE DA10 PCM2704 USB DAC Mini DAC Digital Decoder Headphone Amplifier + Adaptor

Features:
- The innovative use design of the OP expansion flow of a single power adapter to dual power supply, the whole adopt virtual ground power supply design, and has a high resistance to noise ratio
- Adopts 4-layer FR4 high quality heavy gold PCB design, four layer of design offers good line environment for this machine
- Headphone design adopt OP+ BUF framework, and Parallel lines will be cut off automaticly after insert headphones
- The machine power are not using the computer' s power, all IC externally connect all DC multi-stage regulator

Specifications:
- Input:USB(1.0)x1
- Output terminal: analog RCA 1 group  3.5MM headphone jack x 1 SPDIF OUT x 1
- Frequency response: 10HZ -20KHZ (-1dB)
- Distortion AC: 0.01%
- Headphone output: 0.05%
- Headphone output level: P-Pmax:6V
- Headphone output matching impedance: 32 ohm -600 ohm
- Line output level: 2Vrms
- Input Power: DC9-12V 1000mA
- Size: 105mm * 70mm * 25mm

Package Included:

- 1 x DA10 USB decoder
- 1 x USB 2.0 Cable
- 1 x 12V 0.5A power supply adapter
