Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $500.95 | $490.72 | $475.39 | $454.94 | Contact US |

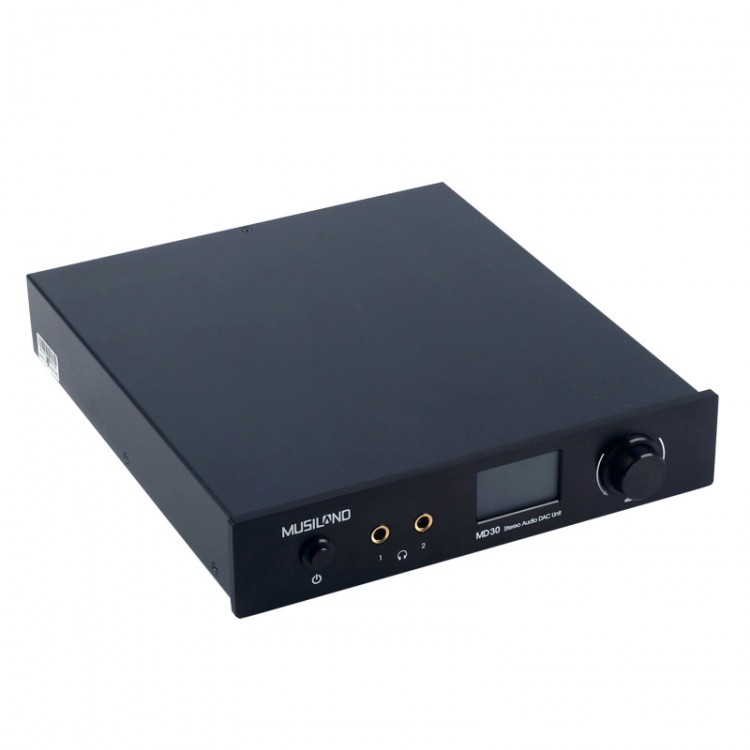

Musiland MD30 Stereo Sound Video Decoder USB Optical Fiber Coaxial Codec Unit
Specifications:
- AC power input Specifications: 90V-265V, 50/60Hz
- Power consumption: <20W
- Color: Black
- Case Material: iron case, aluminum wire drawing process panel
- Dimensions (cabinet): 275x252x50 (mm)
- Weight: about 2.2kg
Digital input:
- USB2.0 High Speed Interface: 16Bit, 24Bit, 32Bit sampling depth, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz sampling.
- Coaxial RCA, BNC coaxial, fiber optic, AES: 16Bit, 24Bit sampling depth, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz sampling. Support MMDI instruction.
- MULINK high-definition digital interface: 16Bit, 24Bit, 32Bit sampling depth, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz sampling. Support MMDI instruction.
- Clock jitter (44.1kHz): S / PDIF less than 30PS, USB, MULINK less than 20PS
Linear output:
- Dynamic range: greater than 120dB
- SNR (A weighted): greater than 120dB
- Total harmonic distortion: less than 0.0005%
- Frequency Response (20Hz ~ 20KHz): +-0.2dB
- Max Level: RCA Line 2V rms; XLR line 6V rms
- Output Impedance: 10KΩ
Headphone output:
- Max Level: 4V rms
- Impedance: 10Ω
- Power: 260mW/RL = 300Ω
Interface:
- 1*5-pin round mouth MULINK input interface
- 1*XLR balanced AES digital input interface
- 1*side port optical input interface
- 1*RCA coaxial input interface
- 1*BNC coaxial input interface
- 1*B-type USB input interface
- 1*RCA line outputs
- 1*XLR balanced analog outputs
- 1*6.25mm headphone output interface
Main characteristics:
- 1*Balanced digital input interface
- 1*Balanced analog outputs
- 1*Support S / PDIF input format: PCM
- 1*Up to the digital input formats: 32Bit/192KHz
- 1*LCD screen, brightness, contrast adjustable backlight color R, G, B independently adjustable
- 1*Line, headphone volume independent regulator
- 1*High-end discrete headphone amplifier
- 1*Manually select the input
- 1*USB2.0 high-speed computer interface, driver support: Windows XP / Server 2003 / VISTA / 7, support for ASIO 2.0
Package included:
- 1 x Decoder
- 2 x Power cord
- 1 x MULINK cord
- 1 x USB cable
- 1 x Guide: 1
- 1 x Warranty Card: 1
- 1 x Driver CD: 1
