MWC MultiWii SE V2.5 Flight Controller +FTDI USB-TT +GPS + OLED + Bluetooth

Availability: Out Of Stock

  • Price:$63.40
  • Price in reward points: 634 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $62.13 $60.86 $58.96 $56.43 Contact US
Quantity:

MWC MultiWii SE V2.5 Flight Controller +FTDI USB-TT +GPS + OLED + Bluetooth

Description:
- Crius MWC MultiWii Standard V2.5 SE Flight Controller module:
- 6 PWM input channels for standard receiver or PPM SUM receiver
- Supported 2-axis gimbal and auto trigger controll
-Up to 8-axis motor output
- FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display
-  I2C port for extend sensor, I2C LCD/OLED display or I2C-GPS NAV board for GPS and Sonar
- Ultra low noise 3.3V LDO voltage regulator
- ATMega 328P Microcontroller
- MPU6050C 6 axis gyro/accel with Motion Processing Unit
- HMC5883L 3-axis digital magnetometer
- BMP085 digital pressure sensor
- PCA9306DP1 logic level converter
- Small size,35x35mm mounting holes

Bluetooth parameter debug module:
- For Multiwii FC Configuration use with Android MultiWiiConfiguration
- UART TTL socket
- Read and Write PID
- Setting switch for AUX1 and AUX2
- Monitor receiver signal and FC output signal
- Monitor All sensors and GPS signal
- Cablibration Magnetometer and Accelerometer
- Save and read profile
- Baudrate : 115200
- Module name : CRIUS_BT
- Pair code : 0000
- Dimension: 15mmX37.5mm
- Height: 5mm
- Weight:2.2g/3.9g(include cable)
- Hole diameter: 3mm
- CRIUS CO-16 OLED Display Module:
- High brightness, self-emission, high contrast ratio
- monochrome 128×64 dot
- 5V I2C interface
- Used for telemetry and debug MultiWii FC.
- Dimension: 27mmX27mm
- Height: 6.5mm
- Weight:3.7g/4.9g(include cable)
- FTDI USB-TTL:
- This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector.

GPS receiver:
- Standalone GPS receiver
- U-blox NEO-6M GPS module
- Build in 18X18mm active GPS antenna
- UART TTL socket
- Rechargeable battery for Backup
- Dimension: 22mmX30mm
- Height: 13mm
- Weight:12g/14.4g(include cable)
- Hole diameter: 3mm

2C-GPS NAV Module:
- All GPS data available via the I2C bus to connect to 328P Multiwii FC
- A LED on board show GPS 3D Fix status
- ATMega 328P Microcontroller
- 2 Molex 1.25mm 4Pin socket for GPS receiver and FC
- 2 port for ISP and FTDI
- Dimension: 20mmX30mm
- Height: 5mm
- Weight:2.4g/5g(include cable)
- Hole diameter: 3mm

Note: Package does not include USB cable

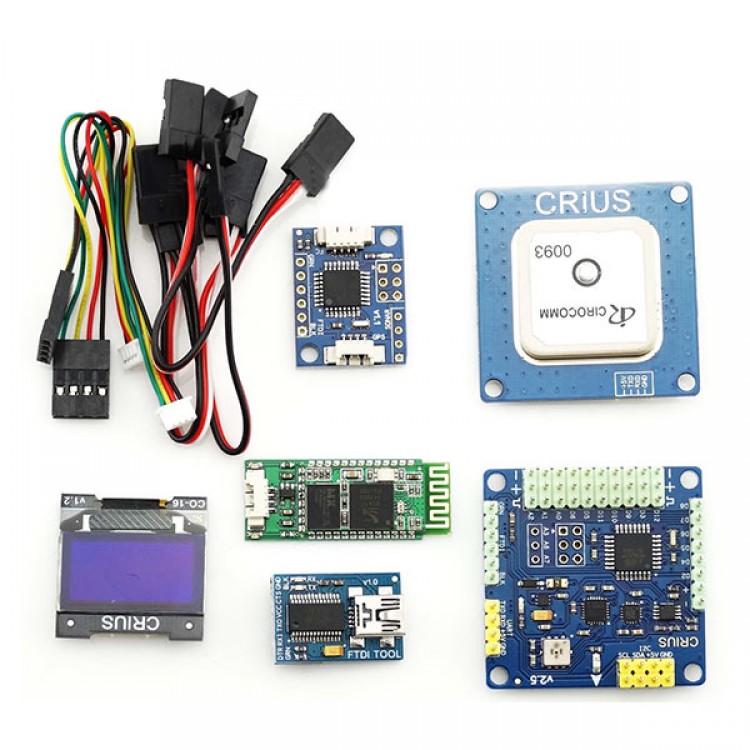

Package Including:
1x MWC V2.5 SE Flight Controller
1x I2C-GPS NAV Module
1x CN -06 GPS receiver
1x CO-16 OLED Display Module
1x Bluetooth module
1x FTDI USB-TTL
