MWC MultiWii Standard Flight Control with BEC Connect Board +FTDI Multicopter QuadCopter

MWC is MultiWii Copter abbreviation, this open source program's original author is a French program Alex, after two years of joint efforts of many enthusiasts, and now the MWC program has become increasingly mature, has become very popular abroad, cost-effective flight control one. DIY is not a flight control, but no one can do things, Chris launched the MWC model series of flight control, so that multi-axis aircraft MWC fans can easily access the high cost of this product, through the MWC program to control the hardware platform, can achieve a variety of multi-spindle, high-quality flight results, flexibility can be adjusted into a very stable or very flexible to fit aerial, FPV or stunt flying and many different needs.

With the same program for the open source compared to KK or ACM, MWC's more stable flight performance, flight skills required for novice lower debugging process more intuitive. Dedicated MWC GUI program can easily observe the PID parameters, flight control signal input / output status, sensor / switch-state, as well as aircraft attitude and heading sensor signal state of each group, sufficient for the initial configuration of the aircraft easier.
This version of MWC have ESC connector function,up and bottom ring of PCB can be connected to 7 ESC,more convenient to build multicopter

MultiWii SE Standard Edition supports the following aircraft models:

  • GIMBAL -------- PTZ stabilizer independent (non-flight control purposes)
  • BICOPTER ------ 2-axis aircraft Avatar
  • Tricopter ----- Y3 (Y-type 3-axis)
  • QUADP --------- 4-axis + classic mode
  • QUADX --------- 4-axis × mode(Default setting)
  • Y4 ------------ Y-type four-axis
  • Y6 ------------ Y-type 6-axis
  • HEX6 ---------- 6 axis + mode
  • HEX6X --------- 6-axis × mode
  • FLYING WING --- flying wing with a (non-multi-axis machine, the program is in testing phase).

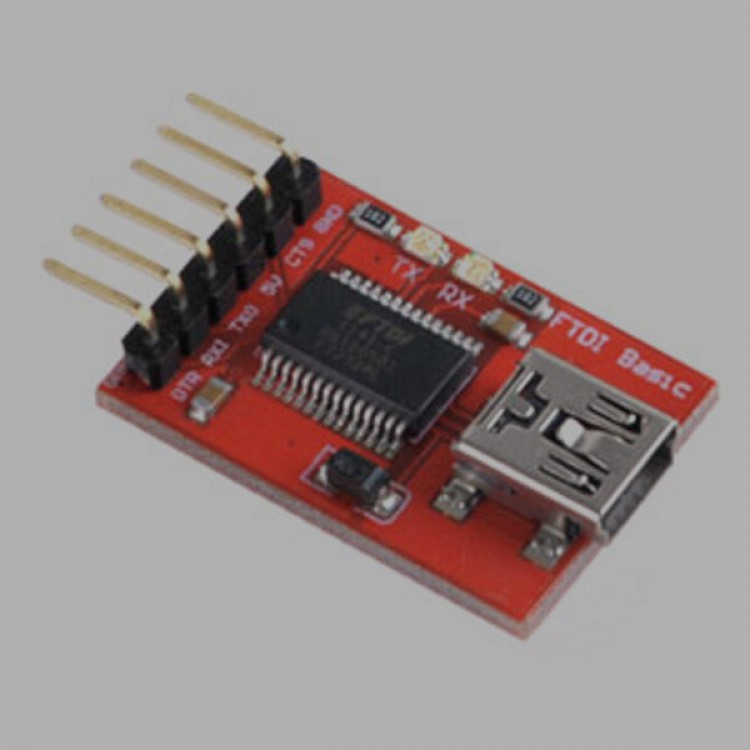

Tool to connect the computer via FTDI, flight mode can be easily converted at any time.

MultiWii SE Standard Edition Hardware configuration:

  • ATMEGA328P microcontroller
  • ITG3205 three-axis digital gyroscope
  • BMA180 triaxial accelerometer
  • BMP085 pressure sensor
  • HMC5883L axis magnetoresistive sensor (electronic compass)

MWC above the mainstream hardware platform with a combination of commonly used, which is equivalent to Arduino Pro Mini and FFIMU 0.35 9DOF IMU sensor combined, integrated design makes working more stable flight control.
