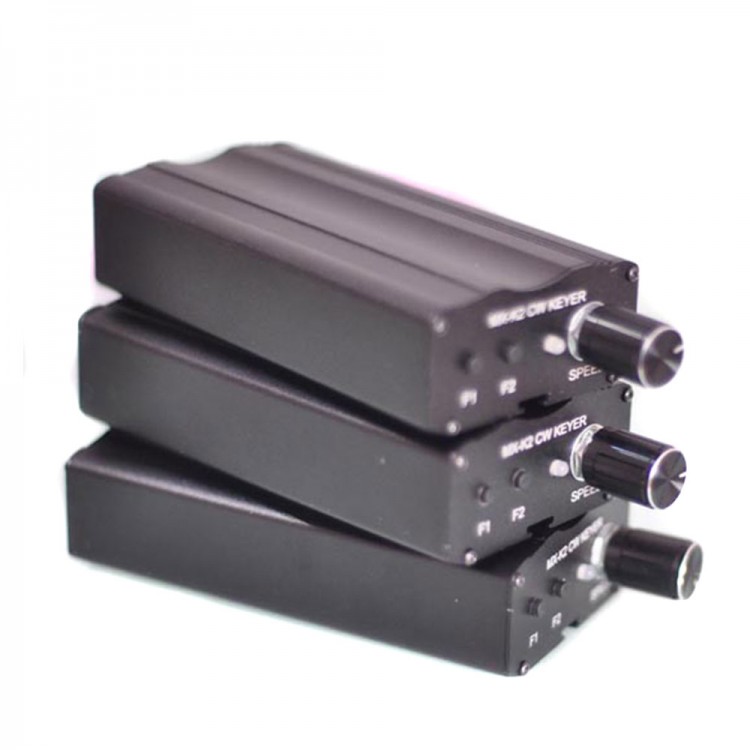

MX-K2 CW Keyer Morse Code Auto Key Controller with Shell for Ham Radio Transceiver

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.78
  • Price in reward points: 278 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.22 $26.67 $25.84 $24.72 Contact US
Quantity:

MX-K2 CW Keyer Morse Code Auto Key Controller with Shell for Ham Radio Transceiver

Instructions:

- BATT:AAA*2 (not included)

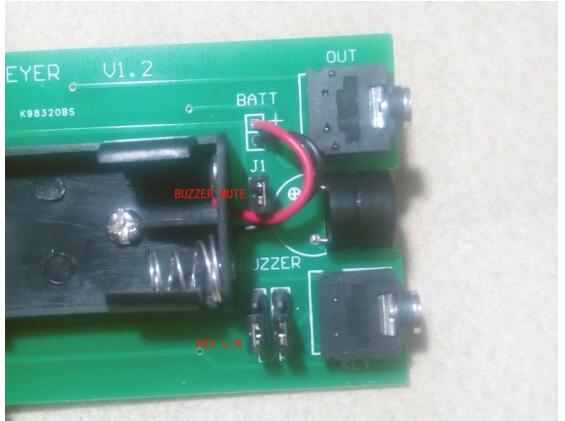

- J1:buzzer mute
- L/R:di/da or da/di
- F1 key can remember 60 words , and it has power-off protection fuction.
- F2 key can remember 50 words ,  it doesn't protect the data when the power fails.

R3 key is for speed control, speed getting fast when the value of R3 getting down.

- Record: Keep pressing on F1 /F2 for more then half second, you will hear 'M', now it records CW automatically.
- When it is all done, press F1/ f2, you will hear "S".
- It will remind you by "F" if you exceed the volume, and the extra part will noe be recorded.
- Message segment : Every message can not only be storaged by a long memory, it also can be separate into several parts by inputing EOM (End of Message)at the end of every segmentation.
- Play the segmentations: If you want play the second segmentation, just press the memory key 2 times; if you want the third one,then press the key 3times, etc.
- Command mode:press F1 AND F2 at the same time, you will hear "C",now it is under the mode of command
- End command mode: press F1 and F2 at same time again, or you can input "D" by pressing the auto key
- When you use the auto key,PIC will make a judgement: you will hear "R" for the right command, and "?" for invalid command.
- "A" :turn off the memory of long-short voice.
- "B" :turn on the memory of long-short voice. This is the most common command.
- "C" and "E": Repeat play. it will stop automatically after playing 255 times under the 'E'command mode.
- You just press the short voice auto key if you want to turn it off. Press it again, after keyer making the judgement of "R",it will be over.
- "C" can't sotp automatically, but it can be used as a sign. You just press the short voice auto key if you want to turn it off.
- Press it again, after keyer making the judgement of "R", it will be over.
- "D" ends the command mode, and goes back to common mode.
- "T" transfer command, it lasts for 30 seconds,then goes back to command mode.
- If you press auto key or memory key during T'S 30s, it will stop, and goes back to common mode.

Package Contents:
- 1 x MX-K2 CW Keyer
