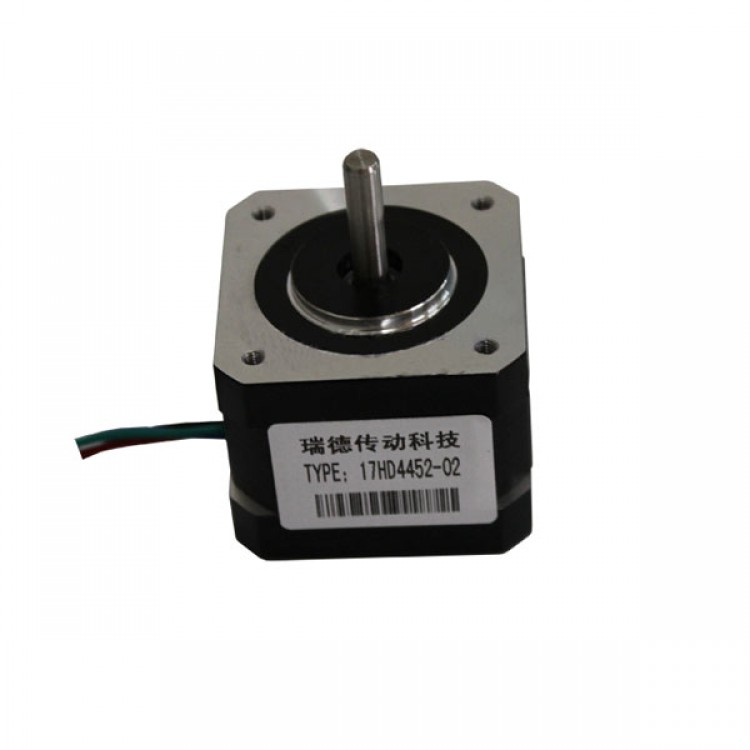

NEMA17 Stepper Motor 42 Step Motor 1.8 Degree Step Angle 34MM Thickness

Availability: In stock, usually dispatched in 1 business day

  • Price:$15.05
  • Price in reward points: 151 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.75 $14.45 $14.00 $13.39 Contact US
Quantity:
Buy it now Add cart

You might like

35HS3408A4 Mini Stepper Motor 0.8A 18N.cm 1.8 Degree CNC Stepping Motor

35HS3408A4 Mini Stepper Motor 0.8A 18N.cm 1.8 Degree CNC Stepping Motor

$15.47

(0)
NEMA17 42BYG 1.7A Stepping Motor 17HS4401 3D Printer CNC Stepper Motor

NEMA17 42BYG 1.7A Stepping Motor 17HS4401 3D Printer CNC Stepper Motor

$16.30

(0)
NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 40MM Thickness

NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 40MM Thickness

$18.99

(0)
35HS3404A4 Mini Stepper Motor 0.42A 18N.cm 1.8 Degree CNC Stepping Motor

35HS3404A4 Mini Stepper Motor 0.42A 18N.cm 1.8 Degree CNC Stepping Motor

$15.47

(0)
42BYGH3402 Two-Phase Hybrid Stepping Motor 28N.cm 1.7A Stepper Motor CNC

42BYGH3402 Two-Phase Hybrid Stepping Motor 28N.cm 1.7A Stepper Motor CNC

$15.05

(0)
NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 48MM Thickness

NEMA17 Stepper Motor 42 Step Motor 1.8Degree Step Angle 48MM Thickness

$22.45

(0)
42BYGH3403 Two-Phase Hybrid Stepping Motor 28N.cm 0.4A Stepper Motor CNC

42BYGH3403 Two-Phase Hybrid Stepping Motor 28N.cm 0.4A Stepper Motor CNC

$15.05

(0)
42BYGH3404 Two-Phase Hybrid Stepping Motor 21N.cm 0.4A Stepper Motor CNC

42BYGH3404 Two-Phase Hybrid Stepping Motor 21N.cm 0.4A Stepper Motor CNC

$15.05

(0)

NEMA17 Stepper Motor 42 Step Motor 1.8 Degree Step Angle 34MM Thickness

Specification:
- Step angle: 1.8degree-+5%
- No. of phases: 2
- Rated voltage: 3V
- Rated current: 1.2A
- Resistance: 2.5 ohm+-10%  at 25degree
- Inductance: 4.5mH+-20%  at 1KHz, 1Vrms
- Holding torque: 0.336N.m(47.4oz.in)
- Running torque(AT---PPS): ----MIN, (24V, DC, RATED CURRENT, FULL STEP)
- Dielectric strength: 500V A,C / MIN
- Insultation resistance: 100M ohm / min
- Insultation class: class B
- Temperature rise: 80K MAX
- Rotor inertia: 68g.cm
- Weight: about/APPROX. 210g
- Allowable thrust load: 10N
- Allowable radial load: 21N
- Operate ambient temp: -20---50degree
- Operation ambient temp: 15--90%
