NEO-7M GPS & MAG V2 Flight Control GPS w/ HMC5883L Compass for AMP Pixhawk Flight Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$25.20
  • Price in reward points: 252 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.70 $24.19 $23.44 $22.43 Contact US
Quantity:

NEO-7M GPS & MAG V2 Flight Control GPS w/ HMC5883L Compass for AMP Pixhawk Flight Control

Description:

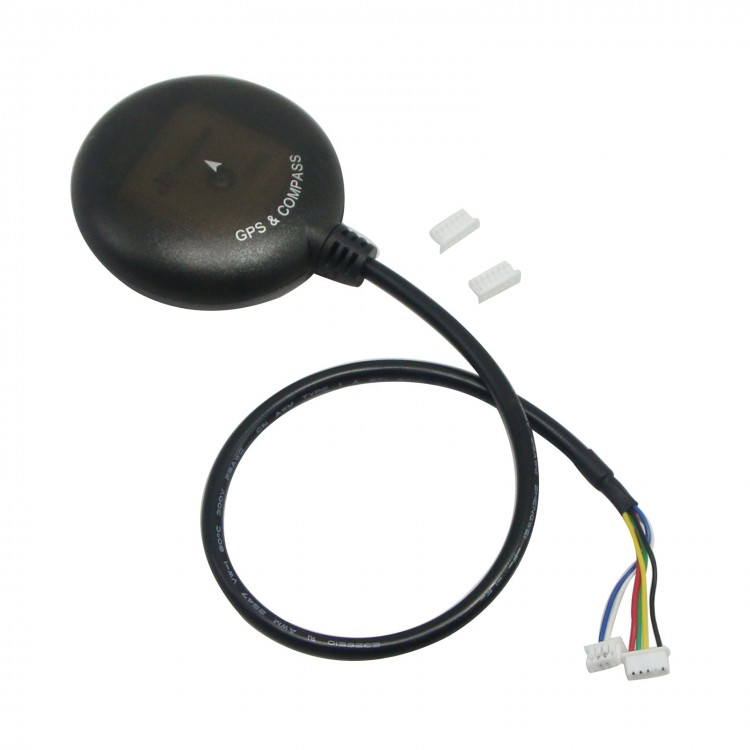

- This is the high performance GPS module with HMC5883L compass. It can be mounted away from sources of interference. It features active circuitry for the ceramic patch antenna, rechargeable backup Capacitors for warm starts.

Features:
- u-blox NEO-7M GPS module
- 10Hz update rate
- Build in 25 x 25 x 4mm ceramic patch antenna
- LNA and SAW chip
- 3.3V LDO low noise regulator
- UART (TTL) port with EMI protection
- 3V Rechargeable Backup Capacitors
- Fix indicator LEDs
- Reverse polarity protection for input power

Parameters:
- Dimension: 50*50mm
- Weight: 0.08
- GPS module: u-blox NEO-7M
- EEPROM: no
- Connecting cable: molex 1.25mm-5pin/4pin
- Back up capacitance: II XH414

Default parameters:
- NMEA protocol
- Baud rate : 9600
- Nav rate : 1Hz
- TIMEPULSE (fix LED) rate : 1Hz

Other:
- Dimension: 50 x 50 x 13mm
- Weight: 29.3g (include cable)

Package includes:
- NEO-GPS & MAG v2   x   1
- 1.25-5P / 1.25-4P cable 300mm  x  1

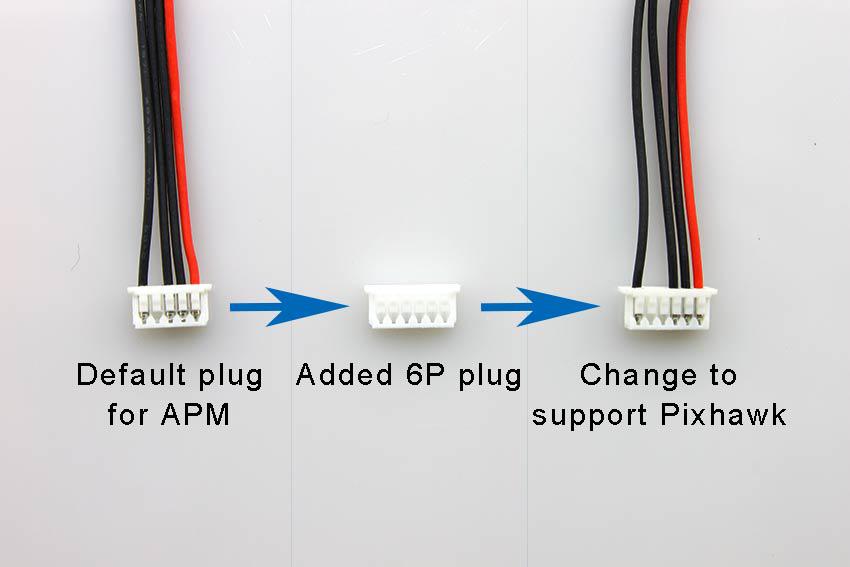

The GPS used for APM/Pixhawk and include cable for APM. If it used for Pixhawk, Please change the plug shell 5-Position to 6-Position like this:
