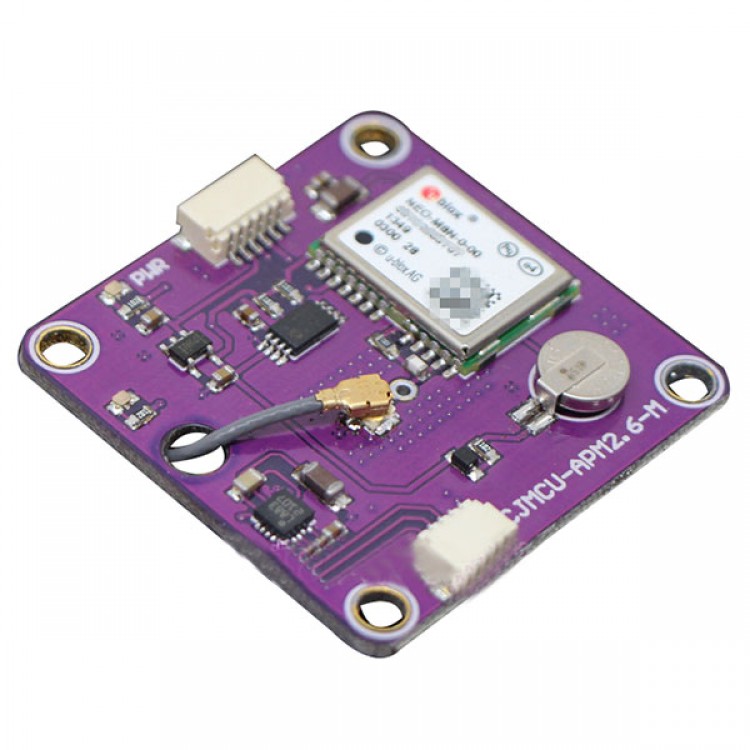

• NEO-M8N GPS Module UBLOX The Eighth Generation GPS Module w/ 3 Axis Compass

NEO-M8N GPS Module UBLOX The Eighth Generation GPS Module w/ 3 Axis Compass

Availability: In stock, usually dispatched in 1 business day

  • Price:$116.89
  • Price in reward points: 1169 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $114.55 $112.21 $108.71 $104.03 Contact US
Quantity:

NEO-M8N GPS Module UBLOX The Eighth Generation GPS Module w/ 3 Axis Compass

GPS parameters:

- Receiver type 72-channel u-blox M8 engine
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (NEO-M8N)
- Nav. update rate1 Single GNSS: up to 18 HZ
- Concurrent GNSS: up to 10 Hz
- Position accuracy2 2.0 m CEP
- Acquisition2 Cold starts: 26 s
- Aided starts: 2 s
- Reacquisition: 1.5 s
- Sensitivity2 Tracking & Nav: –167 dBm
- Cold starts: –148 dBm
- Hot starts: –156 dBm
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)3
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q),
- Crystal (NEO-M8M)
- RTC crystal Built-In
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for
- lowest noise figure (NEO-M8N/Q)
- Anti jamming Active CW detection and removal. Extra
- onboard SAW band pass filter (NEO-M8N/Q)
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time (NEO-M8N)
- Operating temp. –40° C to 85° C
- Storage temp. –40° C to 85° C (NEO-M8N/Q)
- –40° C to 105° C (NEO-M8M)
- RoHS compliant (lead-free)
- Qualification according to ISO 16750
- Manufactured and fully tested in ISO/TS 16949 certified production sites
- Uses u-blox M8 chips qualified according to AEC-Q100
- Supply voltage 1.65 V to 3.6 V (NEO-M8M)
- 2.7 V to 3.6 V (NEO-M8N/Q)
- Power consumption4 23 mA @ 3.0 V (continuous)
- 5 mA @ 3.0 V Power Save Mode
- (1 Hz, GPS mode only)
- Backup Supply 1.4 to 3.6 V
- NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
- TCXO, flash, SAW, LNA,
-  Timepulse Configurable 0.25 Hz to 10 MHz
