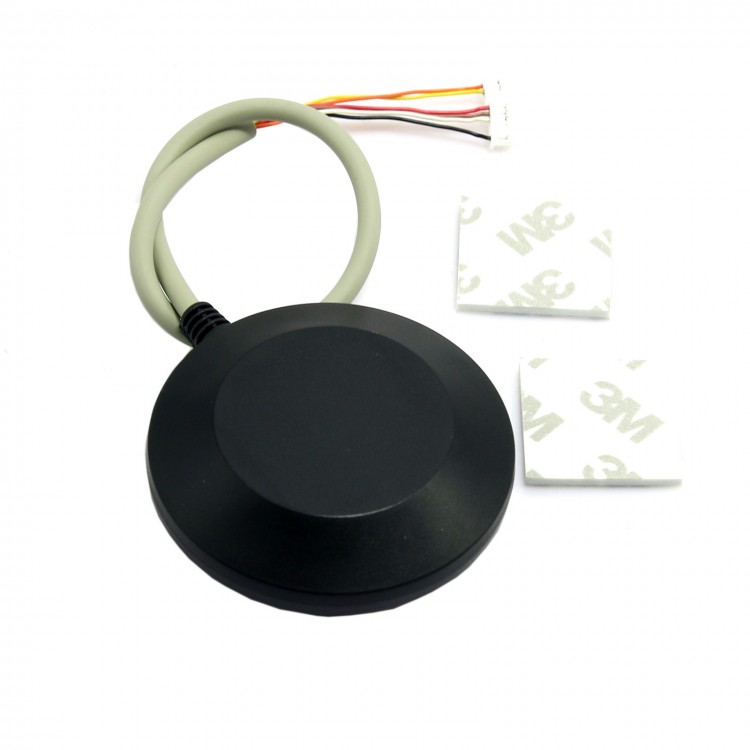

NEO PX4 Pixhawk Electronic Compass APM2.5 2.6 Flight Control GPS Module Similar to M8N

NEO PX4 Pixhawk Electronic Compass APM2.5 2.6 Flight Control GPS Module Similar to M8N

Description:
- Suitable for APM2.5, APM2.6, PX4, PIX
- BT-708 GPS+ electronic compass HMC5883L GPS

Specifications:
- Power supply: DC2.8-6.0V, typical 3.3V or 5.0V
- Power consumption: 50mA 5V
- Receive format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
- Receive channel: 72
- Receive sensitivity: tracking -167dBm, acquisition -148dBm
- Location time: Hot start 3s, warm start 25s, cold start 26s
- Horizontal location precision: 2.0m
- Output frequency: 1hz-10Hz, default 1HZ
- Speed preicsion: 0.1m/s without aid
- Acceleration track precision: 0.1m/s without aid
- Max.height: 18,000m
- Max.acceleration: 4g
- Max.speed: 515m/s
- UART interface: UART communication: TXDA and RXDA, supporting speed rate: 4800bps to 115200bps, default 9600bps
- Temperature: -40~+85°C for work; -40~+85°C for storage
- Size: 45*6mm
- Weight: 10g
- Interface: 1.25mm distance 6pin STM
- Electronic compass: with electronic compass IC HMC5883L

GPS interface definition:
Interface 1:
GND, gournd
- TX, data output
- RX data input
- VCC, 2.8V-6V

Interface 2
- Compass SCL clock pin
- Compass SDA data pin
