Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $22.80 | $22.34 | $21.64 | $20.71 | Contact US |

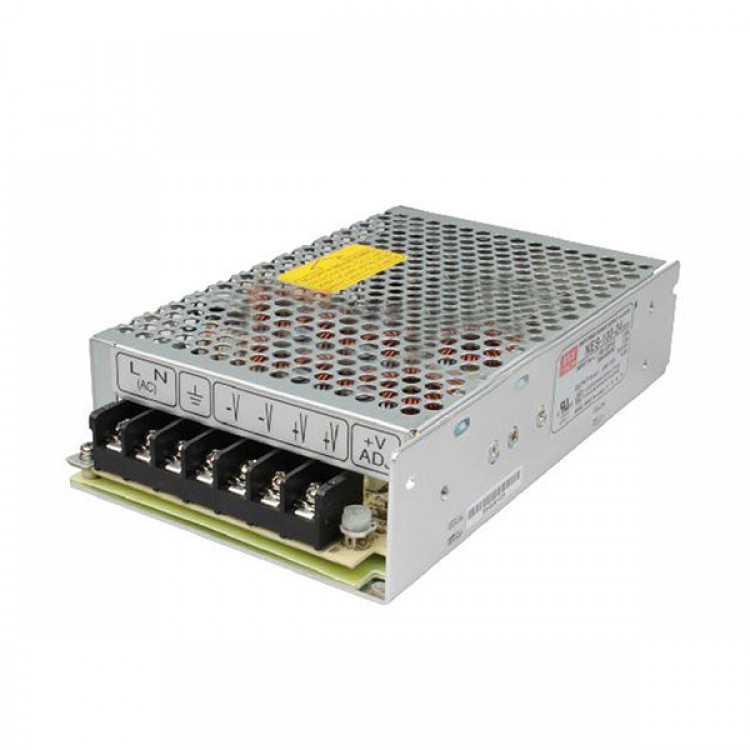

NES-100-24 Switching Power Supply Single Output 100W 24V 4.5A AC to DC Transformer CB UL
Description:
- Output/ DC voltage: 24V
- Output/ rated current: 4.5v
- Output/ rated power: 108W
- Output/ voltage fine tuning: 21.6V-26.4V
- Input/ voltage range: 85-264ACV
- Input/ frequency range: 47-63Hz
- Input/ AC current: 0.35A
- Overloading: 105% of output power
- Overloading voltage: 27.6-32.4V
- Over temp: 140degree
- Working temp: 20-80%RH
- Safety standard: UL/CE/CB/CCC
- Insulation resistance: 500V/25degree/70%
