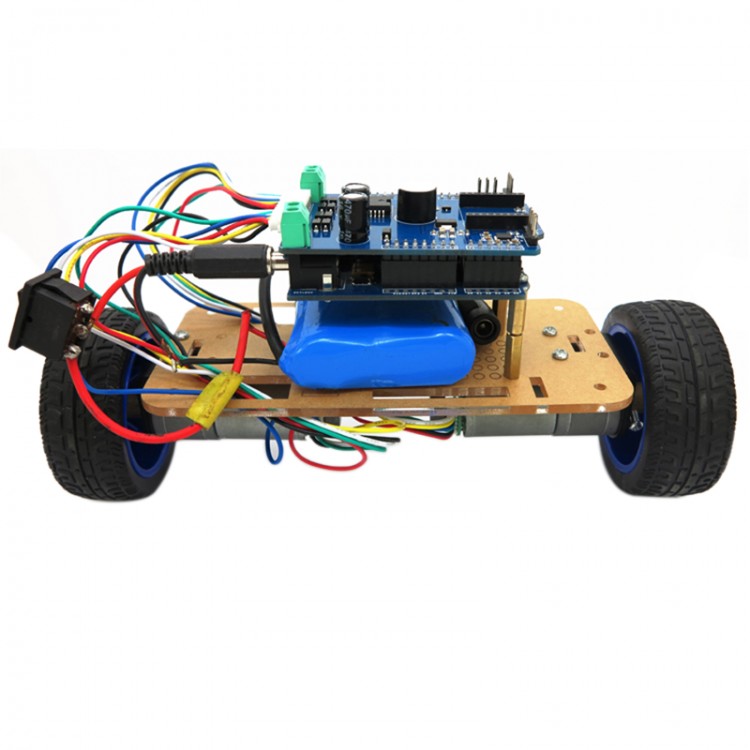

New 2-Wheel Self-Balancing Intelligent Mini Car Source Code Support Bluetooth Wifi Bee DIY Kit for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$77.93
  • Price in reward points: 779 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $76.37 $74.81 $72.47 $69.36 Contact US
Quantity:

New 2-Wheel Self-Balancing Intelligent Mini Car Source Code Support Bluetooth Wifi Bee DIY Kit for Arduino

Description:

The Self-balancing Car Starter Kit is designed for all electronic hobbyists who want to undertake a self-balancing car project. We think people will get a deep impression for their electronic knowledge if they can perform DIY things. So this kit includes all components that you would need. By using the Stablizer shield, you can shorten your project development time. We provide a tutorial and source code that tells you how to use Stablizer shield with arduino, and make this self-balancing car work, but you can also make your own interesting projects by using the parts of the Kit. Please see the following packing list to get some elementary details.

Motor specification:
- Rated Voltage: DC 12v
- Gear ratio: 1/34
- PWM: 26/rpm
- No-load speed: 126rpm/m
- No-load current: 46ma
- Stall current: 1000ma
- Stall torque: 4.2kg.cm
- Rated speed: 100rpm/m
- Rated current: 250ma
- Rated torque: 0.85kg.cm
- Rated power: 1.25w

Note: Battery, development board and uno are not included in this starter kit.

Packing List:
 - Baseboard *1
 - JGA25-26CPR DC Motor with encoder *2
 - 25mm Aluminiun Alloy Fixed Bracket *2
 - M3 Screw *15
 - M3 Nut *15
 - Coupling*2
 - 6mm+15mm Copper Cylinder *8
 - Wheel *2
 - Stablizer Shield *1
 - UNO R3*1
