XHC new generation Mach3 4 Axis USB CNC pendant wireless Manual Pulse Generator
Unique manufacturer for XHC mach3 cnc breakout board and wireless usb cnc pendant

Applications:
WHB04B has 2 series:
1.WHB04B-4:support 4 axis with x,y,z,a
2.WHB04B-6:support 6 axis with x,y,z,a,b,c
Application on mach3 cnc system in windows platform.

Key feature:
- 1.Auto Frequency Hopping When Noise.
Frequency band:433Mhz,ISM,the output power up to10DB,High receiver sensitivity -98DB.
32 hopping channels,the channel frequency gap is 1Mhz.
the transmission is encrypted,auto build communication network and pair.auto hopping when noise.
32 sets of wireless MPG could be used at the same time in one room.
- 2.LCD display
Display the X Y Z A B C axis work and machine coordinate data.
Display the spindle and feed speed.
The lcd display data with background light.
- 3.Axis/Step band switch
To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.
- 4.Support 10 macro function button

General Characteristics:
- Frequency bands:ISM,433MHZ
- Supply voltage:2 AA batteries
- Wireless transmission distance:40 meter
- MPG Encoder:100PPR
- Function Key:16 Keys(support 10 macro function button)
- Output power:10DB
- Receiver sensitivity:-98DB
- Maximum axis:6 axis
- LCD:Dot LCD with background light
- Material:The material is ABS and PC with anti-impact and heat-resistant. With protected Silicon coat
- Package box size:220*168*60mm
- Weight:0.6kg

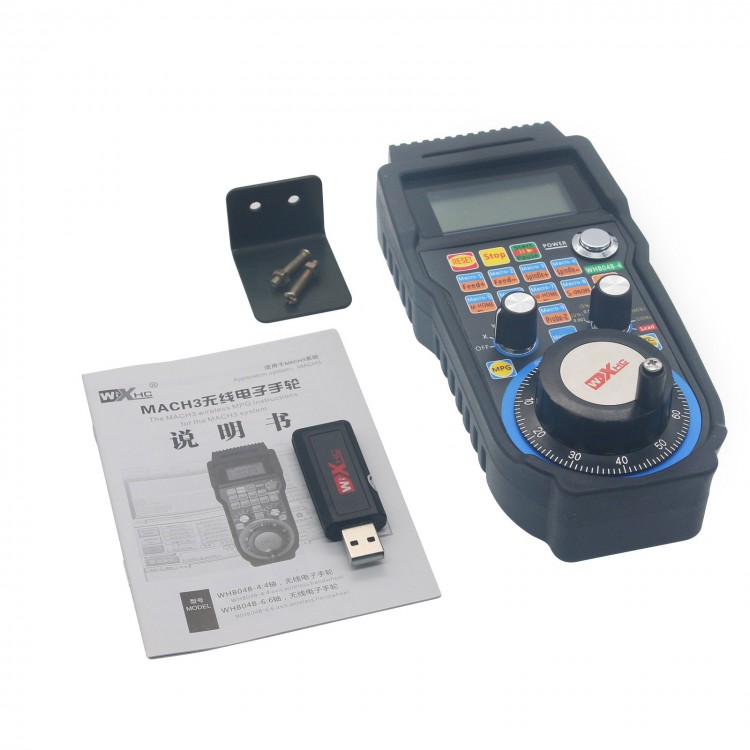

Package List:
- 1 x WHB04B wireless MPG
- 1 x Handle
- 1 x USB wireless receiver
- 1 x WHB04B manual
