New Mini APM PRO Flight Control with Ublox Neo-7N GPS & V2 915Mhz Telemetry & PM for FPV Multicopter Aircraft

Availability: In stock, usually dispatched in 1 business day

  • Price:$90.00
  • Price in reward points: 900 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $88.20 $86.40 $83.70 $80.10 Contact US
Quantity:

New Mini APM PRO Flight Control with Ublox Neo-7N GPS & V2 915Mhz Telemetry & PM for FPV Multicopter Aircraft

APM Pro Description:
- APM PRO, the new generation of APM
- Size: 60*38*14mm
- All interfaces are moved to the two sides, the middle part is no longer used for wiring
- Standard 2.54 dupont plug

Improvements made on the basis of original 2.6
- 3.3V LDO is easy to be burnt down, so it is changed to the imported large current LDO, support continously output 500MA high performance power supply
- Two diodes are changed to Pixhawk Pix PMEG2005 super low differential voltage dynatron
- 22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).
- All interfaces are designed at the two sides
- Two individual RGB colorful light
- Compression version PWM input, it only needs 4 servo cables to realilze 8 channels PWM

915Mhz Radio Telemetry Features:
- Very small size
- Light weight (under 4 grams without antenna)
- Available in 915Mhz
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link
- Air data rates up to 250kbps
- Range of approx 1 mile
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Support for LBT and AFA
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Adaptive flow control when used with APM
- Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.

Power Supply Module Description:
- PM function: used for detecting battery voltage and current, flight control board receives these two signals, calculating battery remaining power, and remaining flying time
- This module has BEC function, can output 5.3V DC, max 3A continuous current, supply stable power for flight control board
- The signal cable connector adopts Japan original connector, making the connection reliable
- The Mini APM Pro Power Module is a simple way of providing your Mini APM Pro with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Ublox Neo-7N Specification:
- With shell, the cables are fixed and cannot be moved, can connect with Mini APM Pro
- Internal core of new version surpasses 6M, compare favourably with 6H
- Cold start positioning time is less than 40 seconds
- Warm start positioning time is less than 5 seconds
- Positioning accuracy is 2m
- NEO-7N is of high performance, quick research, high positioning precision, very rstable
- for APM Pro

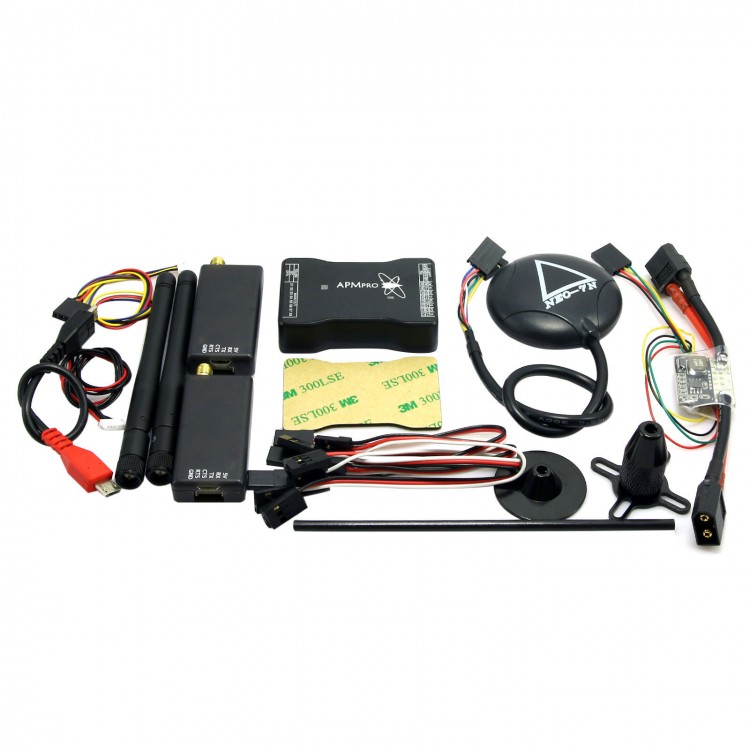

Package Include:
- Mini APM PRO flight control x 1 (including shell)
- PWM dupont cable x 4
- 3M adhesive paste x 1
- Ublox Neo-7N GPS for APM Pro  x 1
- Power Supply Module for Mini APM Pro  x 1
- V2 Dual TTL 3DRobotics 915Mhz 3DR Radio Telemetry  x 1
- GPS Holder x 1
