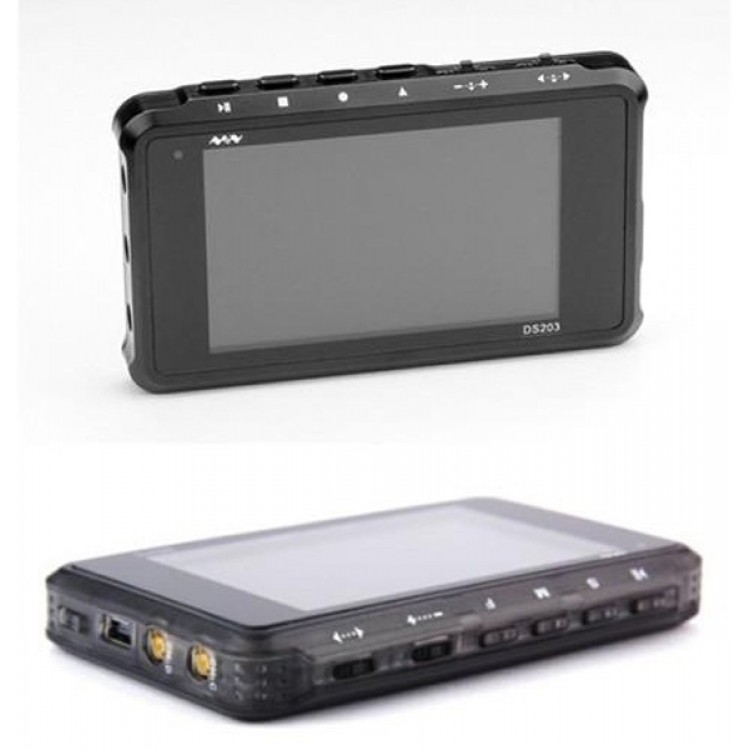

NEW Mini Digital Storage Color Oscilloscope Metal Handheld Scope DS 203 Nano W/ FREE Carrying Case

Description:
DS203 is a 5-track 4-wire electrical engineering tasks common digital oscilloscope. It's based on ARM Cortex M3 core CPU, FPGA realization of the management of the external ADC control and data cache, built-in 2MB U-disk that user can store the waveform and upgrade system firmware. Provides four application partitions, convenient user to load and upgrade max.4 different applications firmware.

Features:
- Pocket size and light weight
- Two 72Mhz analog channels and two digital channels
- Signal Generator
- Auto Measurement
- Various Triggering Option
- Easy waveform storage
- Firmware upgrade
- User applications
- Open source

SPECIFICATIONS:
- Analog channel * 2 : [CH_A]  [CH_B];
- Digital channel * 2 :   [CH_C]  [CH_D];
- Vertical Scale: 20mV-10V/div (x1 probe);
- Vertical solution: 8 bit ;
- Input coupling: AC/DC ;
- Max input voltage: 80Vpp (x1 probe);
- Storage: 4K per channel
- Software trigger type: edge, pulse, level (to be added)
- Hardware trigger type: edge
- Trigger source: CH1/CH2/EXT
- Test Signal generater: 10Hz to 1Mhz
- Storage: internal 2MB USB disk
- Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
- Test Signal generater: 10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw, Triangle wave
- Cursor measurement: Level, Voltage
- Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
- Sampling mode: real time
- Sampling rate: 1kSa/s - 72MSa/S
- Power: Lipo battery
- Dimension: 98 * 60 * 14.5
- Weight: 80g (without battery)

Please find the datasheet: http://www.analogtechnologies.com/document/DS203

PACKAGE INCLUDES:
- 1 EACH DS-203 oscilloscope (with assembled case)
- 1 EACH 1000mah lithium battery
- 2 EACH Probe
- 1 EACH USB cable
- FREE Carrying Case!
