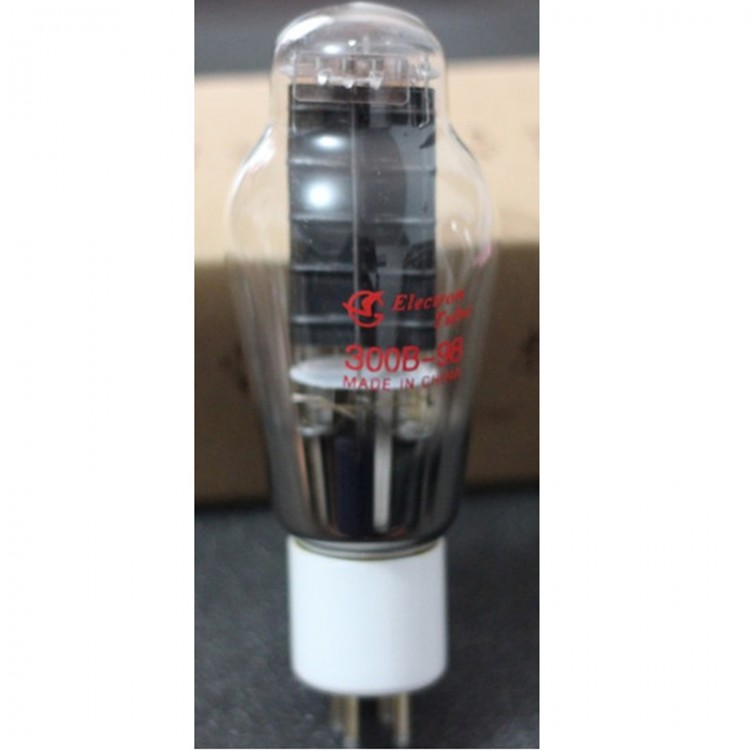

• New Shuguang 300B-98 White Porcelain Gold Pin Tube Audio Vacuum Tube HIFI Valve for Amplifier

New Shuguang 300B-98 White Porcelain Gold Pin Tube Audio Vacuum Tube HIFI Valve for Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$80.14
  • Price in reward points: 801 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $78.54 $76.93 $74.53 $71.32 Contact US
Quantity:

New Shuguang 300B-98 White Porcelain Gold Pin Tube Audio Vacuum Tube HIFI Valve for Amplifier

Description:
- 300B Series: Straight heating cathode middle power double tridoes used in the amplifing of A1. It is adapt to be used in audio frequency which needs the output power is 100W.
- 300B-C long-life design, use pure graphite anticathode and plate dissipation power can reach 60W. If you adjust the electrical route properly, single tube can amplify A1, and can get the higher output power than 20W.

limit rating:

- Plate voltage: 480V
- Plate dissipation power: 40W

Cathode current:
- Partial voltage: 100 mA
- fixuppartial voltage: 70 mA

Capacitance between poles:
- Input capacitance: 9PF
- Output capacitance: 4.3PF
- Transroute capacitance: 15PF

Static state parameter:
- Ua: 300V
- -Ug:  60 V
- Ia: 60mA
- Gm: 5.5mA/V
- Ri: 0.7 KOhm
- Pout6.6W
- Muon: 3.85

Commend parameter:
200V----33 ---29.5 --77
200V--- 45 --41.5 --20
250V-----46-- 42.6-- 74
250V--- 57 --53.6 --22
300---60-- 56.5 --68
300---70-- 66.5-- 23
400---86-- 82.5-- 68
400---98-- 94.5-- 19
Limit parameter: 450---100-- 96.5--- 60

Package included:
- 1 x Shuguang 300B-98 Tube
