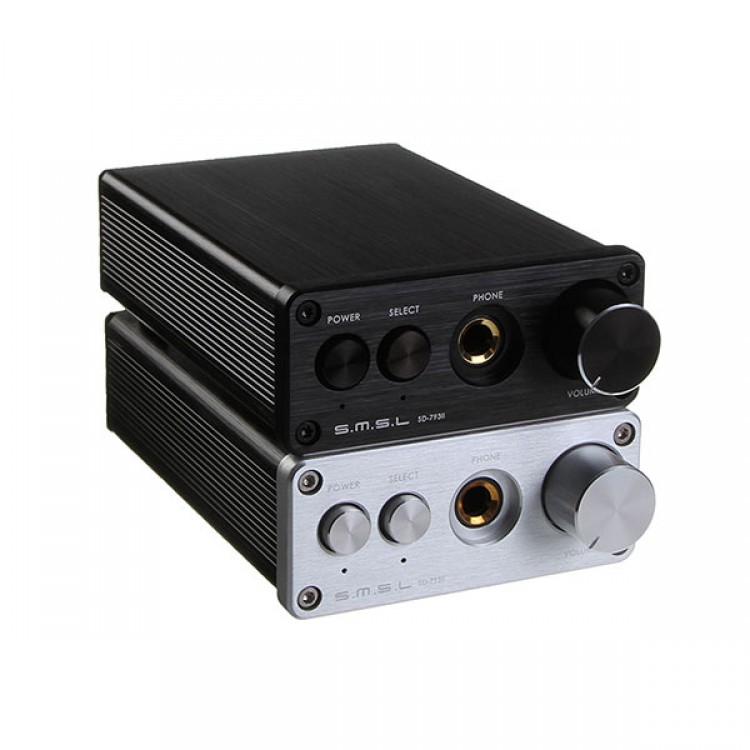

NEW SMSL SD-793II DIR9001 PCM1793 OPA2134 DAC Headphone Amp Toslink Coaxial

Availability: In stock, usually dispatched in 1 business day

  • Price:$64.99
  • Price in reward points: 650 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.69 $62.39 $60.44 $57.84 Contact US
Quantity:

NEW SMSL SD-793II DIR9001 PCM1793 OPA2134 DAC Headphone Amp Toslink Coaxial

Product Description:

SD-793II is SD-793 upgraded version
DIR9001 + PCM1793 + OPA2134 Coax/Optical input
SMSL SD-793 using the current top digital receiver chip DIR9001, the maximum signal reception 24bit/96K.
DIR9001 the industry's lowest jitter digital audio receiver.
DAC decoding using the world's best D / A decoder chip one of the PCM1793 (192K/24BIT of digital to analog converter chip).

Description :
- Signal Input : Optical, Coaxial
- Signal Output : RCA 2 Channel Output
- Digital Receiver : DIR9001
- DAC Chip : PCM1793
- OPA2134 and WIMA caps
- Print : Laser Carve
- Case : Aluminium
- Power supply :  DC12V

The technical indicators
- Input interfaces: coaxial / Optical (with switch)
- Input Frequency: 44.1,48,96 KHZ/16/24BIT
- SNR:> 113db
- Dynamic Range: 105db
- Distortion: 1KHZ% 0.0006 following
- Rated output: 1.7VPP
- Frequency response :20-20KHz (-0.2 dB)
- Total power <8W
- Earphone output power: 65mW @ 16?; 130mW @ 32?
- Headphone output distortion: 0.01% THD + N _AT_ 100mW/32?
- Machine size: 128 * 77 * 35mm (including protruding parts)
- Weight: 0.5Kg
- Configuration: SD-793II x 1, the manual (in English), Japan PSE certification power x 1
- Voltage: 100-240ACV global power

User Guide :

- Connect Input, Output cable, Power on with (DC12V) power adapter
- Switch on
- Press input switch to shift optical  & Coaxial input as nessceary
Switch :
Power Switch -- On / Off
Input Switch -- Optical  / Coaxial
Indicator LED :
Power  -- Power On
Signal -- Light on means no signal
Input  -- Optical  / Coaxial  input ( 2 color )
