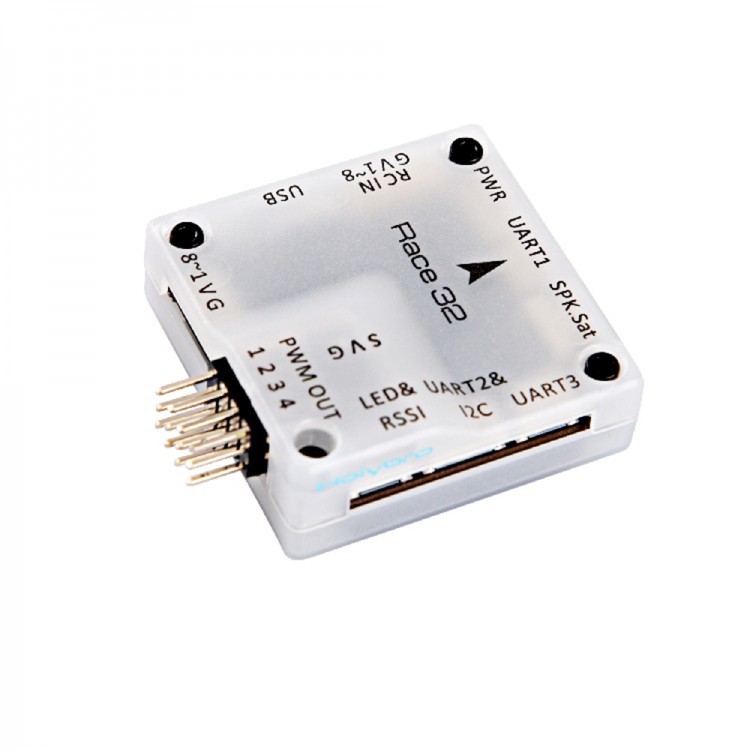

NEW SP Racing F3 RACE32 Quadcopter Racing Drone Flight Controller Naze32 for FPV
Features:
- Hybrid plug setup, JST plugs and through holes for pin connectors. No compromise on ports. Full feature support of all modules, all at the same time.
- Black box flight log recorder – high capacity on-board storage for easy tuning optimization, flight replay, and troubleshooting.
- Next-generation STM32 F3 processor with faster ARM-Cortex M4 core with floating point hardware unit for efficient flight calculations. Loop times are up to twice as fast as previous-generation STM32F1 based boards.
- Stackable design - perfect for integrating with OSDs and power distribution boards.
- All plugs are located on the same side of the board for a more space-efficient design.
- 4 PWM 3Pin though-holes connectors, 8 PWM JST Plug for ESCs, Servos and legacy receivers. Full support for OneShot ESCs.
- Supports SBus, SumH, SumD, Spek trum1024/2048, XBus, PPM, PWM receivers. Built-in inverters.
- Dedicated output for programmable LEDs.
- PWR ports for voltage and current.
- Sonar support for precision low-altitude position hold.
- Buzzer port for warnings and notifications.
- Barometer mounted on the bottom of the board for easy wind isolation.
- Configuration of the flight controller via a cross-platform GUI (Windows/OSX/Linux).
- Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.
Specification:
- Size: 38x38mm
- Weight: 38.5g
Package included:
- 1 x SP Racing F3 Flight Controller
