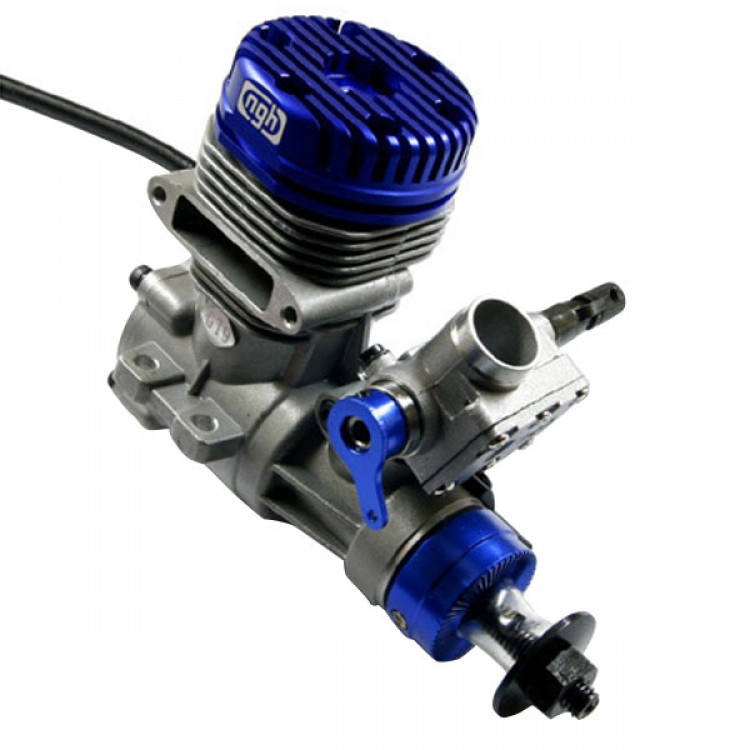

NGH GT9 Petrol Engine 9cc For Radio Control Airplane
Features:
- This is a new generation of small gas quality engine, it combines the advantages of both Nitro and gasoline engines, compact in size, light weight, fuel economy, reliable and powerful
Specification:
- Engine Type: Gasoline Two-stroke, Air Cooled
- Displacement (cc): 9.07cc
- Bore x stroke (mm): 23.35 x 21.2
- Carburetor: NGH made 60G needle with pump membrane
- Max output: 0.8HP@15000RPM
- RPM Range: 2600-15000RPM
- Ignition: Auto advanced Rcexl DC-CDI with special spark plug cap
- Spark plug type: 1/4 x 32 Rcexl
- Ignition Power: 4.8V
- Lubrication Oil: 2 cycle engine Oil API TC/JASO FD or better specs. (Mobil + M2T)
- Break-in fuel oil ratio: 25:1 (4%)
- General use fuel: 30:1 (3%)
- Recommended propellers: 10 x 6 to 12x6 (two blades)
- Weight: 425g (without ignition)
- 545g complete
Click the link below to learn more about this Engine
http://www.rcgroups.com/forums/showthread.php?t=1555659
