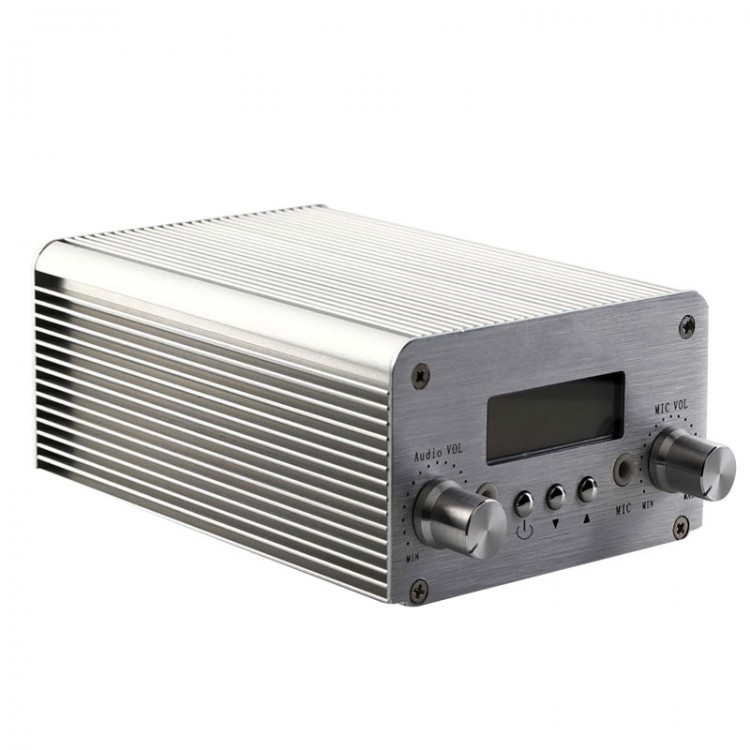

NIO-T15B 5W/15W FM Radio Audio Signal Amplifier Transmitter Device Bluetooth 76mhz to 108mhz

NIO-T15B 5W/15W FM Radio Audio Signal Amplifier Transmitter Device Bluetooth 76mhz to 108mhz

Technology parameter:
- Working voltage:DC12V
- Working current:<2A
- Frequency range:76~108MHz
- Frequency stability:±10PPM
- Frequency step:100KHz
- Working temperature:-10℃~45℃
- Output impedance:50ohm
- Radio frequency output power:15W/5W
- Harmonic,clutter radiation:≤－50dB
- Audio distortion:0.3%
- Frequency response:50Hz~15000Hz
- Separation degree:≥30dB
- Input level:≤－15 ～15dBV
- FM deviation:±75KHZ
- SNR:≥60 dB
- Size:144x100x54mm
- Net weight:550g
- Gross weight:2.00kg

Operation
1.Switch
Standby mode,long press【】 button,step into normal working status.In working status,long press 【】button,it can go to standby mode.
2.Transmission frequency adjust
Short press【▲】or【▼】button,frequency100K step;
Long press【▲】or【▼】button,frequency 100K step.
3.Transmission frequency/stere mode adjust
Transmit stere mode adjust:short press 【】button,when the channel mode icon flashing,press 【▲】or【▼】to convert channel power adjust.Power adjust:short press【】,when the transmission power icon flashing,press【▼】to decrease power,press 【▲】to increase power.
Note:One signal mark is 1W;two signal mark is 6W.
4.Volume adjust
Rotate the audio knob/microphone knob clockwise,the volume increases;rotate the knobs counterclockwise,the volume decrease.
5.Temperature adjust
In standby mode,short press【】button three times,temperature displays.
6.Bluetooth switch on/off
In standby mode,short press【】button four times to step into bluetooth switch interface,press【▲】or【▼】to switch on/off bluetooth.ON--Switch on;OFF---Switch off.

Package List:
- 1 x Main unit
- 1 x Audio Cable
- 1 x Power supply
- 1 x Sucker antenna
- 1 x Vehicular drawbar
