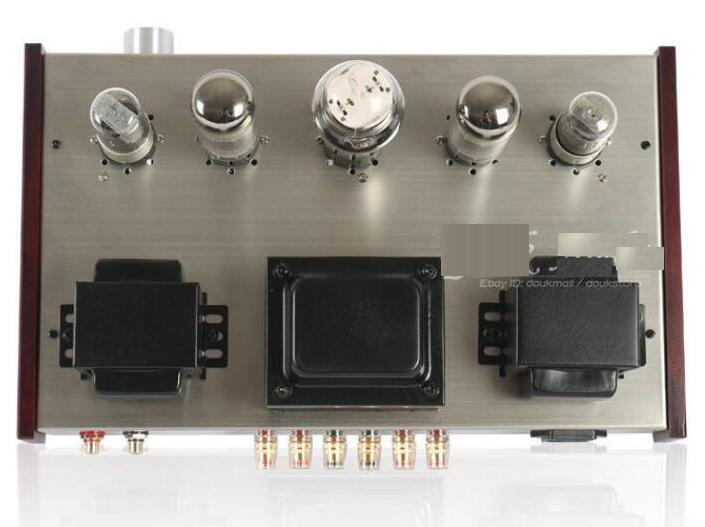

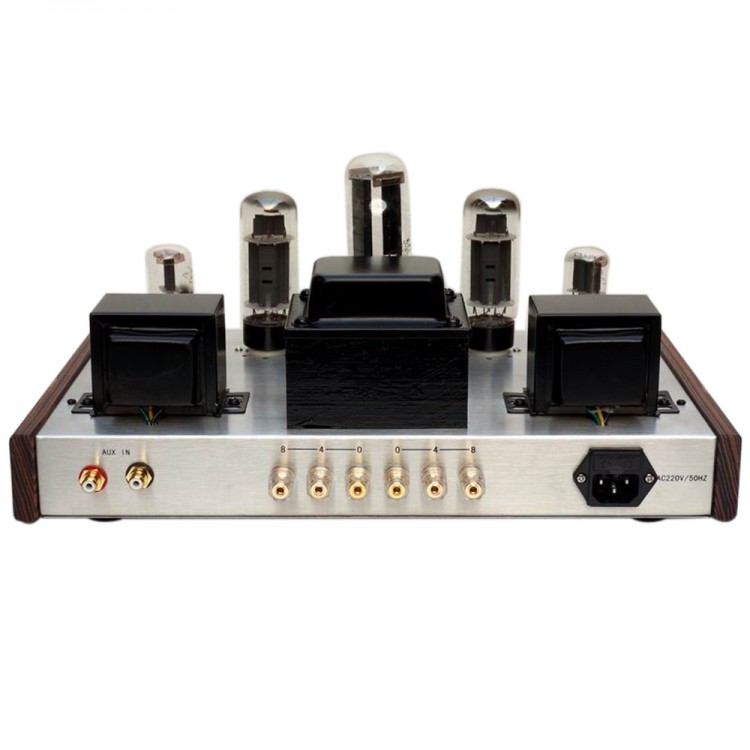

Nobsound EL34 Tube Amplifier Single-ended Class A Vacuum Stereo Audio HI-FI Amp
Basic technical parameters:
- Rectifier : 5Z3P (Class J military level tube)
- Preamp tubes : 6N9P ×2 (Class J military level tube)
- Power tubes : EL34B × 2
- Rated output power: triode connected 8Wx2(default), standard connection 12Wx2
- Frequency response : 20Hz - 25KHz
- Total power consumption: 115W
- Output transformer: import Japanese Z11 0.35mm(22x45/50), very important to Provide sufficient power
- Total Harmonic Distortion : 1% (1kHz)
- Input Sensitivity : 500mV - 2000mV
- Input impedance : 100KΩ
- Output Impedance : 4Ω, 8Ω, suit for about 10-100w 88db(>=) speakers
- SNR : 88dB
- Dimensions (W × H × D ): 380 × 160 × 230mm
- Weight: about 9Kg
- Input Voltage:110-120V、220V-240V/ 50-60Hz (pls mail us for the voltage you want!)
Product technology and materials:
- All tubes is military level new tube
- Rectifier and voltage tube are Seventies Class J military level tube
- Special HIFI levels capacitors:
- German WIMA red grade fever no electrodes capacitance
- Cathode capacitance: Philips audio-specific,
- All high-precision metal film resistors rings
- CLC filter inductor
- Power output transformer is Handmade
- Optimized routing and Extremely low noise
Package List:
- 1 x Tube amplifier
- 1 x Power cord
