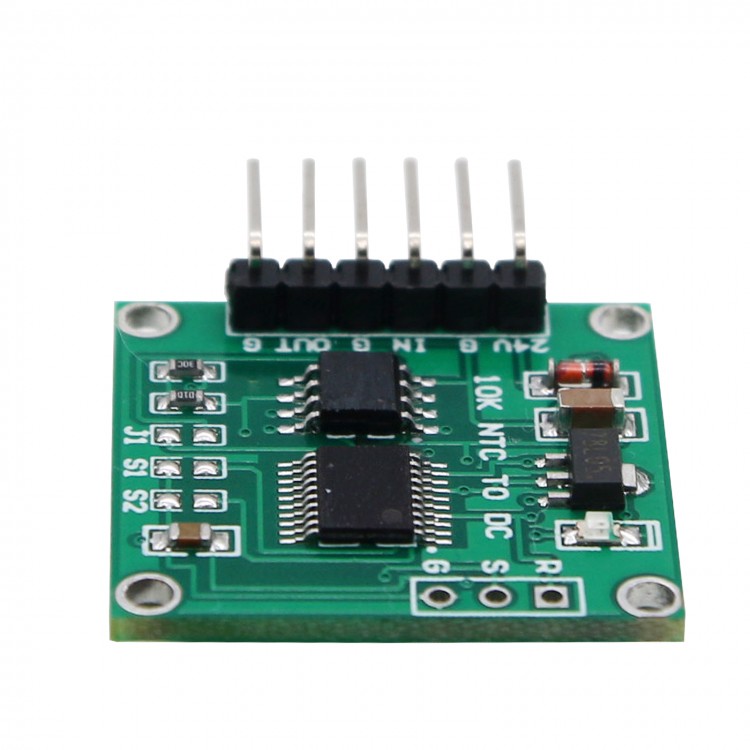

NTC Thermistor to Voltage 10K NTC to 0-5V 0-10V Linear Transformation Converter Temperature Transmitter Module
Description:
This is a linear conversion module. Convert the input NTC resistance signal into temperature (voltage signal) output through internal chip
There are two kinds of output voltage range for choice.
Specification:
- Operating voltage: 9-24V
- Input resistance: 10K NTC
- Output voltage: 0.00V ~ 5.00V/ 0.00V ~ 10.00V
- Operating range: -40~150 deg C
- Output: S2 pad on circiut board: Open circuit (output 0.00V ~ 5.00V); short circiut(output 0.00V ~ 10.00V), the default is open circuit.
- Size: 26*23*10mm
- Drive: No need for drive
- Application: Data collection and control devices
Module interface:
- 24V: Power supply cathode interface (9V ~ 24V).
- G: Power interface.
- IN: Resistor input interface (0~5000).
- G: power interface.
- OUT: Signal output interface (0.00V ~5.00V /0.00V ~ 10.00V).
- G: power ground interface.
Note: When output is 0.00V ~ 10.00V, power voltage should be 15V.
- Output (0.00V ~ 5.00V) resolution: 0.0263157V/ C (V / deg C)
- Output (0.00V ~ 10.00V) resolution: 0.0526315V/ C (V / deg C)
Calculate the measured temperature formula:
(output voltage (V) / resolution)-40 deg C = measured temperature (deg C).
Package included:
- 1 x Module
