Tags: NX2 Amplifier
|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$42.76||$41.88||$40.58||$38.83||Contact US|
- The NX2 has been designed for MP3/MP4/mobile phone/computer that can not get best effect of high impedance from the headset due to the low power to improve the power and sound quality.
- NX2 provides you smaller size than NX1 and built-in USB DAC, supports PC and most Android 4.0 and higher smart phone.

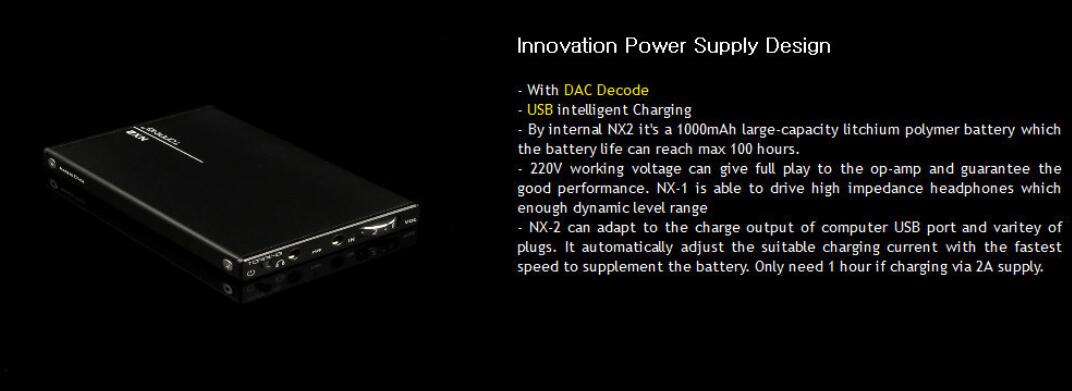

- Approx 100h playback time

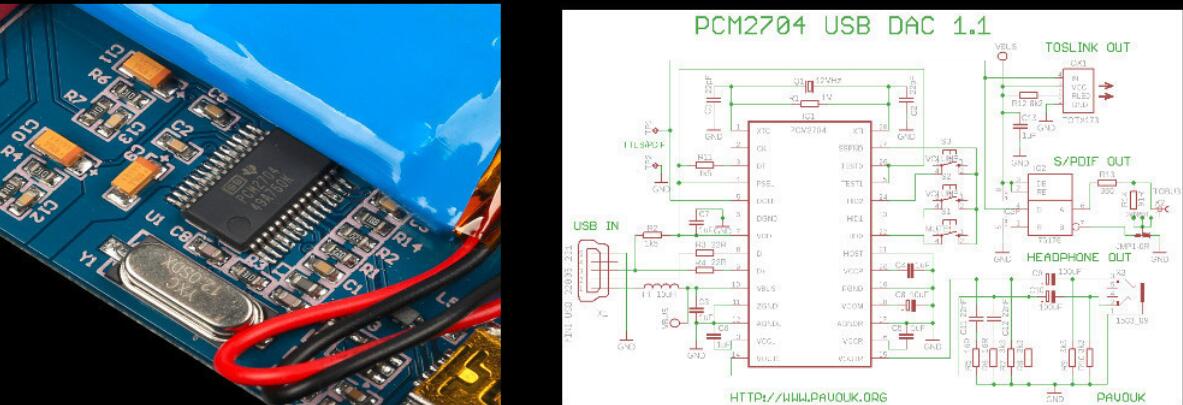

- Built-in 16bit 48kHz USB DAC, Support Android 4.0 and higher smart phones (Some models does not support)
- Approx 9.2CM x 5.9CM x 0.9CM small size
- Complies with CE, ROHS and FCC
- HIFI Electronic Components:
- ALPS Potentiometer
- WIMA Capacitance
- Analog input:1 x 3.5mm
- Headphone output:1 x 3.5mm
- Playback time :Approx 100 hours
- Net weight :Approx 71g (unit only)
- Dimensions:Approx 9.2CM x 5.9CM x 0.9CM

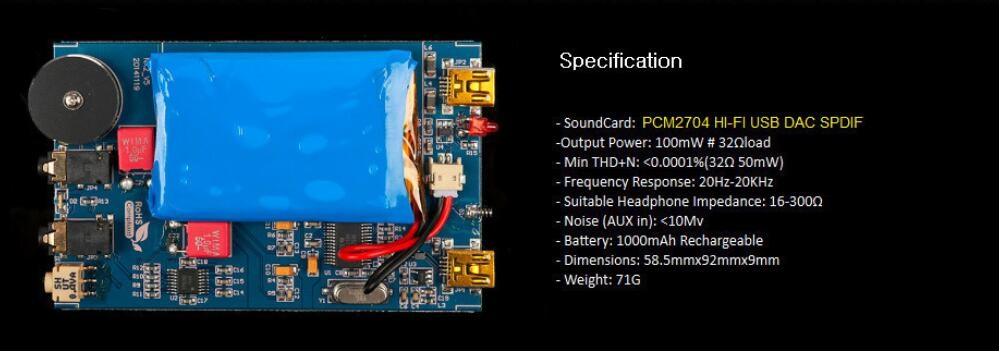

- Suitable Headphone Impedance:16-300Ω
- Maximum output power:100mW (RL=32Ω, THD+N=1%)
- Maximum output voltage swing:8.2Vpp
- Minimum THD+N:0.001% (RL=150Ω, Pout=10mW)
- THD+N(@1kHz):0.009% (RL=150Ω, Pout=10mW)
- Frequency response:20-20kHz±0.2dB
- Input sensitivity:1.55Vrms
User's manual download
NX2 doesn't work well or abnormal:
NX2 might need to be recharged.
Please check the player or the volume.
Please check the input and output cable
USB input will be cut off when using analog input.
- 1 x NX2 amplifier
- 1 x Audio cable
- 1 x USB charge cable
- 2 x Silicone Band
- 5 x Velcro
- 1 x User's manual
Note:Silicone Band (Use them to bundled with NX2 and the music player)
Velcro (Use ad mats;or fixed NX2 with the music player)
