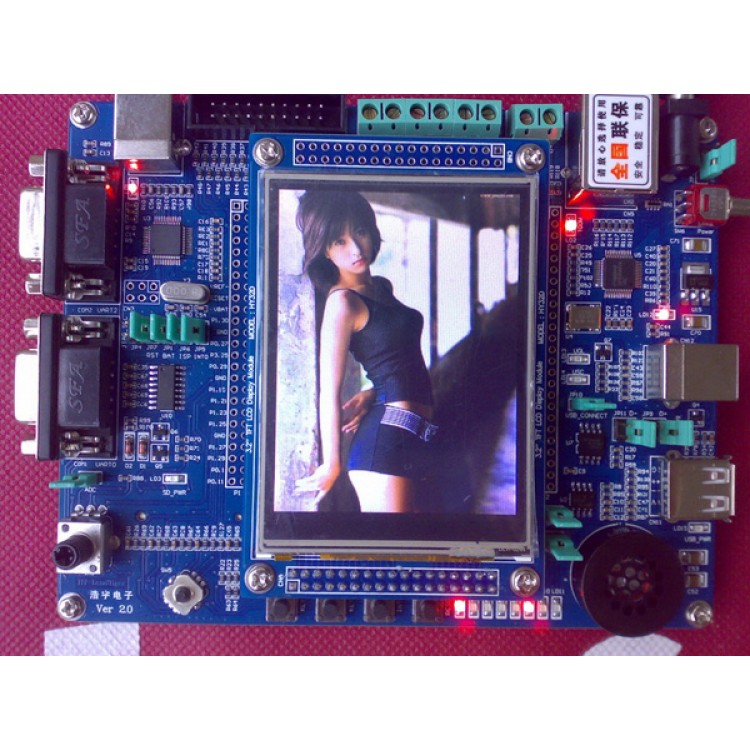

NXP ARM Cortex-M3 LPC1768 Development Board + 3.2" LCD

Land Rover development board with NXP LPC1768 ARM is a company based on second-generation ARM Cortex-M3 microcontroller core is designed for embedded system applications of high-performance, low-power 32-bit microprocessor for instrumentation, industrial communications, motor control, lighting control, alarm systems. Land Rover development board on-board USB emulator, supports USB2.0 Device, dual CAN interfaces, RS-485 interface functions. Land Rover development board supporting a wealth of routine and detailed information for users to quickly project development.

- 512KB on-chip Flash, to support ISP and IAP
- Processing rates 100MHz, and includes a support eight areas of memory protection unit (MPU)
- Built-nested vector interrupt controller
- AHB multi-layer matrix with 8-channel DMA controller, general-purpose (GPDMA) support the SSP, UART, AD / DA, timer, GPIO, etc., can be used for memory to memory transfers
- Standard JTAG test / debug interface and debug serial line and serial line tracking port option
- Simulation trace module supports real-time tracking
- 4 low-power modes: sleep, deep sleep, power-down, deep power-down
- Single 3.3V power supply (2.4V - 3.6V)
- Operating temperature: -40 ° C - 85 ° C
- Non-maskable interrupt (NMI) input
- On-chip integrated power-on reset circuit
- Built-in systems beat the timer (SysTick), to facilitate the operating system migration

Rich on-board resources:
- 2 X RS232 serial interface (using the serial cable, one of the serial ports supports ISP download)
- 2 X CAN bus communication interfaces (CAN Transceiver: SN65VHD230)
- RS485 communication interface (485 Transceiver: SP3485)
- RJ45-10/100M Ethernet interface (Ethernet PHY: DP83848)
- DA output interface (can apply USB sound card function, on-board speaker and speaker output driver)
- AD input (adjustable potentiometer)
- Color TFT LCD display interface (connected with  2.8" or 3.2" color TFT LCD 320X240)
- USB2.0 Interface, USB host and USB Device interface.
- SD / MMC card (SPI) interface (available with FAT12, FAT16, FAT32 file system)
- IIC Interface (24LC02)
- SPI Serial FLASH Interface (AT45DB161D)
- 2 user keys, 2 function keys and INT0 Reset key, 8 LEDs
- 1 joystick (5 -direction Joystick)
- Serial ISP download (no need to set jumpers), standard JTAG download, simulation debugging interface
- Integrated USB emulator/debugger: supports online debugging emulation, support for KEIL, IAR and other famous development environments
- Power supply by external power supply or USB 5V power input
- Leads all the IO out, convenient for external application circuit andsecondary development

Package included:
- 1 x NXP ARM Cortex-M3 LPC1768 Development Board
- 1 x 3.2" TFT LCD Module
- 1 x USB Cable
- 1 x Data CD(English Version) for all source code and applications


This is a original board,the fake 1768 board will have no "Ver 2.0" mark on its left-down side.
