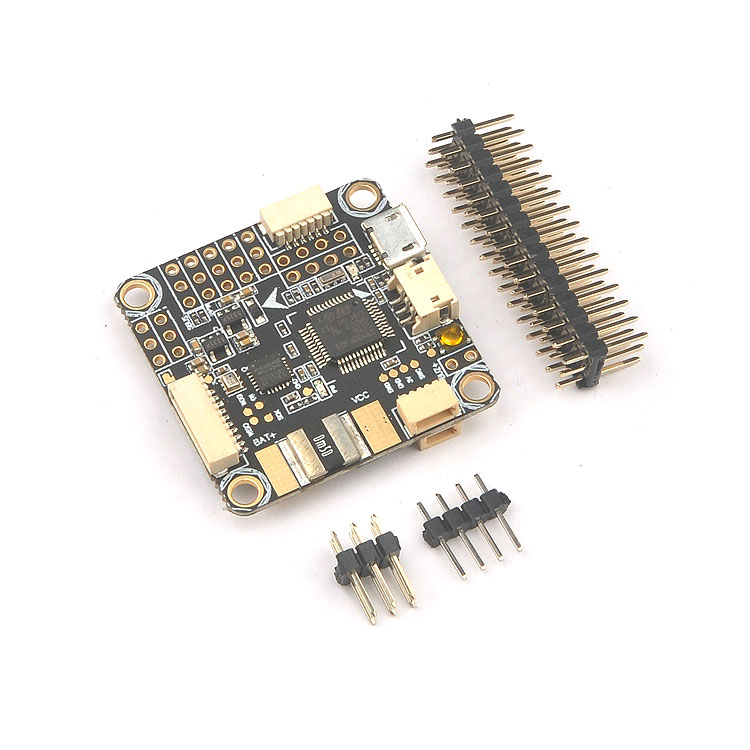

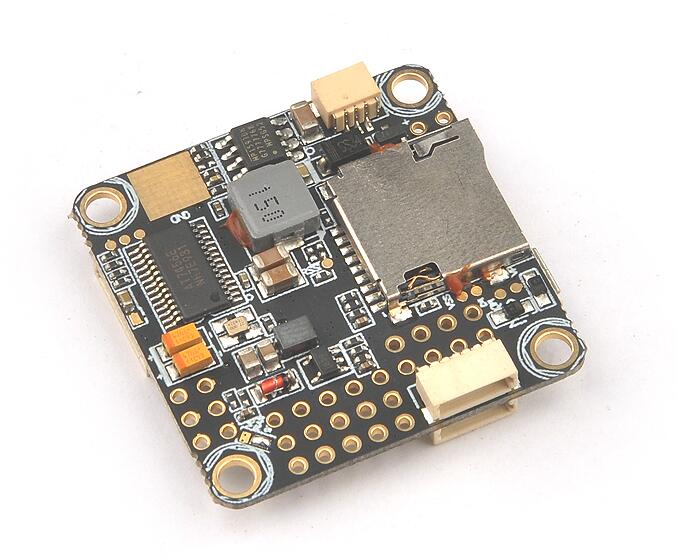

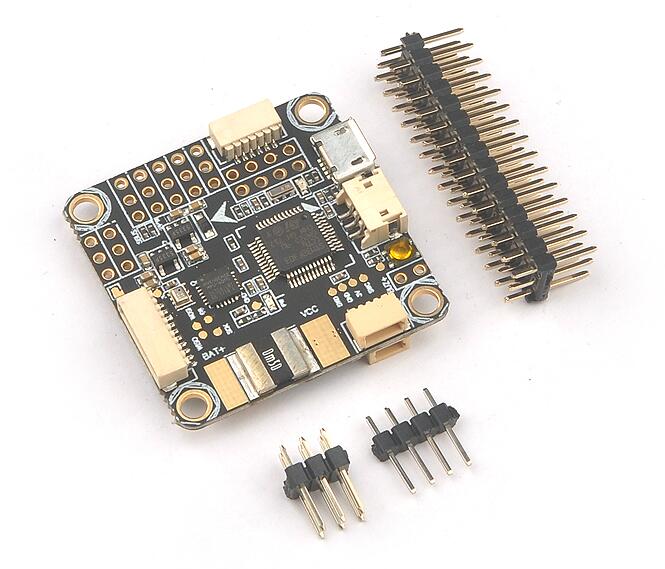

OMNIBUS F3 Pro V2 AIO Flight Control Betaflight Built-in OSD BEC Galvanometer for Racing Quadcopter
New Version OMNIBUSF3 Features:
- The flight control and OSD program integrated in MCU.You don't need extra SCM to control OSD.
- OSD parameter adjustment software and flight control parameter adjustment integrated.
- Input outut use standard interface,improve the assem convenience.
- MPU6000 sensor and connect by SPI bus,improving senor sampling rate and MCU master controller programm running frequency.
- Built-in power module BEC.
Basic parameter:
- Default firmware:betaflight_3.1.7_OMNIBUS
- Dimension:35x35mm

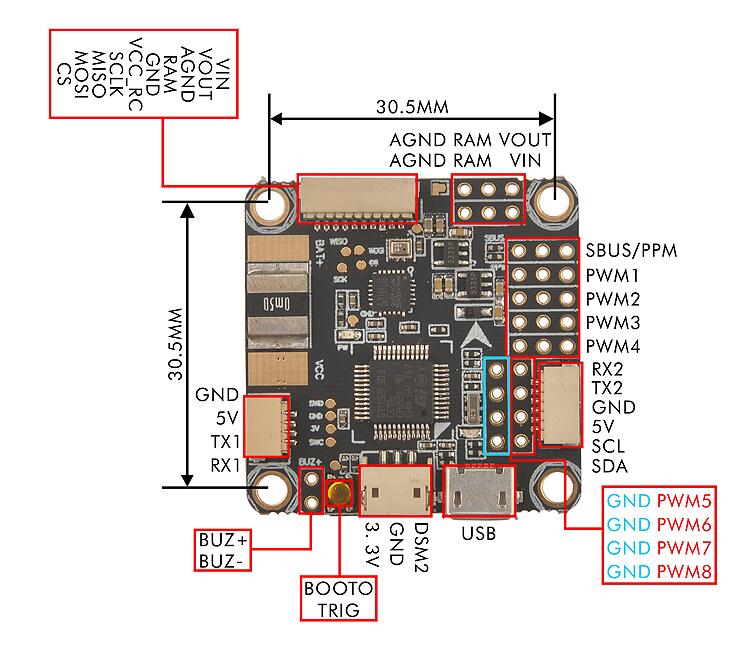

- Mounting hole:30.5x30.5mm

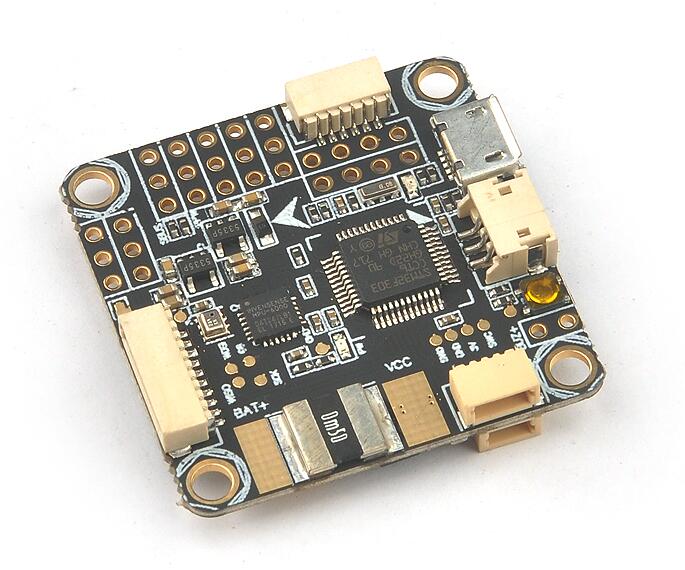

- STM32F303 MCU SCM
- Barometer:BMP280
- Six-axis sensor MPU6000,SPI connection
- Standard SD card slot
- The SCM control OSD chip through SPI bus DMS mode,faster speed
More details:Click here
Click here
Package List:
- 1 x OMNIBUS F3 Pro V2 AIO Flight Control
