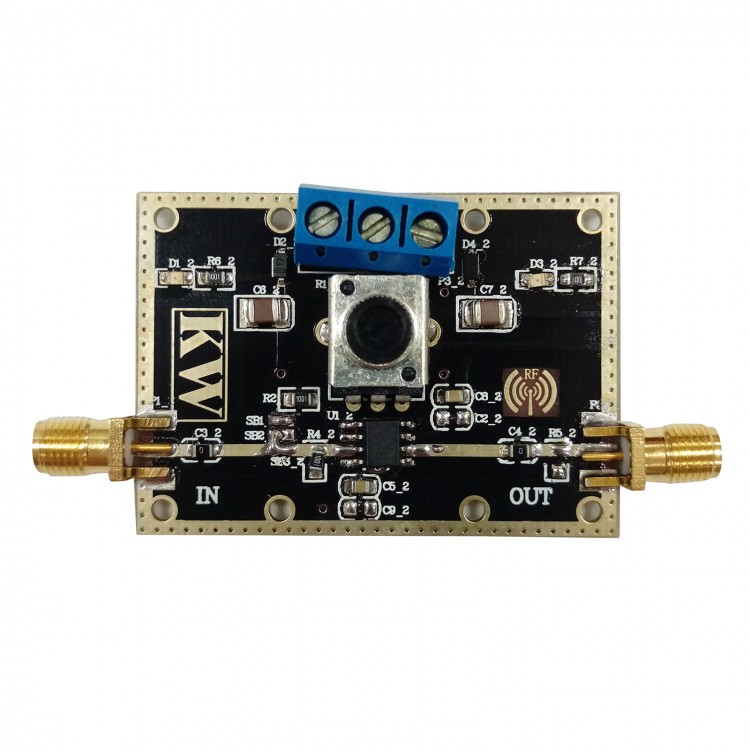

OPA1611 Operational Amplifier Module Audio Op Amps Dedicated Preamp for DIY
Feature:
- SUPERIOR SOUND QUALITY
- ULTRALOW NOISE: 1.1nV/√Hz at 1kHz
- ULTRALOW DISTORTION:0.000015% AT 1kHz
- HIGH SLEW RATE: 27V/us
- WIDE BANDWIDTH:40MHz (G = +1)
- HIGH OPEN-LOOP GAIN: 130dB
- UNITY GAIN STABLE
- LOW QUIESCENT CURRENT:3.6mA (Single), 7.2mA (Dual)
- RAIL-TO-RAIL OUTPUT
- WIDE SUPPLY RANGE: ±2.25V to ±18V
- SINGLE AND DUAL VERSIONS AVAILABLE
Application:
- PROFESSIONAL AUDIO EQUIPMENT
- MICROPHONE PREAMPLIFIERS
- ANALOG AND DIGITAL MIXING CONSOLES
- BROADCAST STUDIO EQUIPMENT
- AUDIO TEST AND MEASUREMENT
- HIGH-END A/V RECEIVERS
Specification:
- Size:50*36mm
- Power supply:+/-18V(max)
Package List:
- 1 x OPA1611 Operational Amplifier Module
