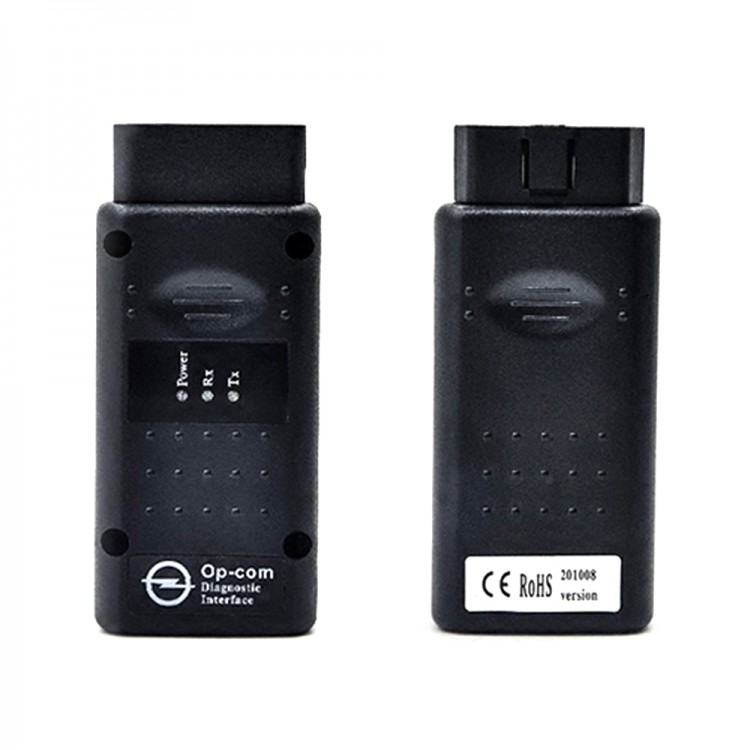

Opcom Op-com 2010Can OBD2 OPEL V1.45 Car Diagnostic Tool Auto Code Reader Support PC
Description:
- OP-COM - PC based Opel diagnostic
- VERSION: 201008
- OP-COM is a PC based diagnostic program.
Function:
- It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
- The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
- The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
- Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
- PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
- Fault codes will be shown with all available information
Full fault code text description:
- Full status information (Present, Not present, Intermittent)
- You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
- The program shows you measuring block information on many control module, you can choose anything from the list on your own.
- The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
- PIN6-PIN14
- PIN3-PIN11
- PIN1
- HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
- MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
- SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
Package list:
- 1 x OP COM Interface
- 1 x USB Cable
- 1 x Software and Drivers CD
