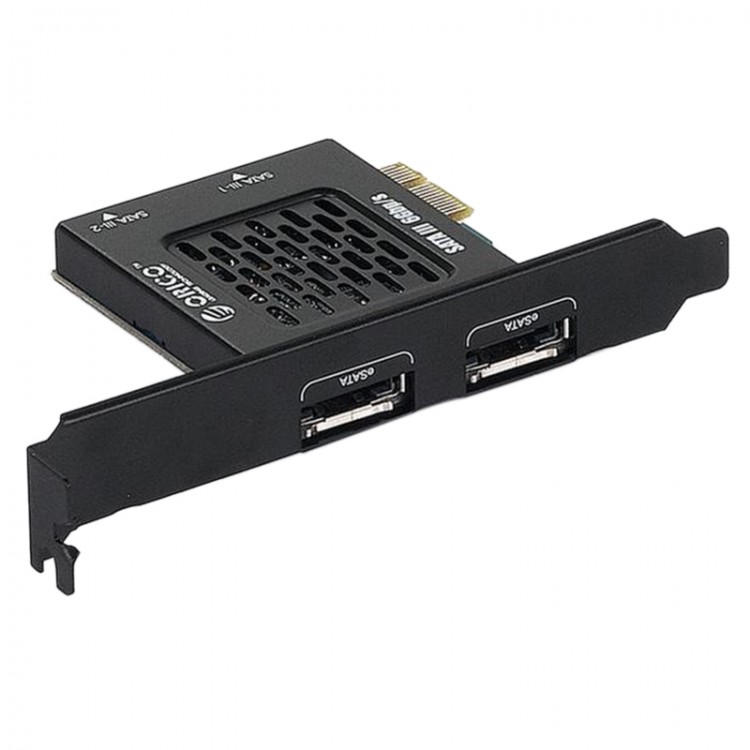

ORICO PAS3064-2S2E Double SATA3.0 & eSATA3.0 Ultra High Speed 6Gbs PCI-E Desktop Expansion Card

ORICO PAS3064-2S2E Double SATA3.0 & eSATA3.0 Ultra High Speed 6Gbs PCI-E Desktop Expansion Card

Description:
ORICO PAS3064-2S2E with PCI-E expansion slot 2 SATAIII (6Gbps) and 2 eSATA (3Gbps) interface, Conform to PCI-Express 2 and SATA3,
Support IDE/AHCI mode, support hot swappable,designed for personal users, Small and medium-sized enterprise users, satisfy your desire for SATAIII interface speed

Note: Card can be connected with eSATA3.0/SATA3.0, Suitable for desktops and requires at least a PCI-E 1X motherboard slot, also support PCI-E 4X, 8X,16X slot

Specification:
- Product Name: Desktop PCI-E To SATA3.0 Extension Card
- Product type: ORICO PAS3064-2S2E
- Extended interface: eSATA3.0*2 (external) / SATA3.0*2 (internal)

Features:
- SATA3.0 data interface expansion, suport more storage device
- Conform to PCI-Express 2 and SATA3
- SATAIII maximum transfer rate up to 6Gbps, downward compatible with SATA I and SATA II
- PCI-Express 2.5G/S rate full duplex channel
- SATA support hot plug, plug and play
- Support IDE/AHCI modes
- Support WindowsXP/Vista/Win7/Win8

Parameters:
- Product name: PCI-E To SATA III Extension Card
- Model: PAS3064-2S2E
- Product interface: PCI-Express
- Product size: 120*79*18mm
- Product weight: 53.5g
- Product interface: 2*eSATA interface, 2*SATA interface
- Support system: WindowsXP/Vista/Win7/Win8
- Safety certification: CE and FCC approval
- Operating environment: 0 / 50 (Using) -20 / 70 (Save)

Package included:
- 1 x PCI-E to SATA3.0 Expansion Card
- 1 x CD Driver
- 2 x Mounting Screws
- 1 x User Manual
