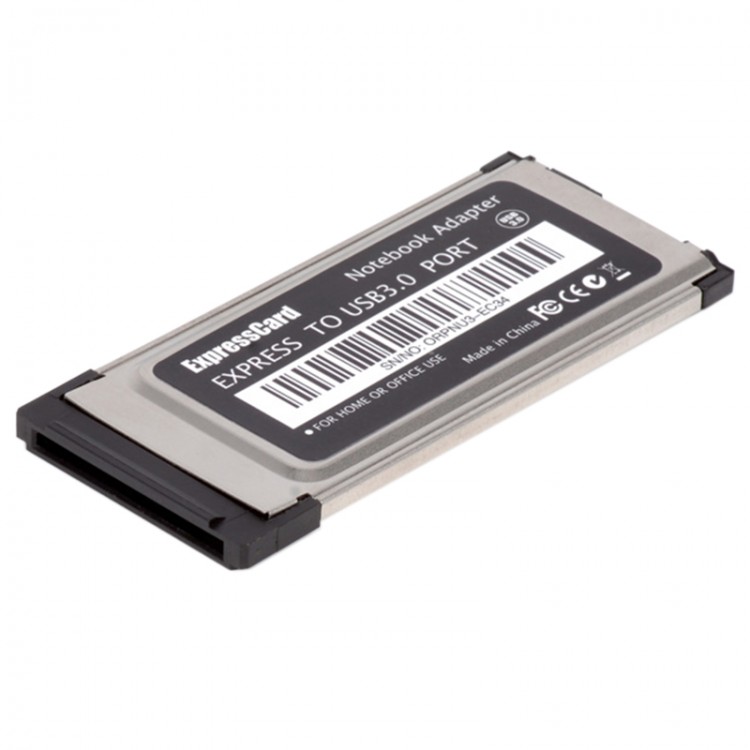

ORICO PNU3-EC34 Laptop Single Port Express 34MM to USB3.0 Port Express Card NEC Chip

ORICO PNU3-EC34 Laptop Single Port Express 34MM to USB3.0 Port Express Card NEC Chip

Description:
1) Express 34 mm turn USB3.0 expansion card  nec chip
2) Product interface:Express 34 mm to USB3.0
3)This expansion Card adopts the latest NEC chips, for laptop computers ExpressCard 34 mm slot, extended a USB3.0 it can let you step fast installation can obtain a USB3.0 ports, down support USB2.0 port - simple Card will insert your notebook computer Card Type II (Express the second generation interface) in the slot. The card is to plug and play, completely compatible Windows98SE, 2000,, Me, XP, VSITA, WIN7. You can connect to the scanners, printers, high-speed storage equipment and digital camera, MP3 etc.

Features:
- It completely accords with ExpressCard standard 1.0
- Completed single line (or x1) PCI Express
-  Support the width 54MM or 34MM Express Card slot
- Complies with Universal Serial Bus cable 3.0 Revision 1.0
- Conform to the Xhci (extensible host controller interface) Specification Revision 0.95.
- Support USB3.0, USB 2.0 and USB 1.1 operating equipment meanwhile
- Support the USB data transmission rate: 1.5/12/480/5000 Mbps
- Extend 1 external USB3.0 system port
- Meet USB3.0 5 V/900mA output power level.
- Hot swap function, can connect / disconnect devices without powering down the system
- This driver supports Microsoft Windows 2000, XP, and Vista 7 operating system
-  Certification by CE, FCC, RoHS and WQHL Microsoft .

System requirement:
- Support Windows 2000/XP/2003/Vista/7 (32/64)
- Require a 54mm or 34mm Express Card slot
- Operating temperature: 0-57 degree C
- Operating humidity: 5%-95%
- Operating voltage: 3.3V-5.0V
- Storage temperature: -20~85 degree C

Package included:
- 1 x USB3.0 Express Card
- 1 x Manual
- 1 x ORICO cd
