Original Boscam 5.8Ghz 400mW 8 Channel FPV Audio Video Transmitter&Receiver TS353+RC305 For RC Car MultiCopter 4Km Range

Original Boscam 5.8Ghz 400mW 8 Channel FPV Audio Video Transmitter&Receiver TS353+RC305 For RC Car MultiCopter 4Km Range

Features:
- FPV 5.8G 400mW AV transmitting module, a wonderful choice for avoiding interference for who using 2.4G radio system
- Dimension and weight is similar to 200mw TX, yet the range is extended.
- Compare to the 500mw version which with cooling fan installed, the 400mw version is lighter, and consuming less power (longer in-air time).
- Also eliminated vibration to video transmitting system caused by cooling fan.
- The 400mw version is a well balanced solution among weight, dimension, range, power consumption etc

Specifications:
-  Item Name:  FPV 5.8G Transmitter TS353
-  Video Format supported: NTSC/PAL
-  Working Frequency: 5645-5945Mhz
-  Antenna Connection: SMA-pin
-  Power Input: 7-15V (3S Lipo suggested, does NOT support 4S Lipo)
-  Transmitting Current: 220mA

Working Frequency :

 CH1: 5705
 CH2: 5685
 CH3: 5665
 CH4: 5645
 CH5: 5885
 CH6: 5905
 CH7: 5925
 CH8: 5945

RC305 Receiver Specifications:
Includes an additional AV output for video recording while using FPV goggles.


Features:
- Channels: 8
- Receiver operating voltage: 5VDC
- Operating temp: -10~85C
- Video bandwidth: 0~8.0MHz
- Audio frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input impedance: 75Ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input impedance: 10K/Ohm
- Weight: 43g
- Antenna connector: RP-SMA
- Dimensions: 61x52x13mm

Channels
- 5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ

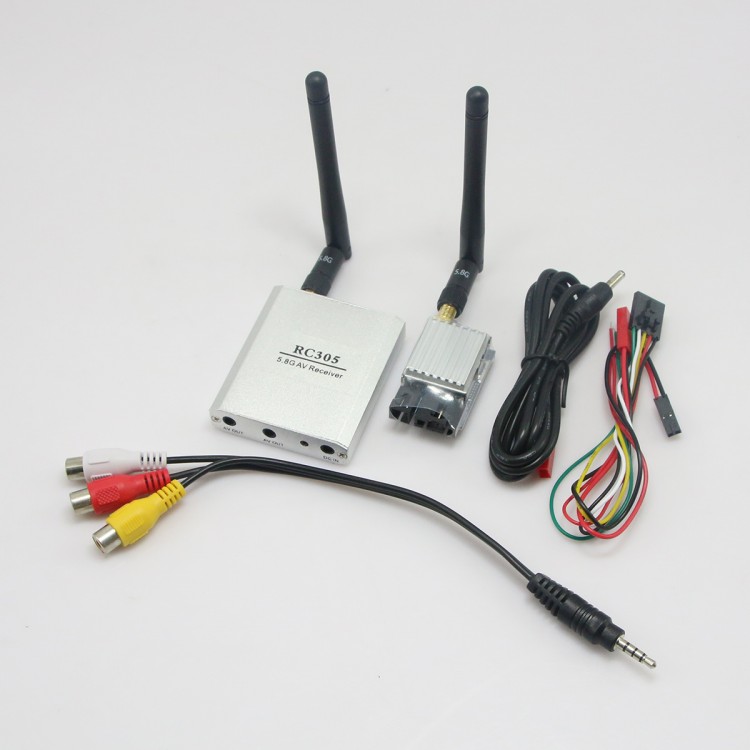

Package list:
- 1 X 5.8G 400mW transmitter(TS353)
- 1 X 5.8G  receiver(RC305)
- 2 X 5.8G antennas
- 1 X AV-OUT cable
- 1 X camera in data cable
- 1 X Power cable for transmitter
- 1 X Power cable for receiver
- 1 x  English Manual
