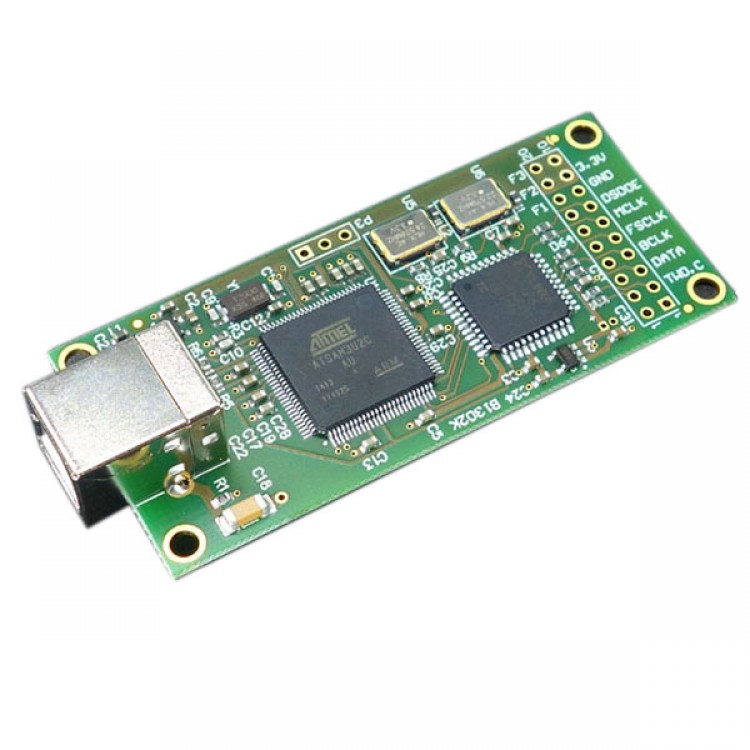

Original Imported Italian Amanero usb iis Digital Interface Support dsd512 32b 384k
Description:
Supported Sample Rates
44.1Khz 48Khz 88.2Khz 96Khz 176.4Khz 192Khz 352.8Khz 384Khz
Output Format
I2S 32bit or DSD64,DSD128 - On Windows DSD256,DSD512 too
Oscillators
2 Low Phase Noise TCXO
Dimension
30x69mm
Note
DSD output enable line to signal an incoming DSD stream.The card supports output mode only.
NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant kernel.
KS/Wasapi/WDM/ASIO Drivers for MS OS XP to Win8 32-64bit included at no fee.
Upon Request
The user can provide a custom USB VID-PID, a custom Device Name and a custom CodeSign
Certificate for WDM drivers. For old applications the max sample rate can be configured to 192Khz
