Orignial Chip Small Car Motor Drive L298N Motor Drive Module H Bridege Drive Board 4 Channel Drive

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.29
  • Price in reward points: 123 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.04 $11.80 $11.43 $10.94 Contact US
Quantity:

Orignial Chip Small Car Motor Drive L298N Motor Drive Module H Bridege Drive Board 4 Channel Drive

Description:

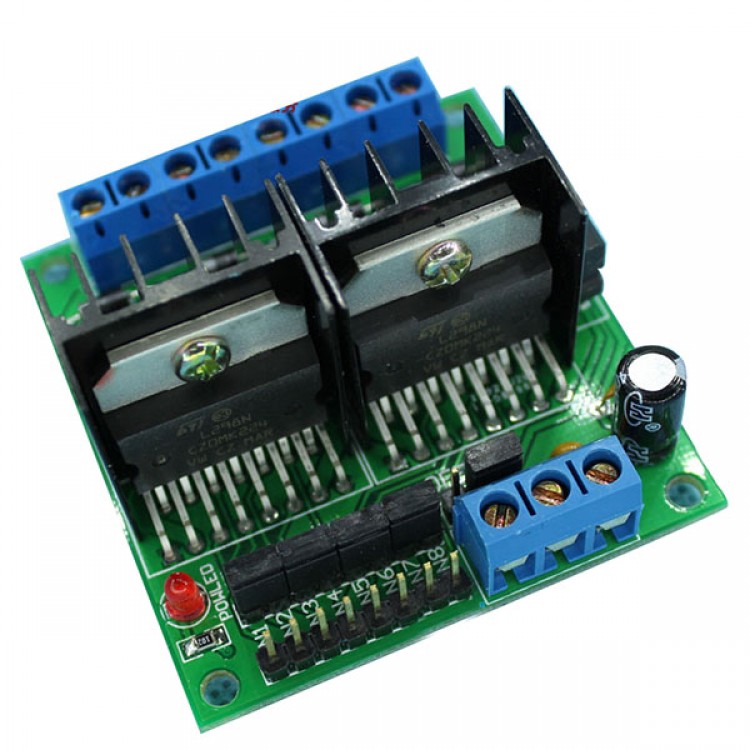

- This driver integrates two L298N chip, at the same time, it can drive four DC motor, realizing CCW CW and the control of motor speed.
- Module has L7905 voltage drop chip, if it drive the motor above 7V, it can output 5V power for control terminal

Parameters:
- Module size:  5.2*5.1cm
- Max consumption: 50W (when temp=75 degree, single chip L298N 25W)
- Peak current: Io 4A
- Logic terminal power supply range Vss: 5----7degree (can take power from board 5V)
- Logic part working current range: 0---36mA
- Control signal input voltage range: low level: -0.3V≤Vin≤1.5V , High level: 2.3V≤Vin≤Vss
- Enabling signal input voltage range: low level: -0.3≤Vin≤1.5V(control signal not available)
   high level: 2.3V≤Vin≤Vss(control signal available)
- Storage temp: -25℃~+130℃
- Module weight: 46.3g
