Oversky MX Nano OSD Micro Firmware V1 for APM Flight Control RC Multicopter

Description:

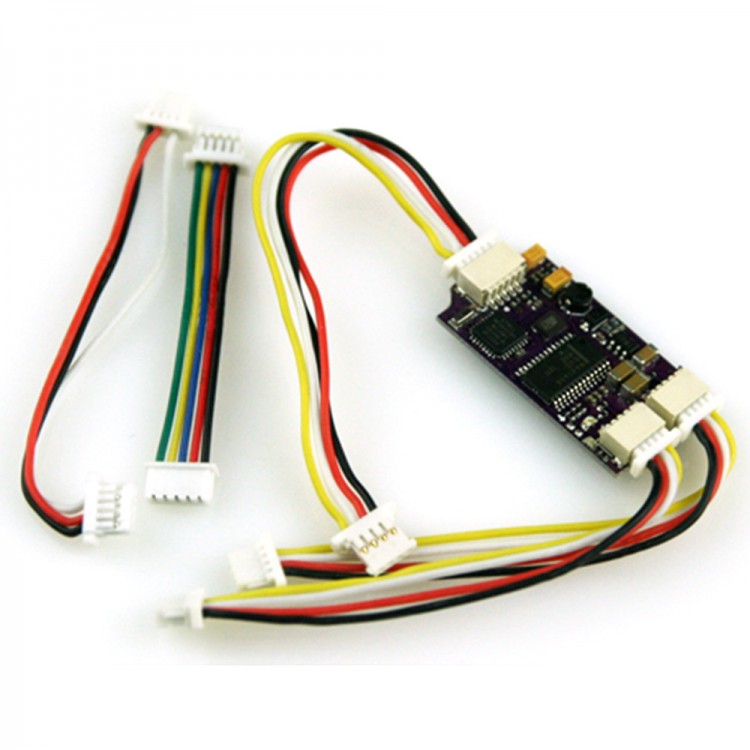

Nano OSD MX is currently the world's smallest size, the lightest weight OSD. It adopts the plug and play (free welding) design, no trouble of welding. It has two independent power supply:  5.0V, supply power to Atmega and OSD digital circuit part  and byFTDI joints or other 5.0V power; another one is from the circuit board micro DC / DC voltage stabilizing circuit 5.0V is for the OSD part of analog circuit power supply, through the video output connector to take power. In addition, Nano OSD MX is also compatible with MnimOSD and KVTEAMOSD firmware.

Specifications
- Size: 30.0x16.0x3.8mm
- Weight: 1.7g
- Digital part of the supply voltage: 4.8~5.2V
- DC/DC voltage regulator circuit supply voltage: 6.0~18.0V
- FTDI connector: 5P 1.0mm JST
- Video input / output connector: 3P 1.0mm JST

Video format:
MX Nano OSD recognizes camera format automatically.
If no camera, can select the output format without camera on the PAL welded point. The default is N. PAL output when welded PAL.

Note:
- MnimOSD firmware is for APM and Pirate flight control; KVTEAMOSD  firmware is for MWC and Pirate flight control;
- When using MnimOSD, MX Nano OSD is obly for APM, but cannot be used to connect GPS alone, only can read mavlink protocal;
- If used lonely, should connect the TX RX together to the APM; If used with telemetry, connect the RX, TX can be disconnected;
- When using MX Nano OSD, should supply power to the camera first, or supply power to OSD and camera st the same time, otherwise will not setect the format to display the image or OSD information.

Package included:
- 1 x MX Nano OSD
- 1 x Video output cable (15cm)
- 1 x Video output cable(15cm)
- 1 x Connection cable (15cm)
