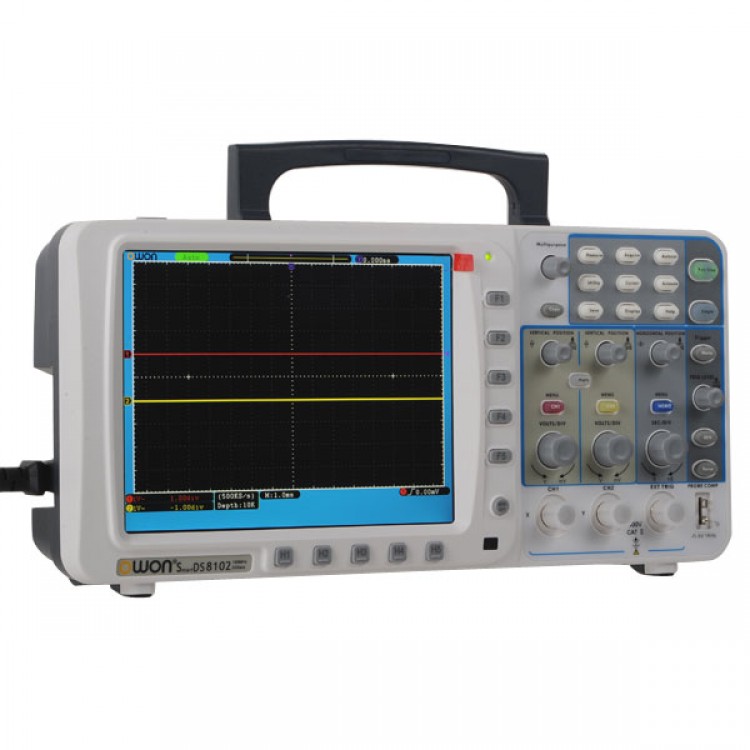

OWON Digital Storage Oscilloscope SDS8202 2G/s 200MHz 3CH 8" LCD


Features:

- Deep Memory Digital Storage Oscilloscope
- Dual channel, 10M points on each channel for the Record length
- Autoscale function
- Smart design with easy workplace
- 8 inch high definition TFT display (800 x 600 pixels)
- Built-in FFT function
- Pass/Fail Function, optically isolated Pass/Fail output
- Waveform record and playback
- Various triggering function
- USB communication ports
- Built-in Chinese and English help system
- Multiple language user interfaces

Specifications:

Model  SDS8202
 Bandwidth  200MHz
Sample rate(Real time) 2GS/s
 Horizontal Scale(S/div)  1ns/div~100s/div,step by 1~2~5
 Rise time (at input, typical)  ≤1.7ns
 Channels  Dual
 Display  8" color LCD,TFT display,800x600 pixels,65535 colors
 Dimension  340mm×155mm×70mm
 Weight  1.8kg



 Model  SDS8202
 Vertical System Vertical resolution (A/D)  8 bit Resolution (2 channels simultaneously )
Vertical sensitivity  2mV/div~10V/div(at input)
Displacement  ±1V(2mV~200mV), ±10V(500mV~1V),±100V(2V~10V)
Analog Bandwidth  200MHz
Single bandwidth  Full bandwidth
low frequency  ≥ 5Hz
Rise time (at input, typical)  ≤1.7ns
DC gain accuracy  ±3%
DC accuracy(Average)  Average>16: ±(3% rdg + 0.05 div) for ΔV
 Measurement  Cursor measurement  ΔV and ΔT between cursors
 Automatic measurement  Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty
 Waveform Math  +, -, ×, / ,FFT
 Waveform storage  15 waveforms
 Lissajou’s figure  Bandwidth  Full bandwidth
 Phase difference  ±3 degrees
 Communication interface  USB,support USB flash disk storage,LAN
 Trigger  Trigger level range  ±6 divisions from screen center
 Trigger level accuracy  ±0.3div
 Horizontal Trigger displacement  Pre-trigger: 655 div,Post-trigger: 10 div
 Trigger Holdoff range  100ns~10s
 Edge trigger  Rising, Falling
 Pulse Trigger  Trigger status  Positive pulse: >, <, =  negative pulse: >, <, =
 Pulse width  30ns~10s
 Video Trigger  NTSC, PAL, SECAM
 Slope Trigger  Trigger status  Positive pulse: >, <, =  negative pulse: >, <, =
 Time setting  30ns ~10s
 Alternate Trigger  Edge, Pulse, Video, Slope
 Waveform
record
 Waveform quantity  1~1000
 Interval time  1ms~1000s
 Display  8" color LCD,TFT display,800x600 pixels,65535 colors
 Power Supply  100~240 VAC RMS, 50/60Hz, CAT II
 Power consumption  < 18W
