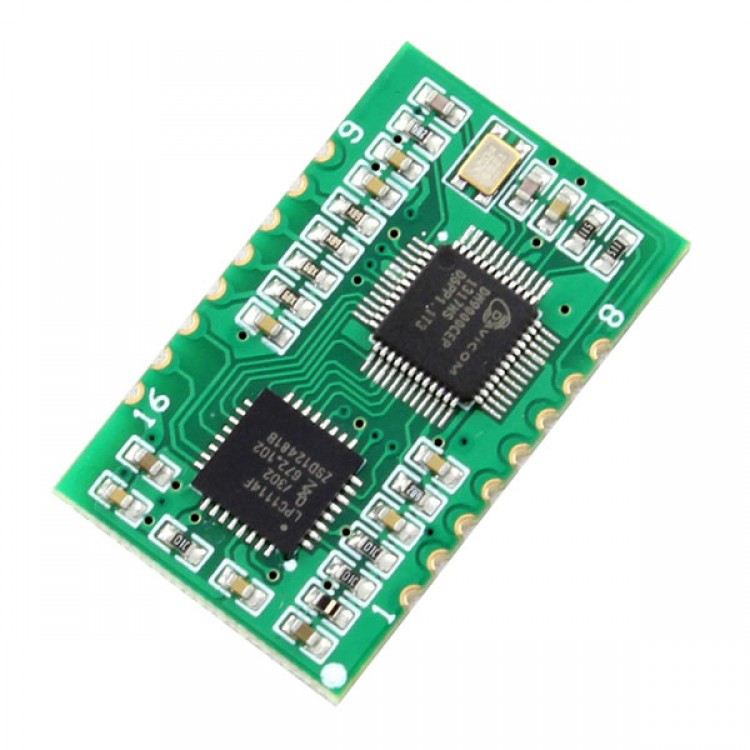

Paste Sealed Serial Port to Network Port Module TTL to RJ45 Module Flushbonading Application
Functions:
- Support AUTO MDI/MDIX
- Serial port baud rate can reach 300-230400bps
- Working mode can choose TCP Server, TCP Client, UDP working mode, UDP broadcasting mode
- Working mode, target IP address and terminal can all be set
- Automatic connection with network after cut off, guarantee the reliable TCP connection
- Flexible serial port data frame setting
Features:
- 32 bits ARM CPU
- Serial port RS232/ RS485/TTL ×1 TXD、RXD, G D
- Serial port rate: max 3Mbps, can set from 2400 to 256kbps
- Agreement: ETHER ET, ARP, IP, UDP, TCP, DHCP, DNS
- Tool software: module software, TCP/UDP testing tool, serial port testing software
- Configuration mode: serial port
- Power supply: input power supply: 3.3V DC/ 5V DC
- Parameters: size: 33*20*3.2mm
- Working temp: industrial: -25---75degree
- Storage environment: -40~85°C, 5~95%RH
