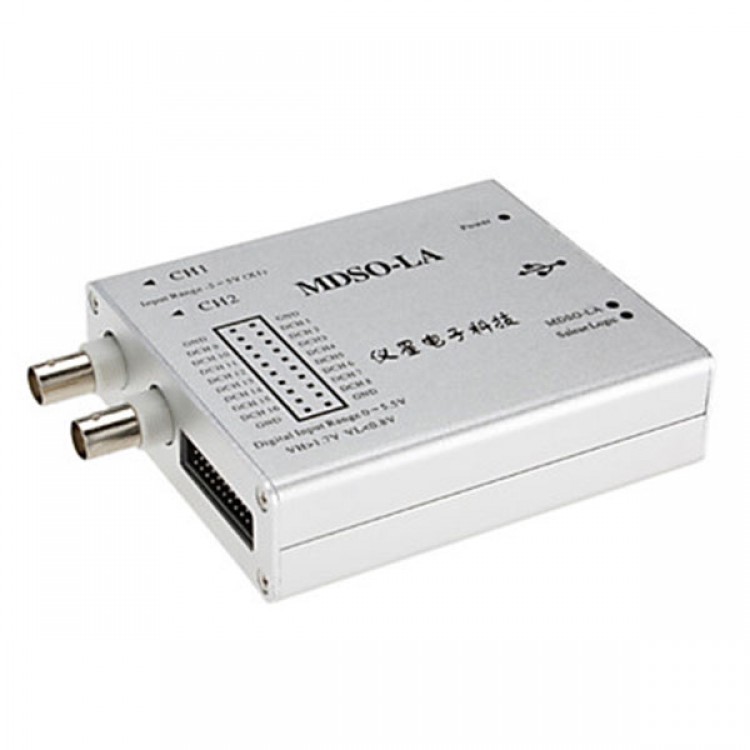

PC USB Digital Oscilloscope 20M 48Msps 2 CH 1MB/CH Data Logger Logic Analyzer

 Oscilloscope features:

- Number of channels: 2;

- Sample rate: 48MHz;

- Memory depth: 1M;

- Voltage resolution: 1V/256;

- High-speed USB 2.0 data transmission;

- Minimum measuring signal input:-50V (with probe X10);

- Measurement signal input: +50 V (with probe X10); (Probe X1 stalls, testing peak Peak 10V signaling)

- Maximum measurement frequency (ideal): sine-15MHz square wave-5MHz;

- Measured values (according to the sampling theorem, theory 48MHz, but because of the increased frequency of testing, resulting in fewer sampling points, there will be distortion waveform restore)

- Software trigger: rising, falling, rising / falling edge, differential, rise + differential;



Data logger features:

- Number of channels: 2;

- Data storage format: OSC files, CSV files (you can use Excel to directly open);

- Sampling rate range: 0.25MHz-24MHz (specific sampling rate is determined by the computer);

(Probe X1 stalls, testing peak Peak 10V within the signal to meet the commonly used voltage range)

- Minimum measuring signal input:-50V (with probe X10);

- Measurement signal input: +50 V (with probe X10);

- Consecutive stored waveform, and to support the global scaling and mobile viewing;

- Supports repeatedly recorded data at the same time to load, easy waveform.



Logic analyzer features:

- Logic analyzer-1:

- Number of channels: 16 (DCH1-DCH16);

- Sample rate: 0.25M-24MHz;

- The memory depth: Determine the size of the computer's hard drive;

- Can be continuously stored data, and support global, zoom, and mobile viewing.

Logic analyzer-2:

- Number of channels: 8 (DCH1-DCH8);

- Sample rate: 0.025 M-24MHz;

- Memory depth: Determine the size of the computer's hard drive;

- Can be continuously stored data, and support global, zoom, and mobile viewing.

- Support for protocol analysis: SPI, I2C, CAN, UART, I2S/PCM, the DMX-512, Manchester, 1-WIRE, the Simple of Parallel, UNI / O;



Software features:

- Can save waveform;

- Start, pause functions;

- Move the cursor to measure the voltage and time;

- Measured signal frequency, the average peak to peak display;

- Convenience of Windows imitation of the kind of man-machine interface;

- Through the software interface to a variety of switching operations; (time scale, voltage scale, closed and open channels, etc.);

- With the saved waveform zoom in and out of the window to the selected part of the observation function;

Support any multi-screen display to facilitate the diverse analysis of the waveform; support the input waveform hardware and software triggers; support the interpolation of the input waveform and equivalent sampling; support of the input waveform "add", "subtraction" and "phase Multiply synthesis; Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss, dolph_chebyshev 18 kinds window support plus the input waveform; support filtering of the input waveform; support of the input waveform Lissajous Ru graphics "," amplitude-frequency "," frequency "," logarithmic amplitude-frequency power spectrum, the logarithmic power spectrum, self-and cross-correlation analysis; support in logarithmic coordinates, the input waveform amplitude-frequency "," frequency "and" several pieces of frequency, power spectrum, on the number of self- power spectral analysis.



Package included:

- Main Device*1; (Dimensions: 10cm * 9cm * 3cm)

- USB 2.0 extension cable*1;

- 40 M standard oscilloscope probe*2;

- Logic analyzer test clip *20;
