PCB Board Onboard in-circuit Repair V/I Tester VI Curve TesterCompatible with TR210 200 Tracker

Availability: In stock, usually dispatched in 1 business day

  • Price:$316.24
  • Price in reward points: 3162 Reward Points: 32
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $309.92 $303.59 $294.10 $281.45 Contact US
Quantity:

PCB Board Onboard in-circuit Repair V/I Tester VI Curve Tester Compatible with TR210 200 Tracker


Description:
- Electronic circuits Detect Tester Meter Maintenance On-line In-Circuit V/I Test
- Compatible  with Huntron200 Tektronix tr210

Feature:
- The item is an accessory to an oscilloscope which allows power off
troubleshooting of electronic circuits by using the technique of Analog Signature
Analysis.
- This signature shows the V/I characteristics of an electronic device which when
compared with a known good device, can assist in locating faulty components of
a circuit without applying power to the board under test. This technique of
troubleshooting simply involves the visual comparison of circuit signatures
which can assist in isolating circuit failures due to opens, shorts, device leakage,
ESD damage, power supply over-voltage and transients.

Specification:
- Electrical (continued):
- Power Requirements:
- Line Voltage 100/115 VAC or 230 VAC
- Frequency 50 Hz to 60 Hz
- Power 15 W maximum
- Line Fuse 100/115 V: 5 mm x 20 mm, T160 mA, 250 V
- (IEC127-2/III, type GDC)
- 230 V: 5 mm x 20 mm, T160 mA, 250 V
- (IEC127-2/III, type GDC)
- Mechanical
- Dimensions 11.5” W x 2.7” H x 10.2” D
- (29.1 cm W x 6.9 cm H x 25.9 cm D)
- Weight 4.6 lbs (2.1 kg)
- Shipping Weight approx. 7 lbs (3.0 kg)
- Environmental
- Indoor Use
- Altitude <2000m (<6560')
- Temperature
- Operating 0°C to +40°C (32°F to 104°F)
- Storage -50°C to +60°C (-58°F to 140°F)
- Relative Humidity < 80% up to 31°C,
- derated linearly to 50% at 40°C

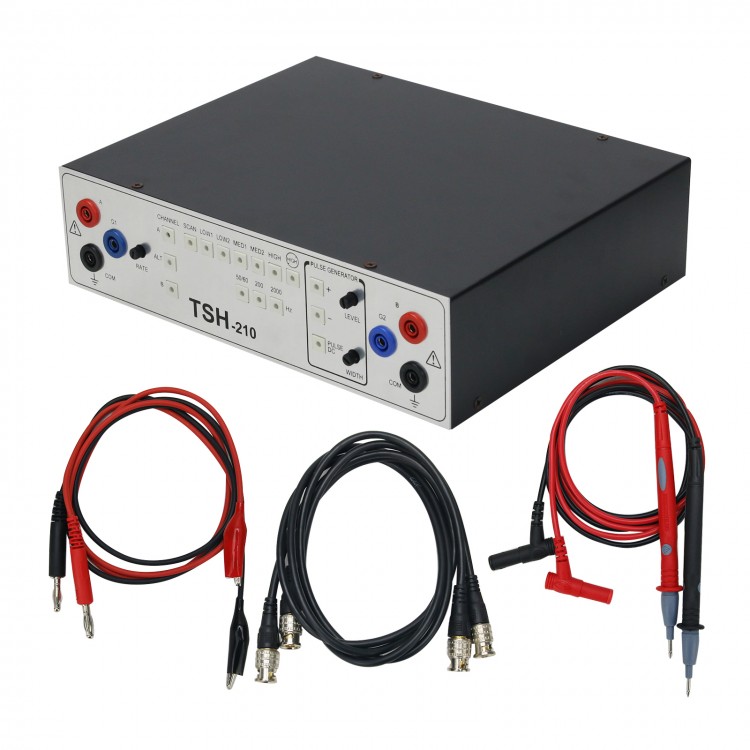

Package:
- 1 PC Host
-  1 pair of high-quality leads victory
- 1 pair of silicone test lead banana head
- 1 PC BNC cable
