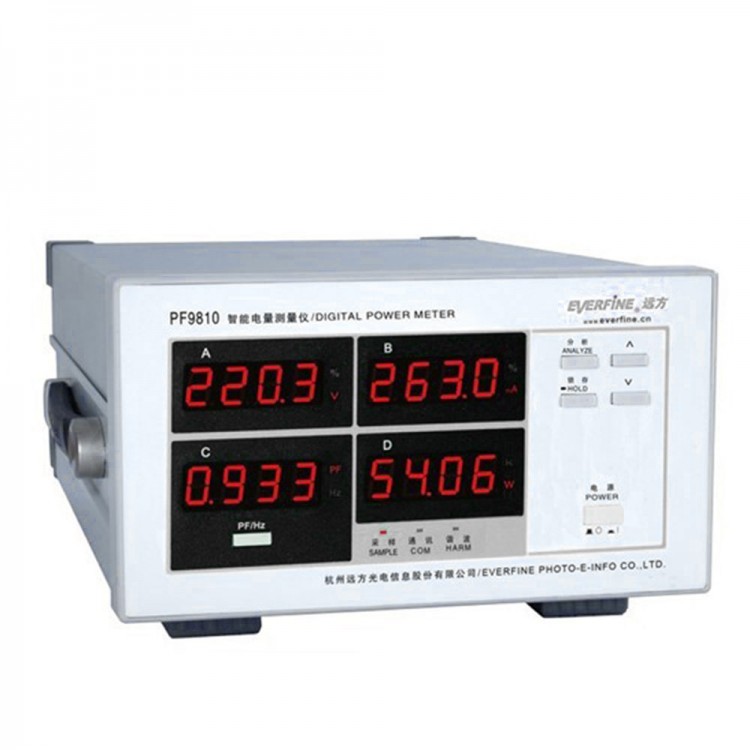

PF9811 Digital Power Meter THD Total Harmonic Distortion Analyzer Multimeter Tester for V A W PF Hz THD CF

Availability: In stock, usually dispatched in 1 business day

  • Price:$623.33
  • Price in reward points: 6233 Reward Points: 62
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $610.86 $598.40 $579.70 $554.76 Contact US
Quantity:

PF9811 Digital Power Meter THD Total Harmonic Distortion Analyzer Multimeter Tester for V A W PF Hz THD CF

Description:

Besides the fundamental measuring function, PF9810 can realize the THD (Total Harmonic Distortion) analysis. By adopting the advanced PLL (Phase-Locked Loop) technology, it can calculate THD and sub-harmonic of voltage and current that meet the requirements of IEC61000-3-2. The actual waveform and frequency spectrogram can be observed on the computer.Model

Specification:

- Model: PF9811
- 4 displays: V, A, W, PF/ Hz/THD/CF
- Voltage:3.0V~600V
- Current: 5mA~20A
- Range switch:Auto
- PF: -1.000~+1.000
- Frequency: AC:45Hz~65 Hz, Band 5kHz
- Accuracy: -+(0.4%reading+0.1%range+1digit)
- Harmonic analysis:Measure the THD and 2nd~50th sub-harmonic of Voltage and Current
- Communication: RS-232 interface
- Dimension: 384*248*147mm

Package included:
- 1 x Meter
