Description
PICkit3 is an online simulation and download the PIC development tools!
PICkit3 is an online collection of Microchip simulation for beginners to learn, evaluation, and development of PIC series MCU is designed and developed for the integration of tools download
PIC Series MCU connected through ICSP interface and PICkit3
Support software
Direct support for Microchip's official IDE (integrated development environment software) MPLAB
Supported devices
Support all ICSP interface with the PIC series microcontroller

Support for PICKIT3 IC, by MPLAB IDE v8.92

Open the software, configure->select in front of device PICKIT3 is light support.
8-bit Devices - PIC10F/12F/16F
PIC10F/12F/16F5X
PIC16F6xx
PIC16F7XX
PIC16F8XX
PIC16F9XX
PIC16F1XXX
8-bit Devices - PIC18F
PIC18CXX/FXX
PIC18F1XXX
PIC18F2XXX/4XXX/6XXX/8XXX
PIC18FXXJ
PIC18FXXK
16-bit Devices
DsPIC30F/33F, PIC24F/H
32-bit Devices
PIC32MX
The function, performance
Programming function: can write FLASH ROM, EEPROM etc..
The simulation function: support to run at full speed, single step debugging, debugging breakpoints and other debugging method.
Simulation: simulation, using the USB interface single step debugging, debugging breakpoints, fast reaction speed!
Performance: the use of USB programming interface, ICSP download, Download speed!
The USB interface is connected with a PC machine
The development tools of PICkit3 drivers, USB communication to achieve high speed.
Connected to target board
The ICSP standard interface specified by the PICkit3.
Firmware upgradeable
The future, Microchip will introduce more PIC models, the device will also add a new device models into ICSP support list, when you upgrade kit3 on the need to use the new model, the future development, upgrade the firmware program, will be able to support the new model!
Upgrade for automatic upgrade, Microchip company will provide the upgrade program.

Tools
PICkit 3 programmer / debugger is a in the Windows ® platform running on the MPLAB IDE (v8.20 or higher) software PC control of simple and low cost online debugger.
PICkit3 FLASH chip of Microchip PIC10/12/16/18/24/32, dsPIC30/dsPIC33 all series PIC online programming and debugging. And the PICkit3 to the Microchip KEELOQ series HCS chip, MCP250xx CAN series chip, EEPROM memory chip programming.
PICkit3 PICkit2 has more stable support simulation, models, the advantages of fast, stable support for the PIC16 PIC18 PIC24 DSPIC series of MCU simulation and download.
The hardware development environment
Through the PICkit3 download link "PIC target board" and "PC", the establishment of a complete hardware and software environment, for programming, simulation of the target chip:

Because the ICSP interface PIC only a row of 6PIN port, so PICkit3 connected to the PIC target board needs to pay attention about the direction of connection, please do not insert, download so as not to burn the PICkit3.

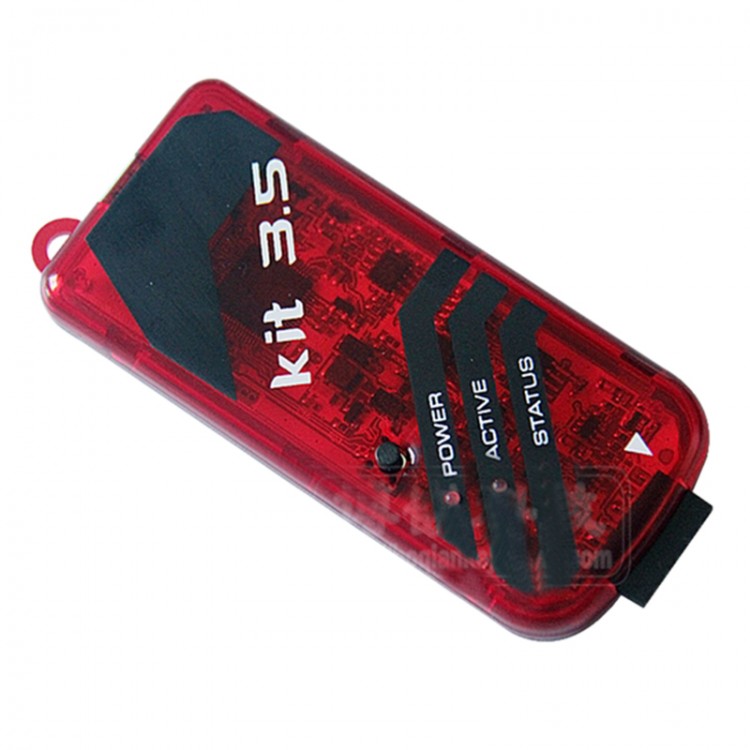

PICkit3 LED indicator of the state
Indicating lamp has the following meanings:
Power:
Green, at the beginning of power on or in connection with the target plate light.
Active:
Blue, light on the PICkit 3 has been to establish communication with the PC or send / receive command.
Status:
Green, the normal work in the debugger (standby) lit when.
Yellow light, the operation is busy.
The red light, the debugger failed.

Basic attributes
PICkit3 is an online simulation and the development tools download PIC!
PICkit3 is PIC for beginners learning, evaluation, development series MCU, and the design of the -line simulation and download for the integration of development tools
PIC series single-chip microcomputer by ICSP interface connected to the PICkit3

Support the software
Direct support official IDE (integrated development environment software) MPLAB
Supported by the device
Support all PIC series single chip microcomputer with ICSP interface
Support for PICKIT3 IC, can get through itMPLAB IDE v8.92   To view the

MPLAB IDE v8.92 download address: www.topsee.com.cn/download/download167.html
In front of the open software, configure - > select device PICKIT3 is green.
8-bit Devices - PIC10F 12 f / 16 / f
12 f / 16 f5x PIC10F /
PIC16F6xx
PIC16F7XX
PIC16F8XX
PIC16F9XX
PIC16F1XXX

8-bit Devices - PIC18F
PIC18CXX/FXX
PIC18F1XXX
PIC18F2XXX / 4/8/6 XXX XXX XXX
PIC18FXXJ
PIC18FXXK

16 - bit Devices
 DsPIC30F / 33 f, PIC24F/H
- 32 - bit Devices
PIC32MX

Functionality, performance
- Programming functions: to burn block write FLASH ROM and EEPROM, etc.
- Simulation functions: support to run at full speed, single step debugging, breakpoint debugging debugging methods, etc.
- Simulation performance: using USB interface to the simulation debugging, single step debugging, breakpoint debugging, fast reaction!
- Program performance: using USB interface to ICSP download, download speed!

PC using a USB connection
- PICkit3 embedded driver development tools, to realize high speed USB communication.
- With the target plate connection interface
- PICkit3 specified ICSP standard interface.
- Firmware upgradeable

Package included:
- 1 x Emulator
