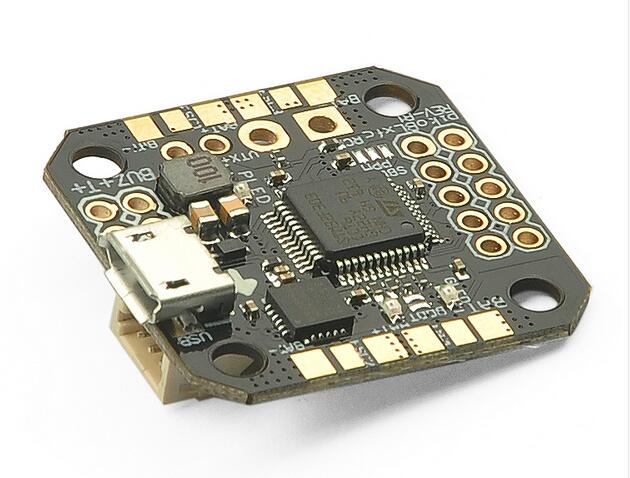

PIKO BLX Micro Flight Controller FC for FPV Quad Race F3 CleanFlight Betaflight
- Designed nothing short of revolutionary, the PIKO BLX Micro Flight Controller changes everything - the true ultimate in the insanity fueled micro FPV racing scene.
- Ultra light, astonishingly small and packed with massive levels of performance capability, the PIKO BLX is the one and only flight controller that is ready & waiting to devastate the micro FPV competition. Unlike any other system available today, the PIKO BLX provides an all in one solution that brings forth the ultimate in simplified sophistication, utilizing industry leading technology that has never been seen in a system this compact.

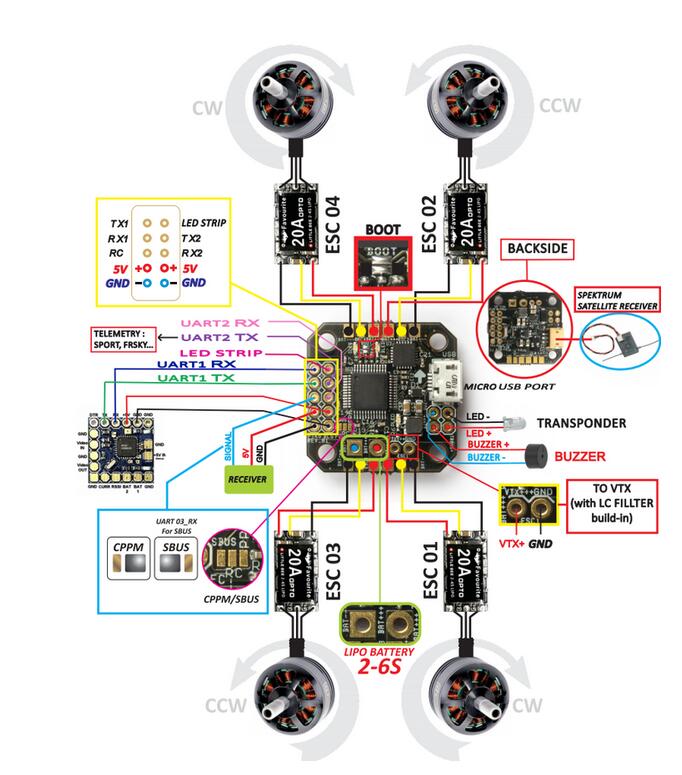

- Cluttered & complex wiring? Never again. With an industry 1st gold plated PDB that is integrated within,the PIKO BLX provides the ultimate in soldering ease with the highest grade of connectivity, allowing direct soldering points for motors, VTx, Receiver and FPV Camera. Simplicity has met its match, and we have yet to get started.
- Utilizing the very latest F3 chip processor with built in CleanFlight & BetaFlight firmware, the PIKO BLX utilizes industry leading components with an included LC filter for the very best in signal reception. Add the 2A 5V BEC with a built in Sbus inverter, and the PIKO BLX stands alone amongst all the rest with a potent blend of race ready madness.
- Specified for micro FPV racing, the ultra small footprint of the PIKO BLX is the perfect fusion of nano racing mania, providing a flight controller experience second to none. This adhesion of performance, capability & simplicity is the apex of nano FPV flight, providing the end user with an FPV experience that brings everything to the table in a zero compromise design.
- For the pinnacle in simplicity, performance and cutting edge capability, the PIKO BLX is the ultimate solution when it comes to the micro FPV world. Get yours today, and change the way you FPV.
- Default shipping Betaflight_3.0.0_PIKOBLX program,customers can updated to 3.0.1 version

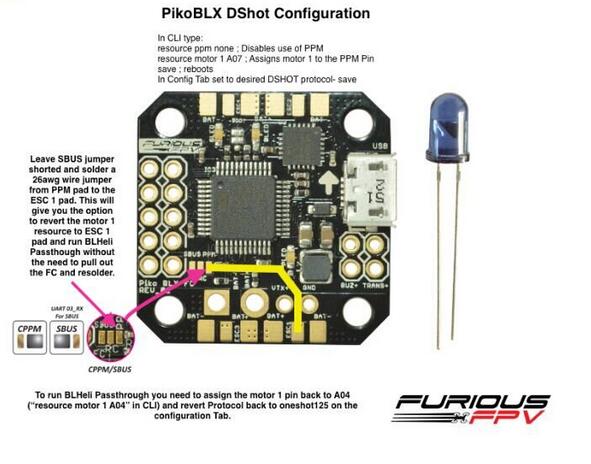

- PIKO has Dshot protocol moto1 motor rotating declear:
Because of Piko flight controller hardware circuit design problems,open the dshot electronic modulation protocol.In default state,Motor 1 not rotating,
you need connect the Motor1 signal wire to the PPM pad and then short circuit SBUS pad.
Features and Capabilities:
- The FIRST and ONLY 20X20mm platform micro flight controller with F3 chip
- The FIRST and ONLY micro flight controller with PDB built-in
- Heavy Duty 2A BEC @ 5V Output Built-in
- LC filter Built-in
- Built In Buzzer
- Gold Plated Pads for the Very Best Connectivity
- Firmware Perfection via CleanFlight & BetaFlight
- Sbus Ready w/ Built In Inverter
- FrSky Telemetry, Ready & Waiting
- Full USB Support
- Mounting Simplicity via 3mm Screws
- Ultra Compact Design for Ease of Installation

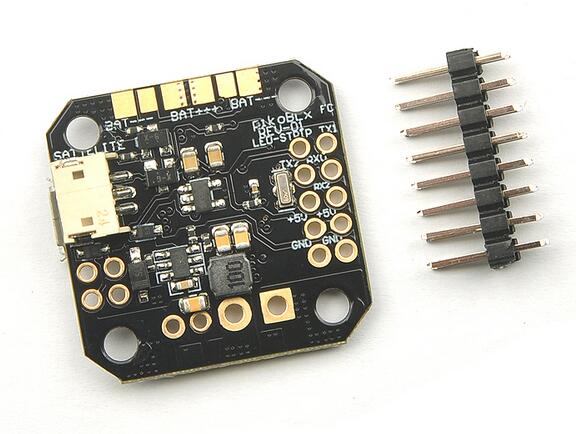

-1 x PIKO BLX Micro Flight Controller FC
