Pixhawk 2.43 Flight Control STM32F4 APM Autopilot Latest Updated Version w/ U-Blox 6H GPS For PIX PXI PX4

Availability: Out Of Stock

  • Price:$236.90
  • Price in reward points: 2369 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $232.16 $227.42 $220.32 $210.84 Contact US
Quantity:

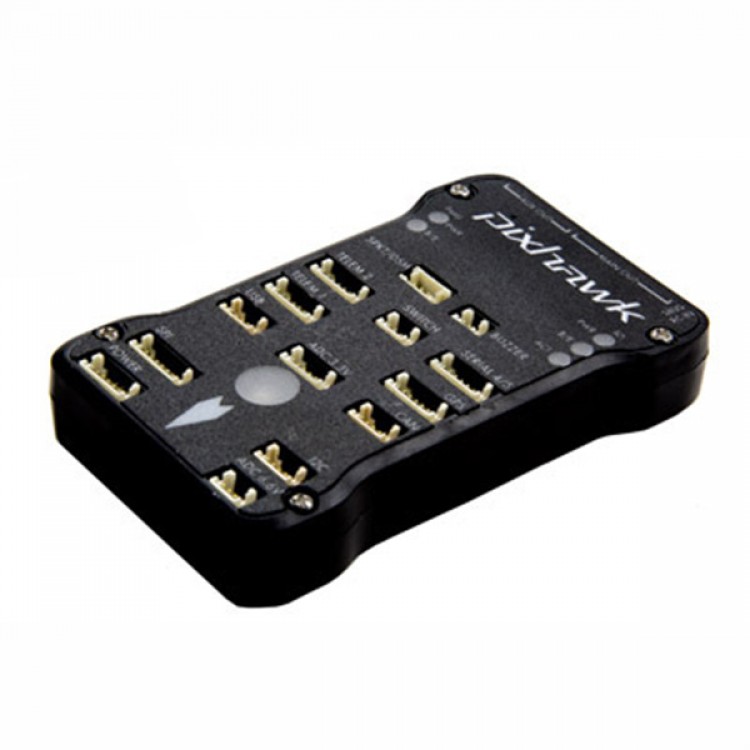

Pixhawk 2.43 Flight Control STM32F4 APM Autopilot Latest Updated Version w/ U-Blox 6H GPS For PIX PXI PX4


Description:
- Brand: Pixhawk
- Item name: Flight Control
- Weight: 38g
- Wide: 50mm
- Height: 15.5mm
- Length: 81.5mm
- PCB: 6 layers turmeric
- Hw Param:
- CPU
- 32-bit STM32F427 Cortex M4,with hardware floating-point processing unit.
- Dominant frequency: 168MHZ,256K RAM,2M Flash.
- 32-bit STM32F103 backup coprocessor.
- Sensor
- ST Company L3GD20 3-axis digital 16-bit gyroscope.
- ST Company LSM303D 3-axis 14-bit accelerated speed/magnetometer.
- Invensense Company MPU6000 3-axis gyroscope/accelerometer.
- MEAS Company MS5611 high precision barometer.
- Port
- 5 UART,1 of them compatible with high voltage,2 of them with hardware flow control.
- 2 CAN
- Spektrum DSM/DSM2/DSM-X satellite receiver compatibleinput.
- Futaba SBUS compatibleinput and output
- PPM signal input
- RSSI(PWM or voltage)input
- I2C
- SPI
- 3.3ADC and 6.6VADC input
- External MICRO USB port
- Power supply system
- With ideal automatic failover diode controller.
- Steering engine: 7V,high current
- All peripherals huve over-current protection, all inputs have ESD protection.

Features:
- Open source flight control
- 32-bit ARM CortexM4 advanced high-performance processor, you can run NuttX RTOS real-time operation system.
- 14 PWM/steering engine outputs (8 of them have security and manual control functions,and others compatible with high power assist them.)
- Rich peripherals (UART, I2C, SPI, CAN).
- Redundant design
- Backup System Integrated mixing functions, provide automatic and manual mixing mode.
- Redundant power inputs and automatic failover.
- External security button makes it easy to start the motor.
- Multicolor LED lights.
- High power,multi-tone buzzer.
- Micro SD,prolonged high rate to record flight data.

Package included:
1 x 2.43 Flight Control
1 x 6H GPS
1 x Pixhawk shell
1 x buzzer
1 x 512MB card
1 x card slot
1 x dupont Line
4 x connecting line
