PIXHAWK 4 Pix 2.4.5Unmanned Aircraft Fixed Wing Flight Control + M8N GPS
  • PIXHAWK 4 Pix 2.4.5Unmanned Aircraft Fixed Wing Flight Control + M8N GPS

  • SKU:35550
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 17
  • Price:$167.50
  • Price in reward points: 1675
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $164.15 $160.80 $155.78 $149.08 Contact US

PIXHAWK 4 Pix 2.4.5Unmanned Aircraft Fixed Wing Flight Control + M8N GPS

Features:
- Advanced 32bits ARM CortexM4 high performance processor, can operate NuttX RTOS realtime operation system
- 14 PWM/ servo output
- Bus interface UART,I2C,SPI,CAN
- Integrates back up battery and failure back up controller, main controller can safely switch to back up control when it is failure
- Providing automatic and manual mode
- Providing redundant power input and error transfer function
- Colorful LED light
- Providing multi sounds buzzer interfaces
- Micro SD recording flying data

Software parameters:
Processor:

- 32 Bits 2M flash memory STMF427 Cortex M4, with hardware float points processing unit
- Main frequency: 168MHZ, 256K RAM
- 32 Bits STM32F103 back up coprocessor

Sensor:
- L3GD20 3 axis digital 16 bits gyroscope
- LSM303D 3 axis 14 bits accelerator/ magnetometer
- MPU6000 6 axis accelerator/ magnetometer
- MS5611 high precision barometer

Interface:
- 5 UART, 1 is compatible high voltage, 2 are with hardware flow control
- 2 CAN
- Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External MICRO USB interface

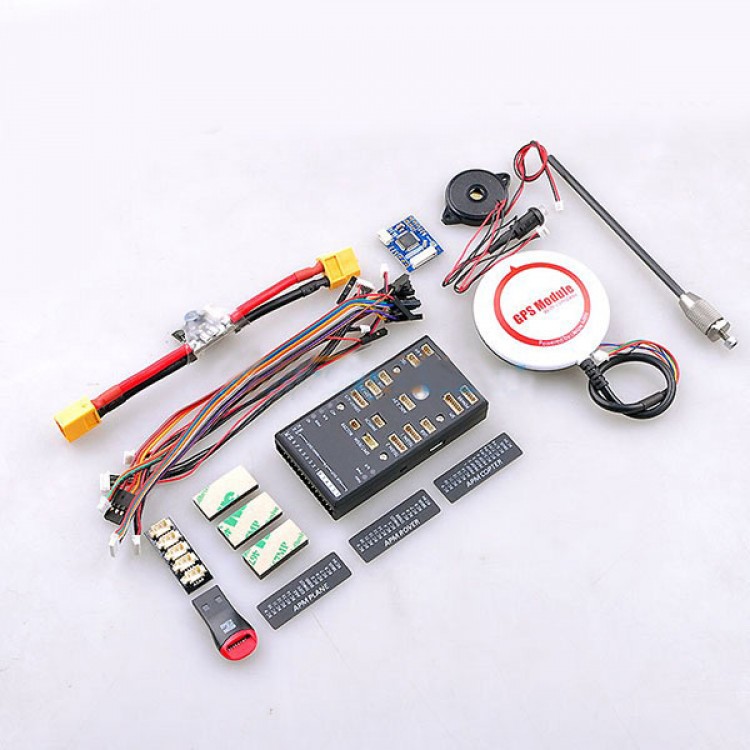

Package list:
- Pix 2.4.5 Flight control and shell x 1
- 10S power module x 1
- Unlock switch x 1
- Buzzer x 1
- 4P to 4P silicone cable x 1
- 6P to 6 P silicone cable x 1
- Mode paste x 3
- TF card reader x 1
- I2C distribution card x 1
- Damper sponge x 4
- Dupont cable x 1
- Micro USB cable x 1
- M8N GPS x 1
